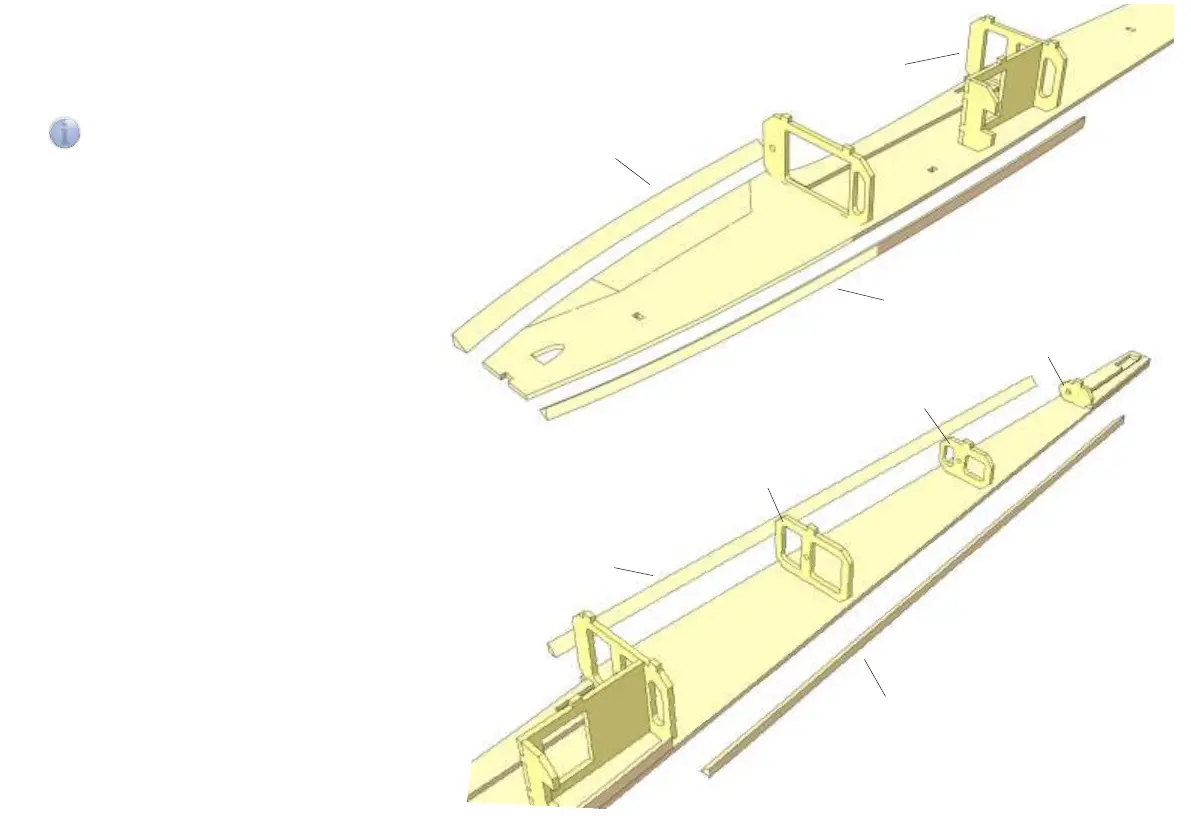

Glue triangular stock R15 on fuselage side along
top and bottom contours as shown and secure
with pins.
Note: Bottom strip ends in front of former R3.
Glue in place canopy frame R17 on fuselage side
along canopy cut-out.
Remove any formers/assemblies from right
fuselage side and build up left fuselage side R1 B
accordingly.
Cut to length four pieces of 6×6 mm
triangular stock R16 for top and bottom
rear fuselage contours.
Temporarily insert formers R9 and R10
into right fuselage side, glue triangular
stock in place and secure with pins.
Remove formers R9, R10, R11.
Glue former R2 as well as assembly R3, R4, R5 in
place on right fuselage side.
Note: R2 is at right angles on fuselage side.
Glue in place battery tray R6, insert and glue wing
retainer R18 in slot in R12.
i
i
R3
R15
R15
R16
R9
R10
R11
R16
R17
R2
R6
R18
R3, R4, R5
R12
To Next Page
