28
29
Cut snake outer R21 to a length of 485 mm and glue into
formers with 5 minute epoxy, so that it protrudes 30 mm from
former R3 and 45 mm from former R11.
Carefully sand top and bottom contact surfaces of fuselage, then
glue in place fuselage sheeting.
Upper and lower nose section sheeting consists of three pieces
each (R22 to R24 and R25 to R27) of 3 mm balsa. Upper rear
fuselage sheeting R 28 is one-piece, lower sheeting consists of
parts R29 and tail skid retainer R50.
Note: Glue in place tail skid
R51 after covering.
30
31

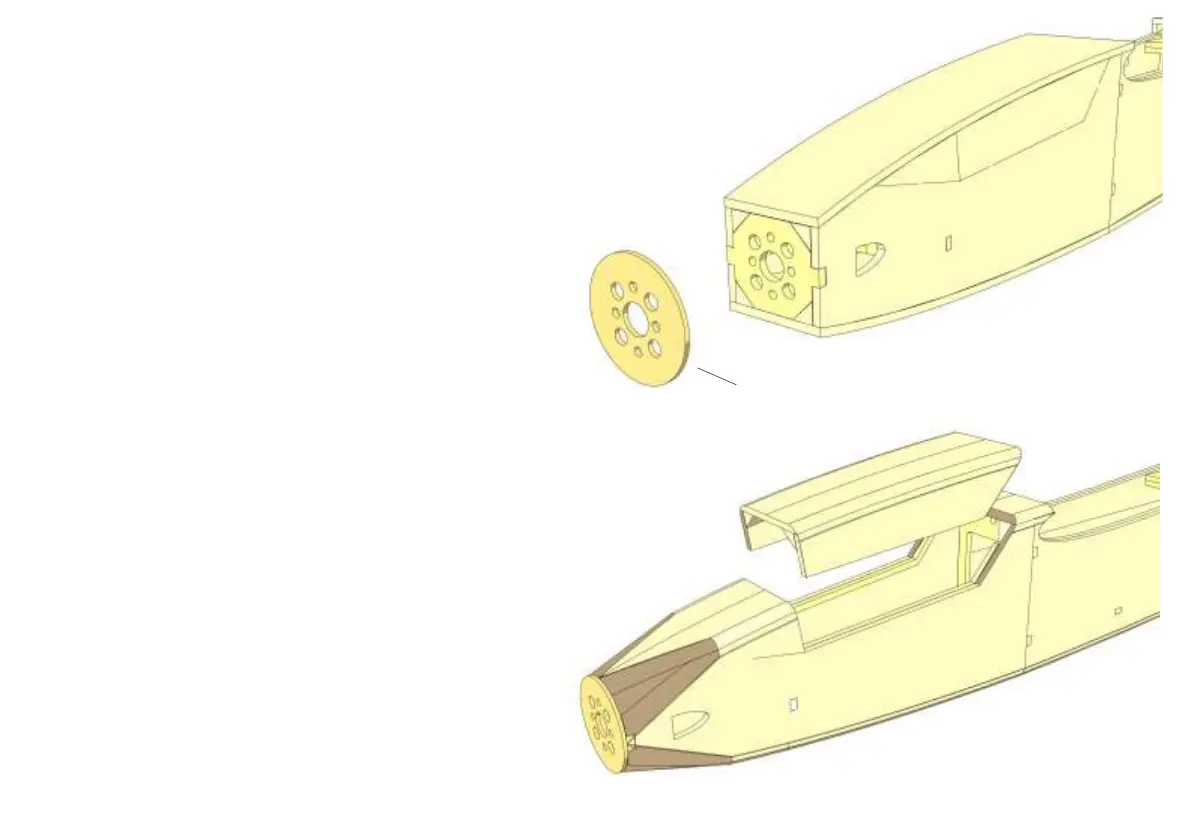

Cut off sheeting material and triangular stock and sand flush with
motor mount. Glue in place motor mount cover R30 (1.5 mm
birch ply). Make sure bores in R19 match bores in motor mount
perfectly.
When glue has dried, sand fuselage to shape and round off edges.
With a razor saw cut out canopy and remove from fuselage. Sand
contact surfaces until canopy rests on fuselage without binding.
R21
R22
R23
R24
R25
R26
R27
R28
R29
R50
R3
R11
R30
