Place tailplane R42 on building board (put cling film under-
neath), secure with pins and glue tips R43 in place. Chamfer
front edge of elevator R44 for sufficient controll throw.
From above glue in place control horn R45 in elevator and sand
front of control horn flush with front edge of elevator.
Glue together fin from parts R46, R47 and R48.
Finally, round off front edges of tail assembly with sanding block.
36
37

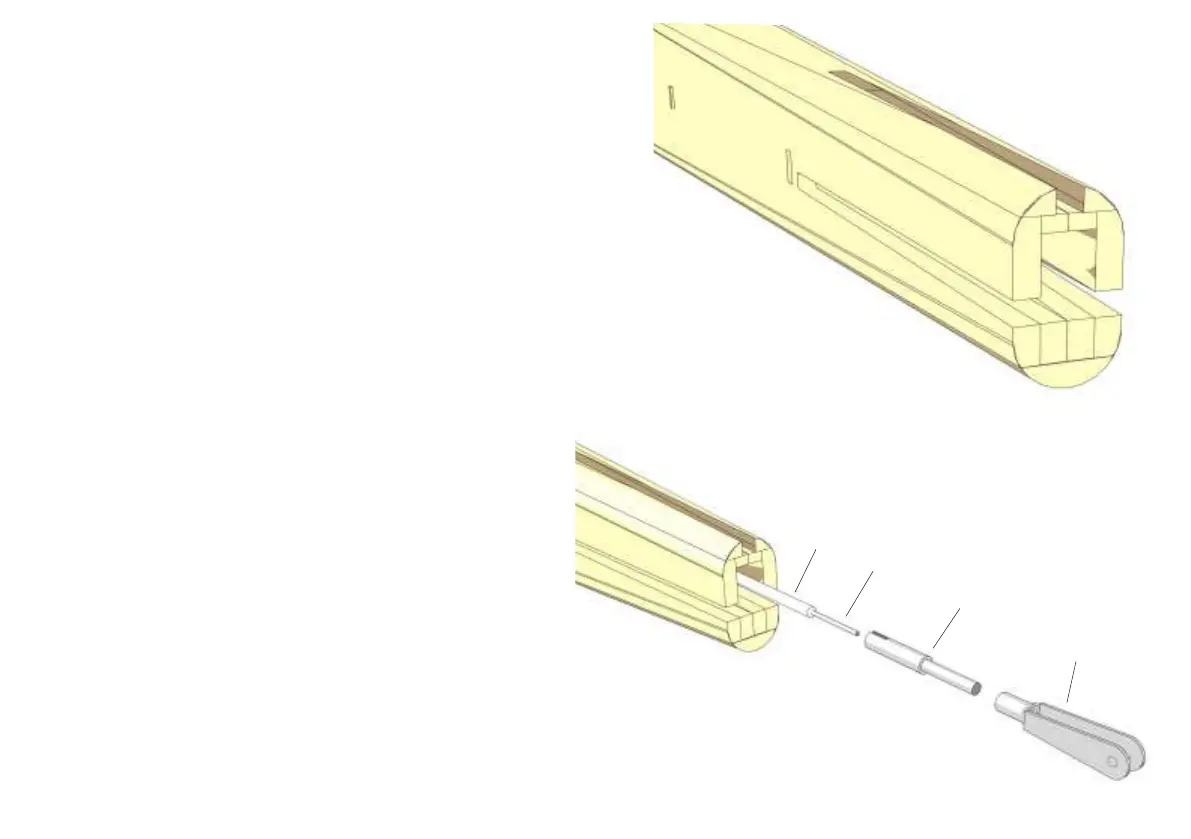

With drill and file make an opening in rear end of fuselage so that
clevis for elevator control can move freely and without binding
(ca. 6 mm wide, 7 mm high).
If necessary, correct opening when elevator control is installed.
Insert 0.8 mm piano wire R38 in snake R39.
Rough up snake at one end, epoxy or crimp clevis extender
R40 to snake and screw on clevis R41.
From the rear slide snake into snake outer. Make sure that
clevis moves freely and without binding between fuselage
sides.
R38
R40
R41
R42
R43
R43
R46
R47
R48
R44
R45
R39
