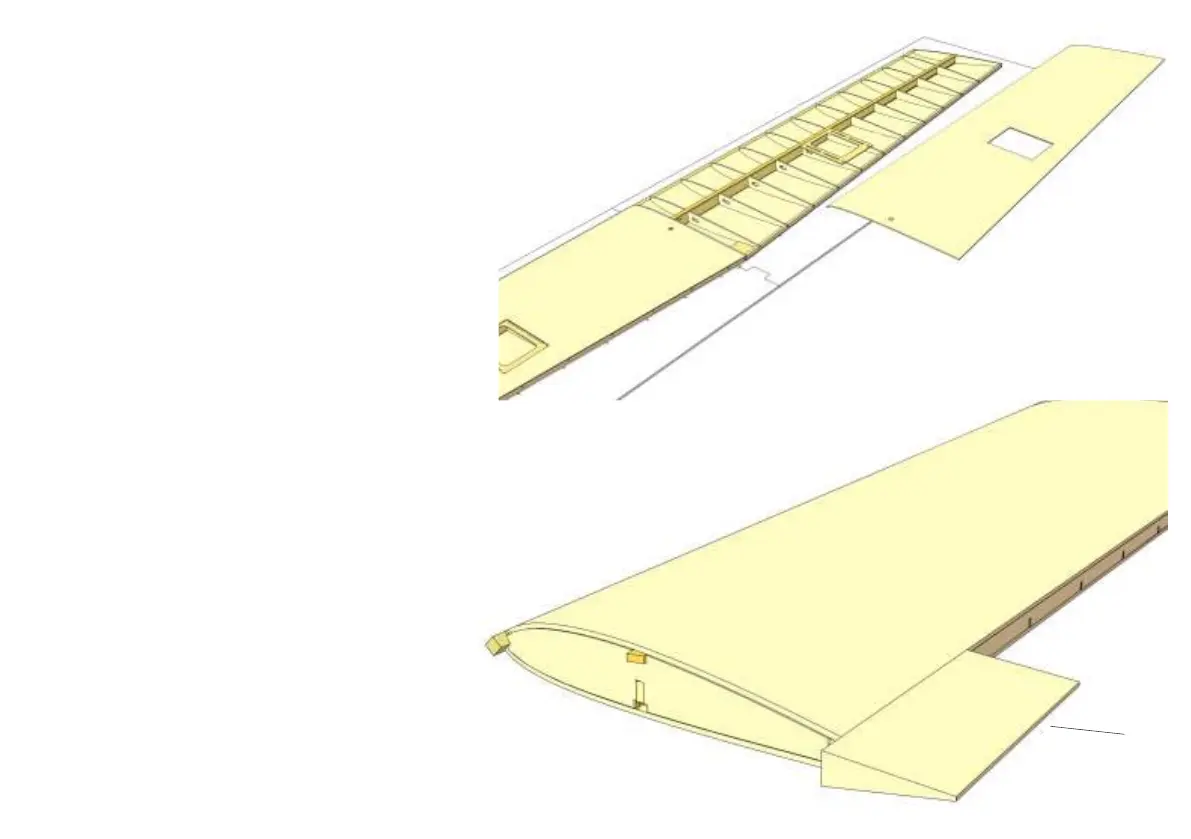

Remove wing from jig and turn upside down. Break off
building tabs and sand lightly to achieve a smooth
contact surface on main spar and ribs.
Install servo leads in wing and secure with tape in servo bay.
Route opposite end of servo leads through hole in lower wing
sheeting and glue wing sheeting in place.
Use same proceedrue as with upper wing sheeting.
Glue in place lower spruce spar F16 and servo frames
F23.
From trailing edge triangular stock (8×40 mm) cut off
two ca. 25 mm long pieces F24, then fit and glue in
place next to centre ribs as shown.
Carefully sand flush rear edge of wing.
Cut off one ca. 80 mm long piece of either trailing edge
triangular stock F25 (8×30 mm) and glue to wing tip as
shown. Make sure that projection of end rib meets with
rear edge of trailing edge profile.
See also following building step.
