4. Sensor adjustment
The aircraft must stand on its landing gear during adjustment of sensor!
4.1. Close the canopy.
4.2. Set the main latch (10, Fig. 9) to the reference position i. e. closely to the entry hole of canopy
lock socket (6).
4.3. Plug-in the main latch (10) 5 ±0.3 mm deep into the canopy lock socket (12) and fix it in this
position.
4.4. By means of adjusting screw (5) and Allen key 2.5 mm (11) adjust the sensor position (12)
to trigger the check lamp in this position of main latch (10).
4.5. After adjustment check the function of system.

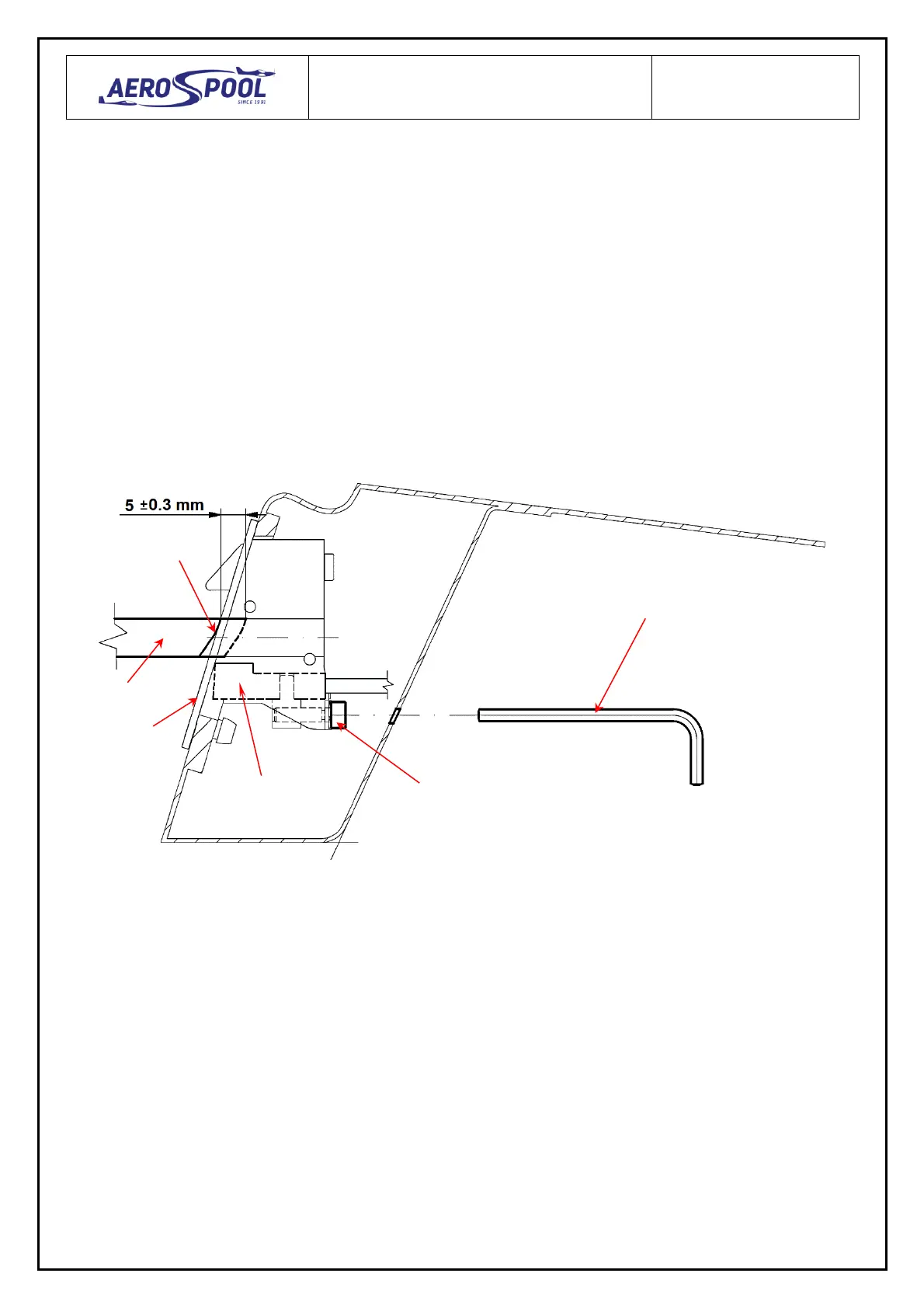

Fig. 9
5
11
10
6
Ref. position
12
