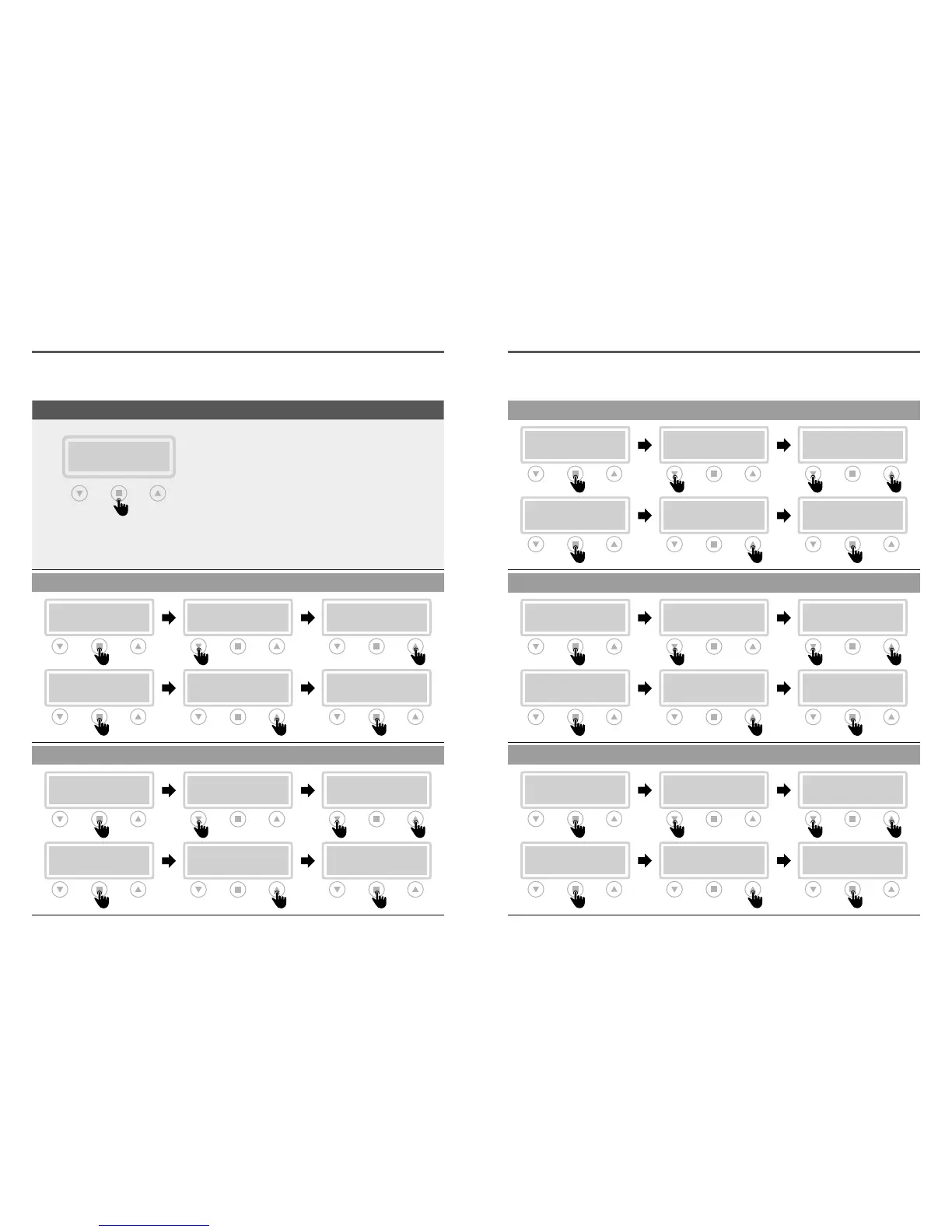

M07 SENSOR (sensor/trasducer 4÷20 mA)
SET PARAMETERS
PARAMETERS
>XXX
M07 SENSOR
>PARAMETERS
>EXIT
M07 SENSOR
>PARAMETERS
>PARAMETERS
OFF
PARAMETERS
>OFF MT/BAR
ACCESS TO FUNCTION MODIFIED PARAMETERS
M06 PROGRAM
>M07 SENSOR
The “SENSOR” function allows to use the control
panel with piezoresistive, piezocapacitive level sensors
or pressure transducers (logic 4÷20 mA).
ATTENTION: Switch off the control panel before
connecting the sensor.
PARAMETERS
Setting unit of measure (mt/bar)
FULL SCALE
Set the full scale value specified by the manufacturer of
the sensor used (serial value 160.0)
MINIMUM LEVEL
Parameter active only with unit of measure in mt
MAXIMUM LEVEL
Parameter active only with unit of measure in mt
START P1 e STOP P1
SET FULL SCALE
FULL SCALE
>160.0
M07 SENSOR
>FULL SCALE
>EXIT
M07 SENSOR
>FULL SCALE
>FULL SCALE
160.0
FULL SCALE
>160.0
SET MINIMUM LEVEL
MIN LEVEL
>005.0
M07 SENSOR
>MIN LEVEL
>EXIT
M07 SENSOR
>MIN LEVEL
>MIN LEVEL
005.5
MIN LEVEL
>005.0
SET MAXIMUM LEVEL
MAX LEVEL
>100.0
M07 SENSOR
>MAX LEVEL
>EXIT
M07 SENSOR
>MAX LEVEL
>MAX LEVEL
100.0
MAX LEVEL
>100.0
PUMP 1 START
P1 START
>XXX.X
M07 SENSOR
>P1 START
>EXIT
M07 SENSOR
>P1 START
>P1 START
010.0
P1 START
>010.0
