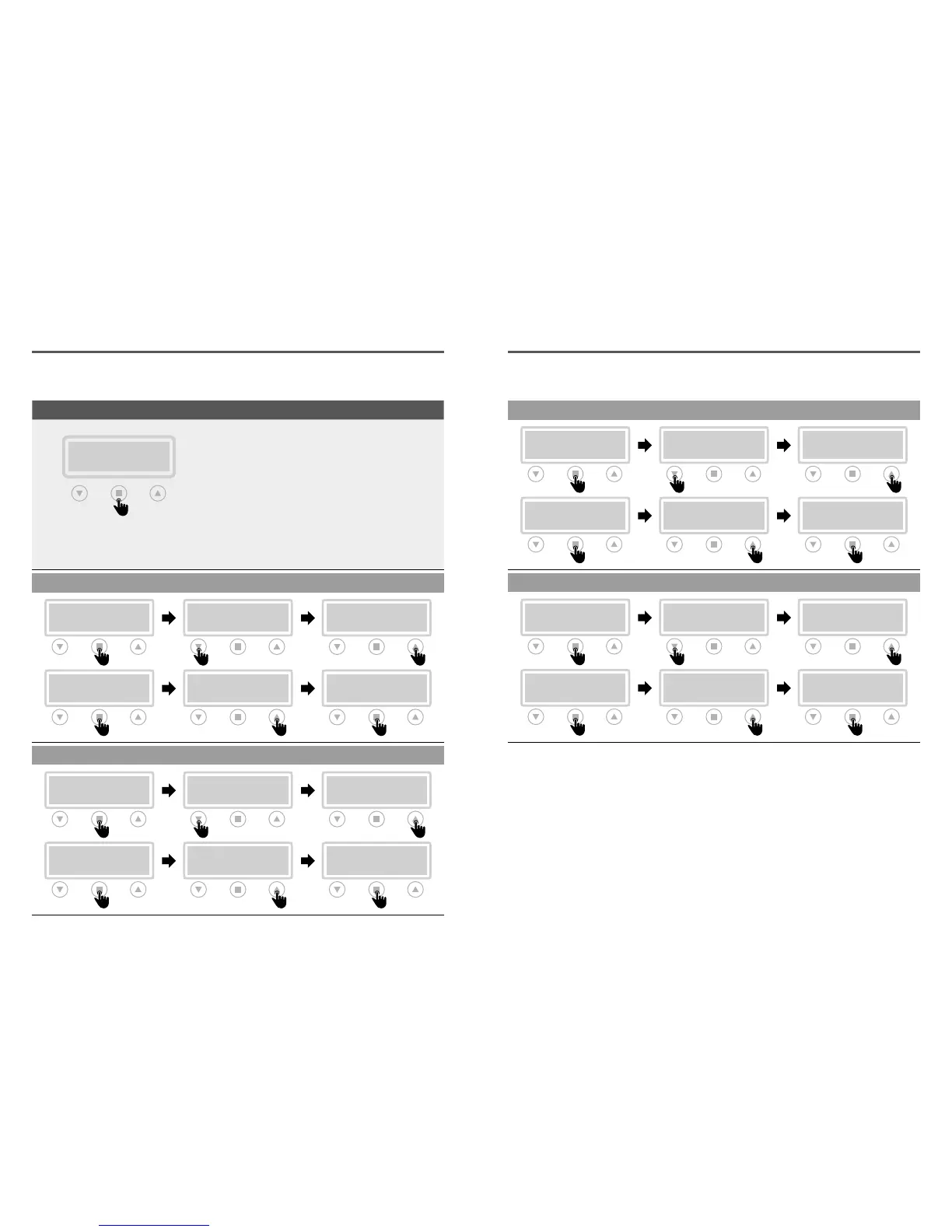

AES EPIC 1D - M06 PROGRAM; SELF HOLDING OPERATION; OPERATION (EMPTY;FILL); TYPE (POTABLE;WASTE WATER)

1918
EPIC 1DEPIC 1D
Installation Installation
OPERATION (EMPTY/FILL)
OPERATION
>FILL
M06 PROGRAM
>OPERATION
>EXIT
M06 PROGRAM
>OPERATION
>OPERATION
EMPTY
OPERATION
>EMPTY
M06 PROGRAM
TYPE (POTABLE/WASTE WATER)
TYPE
>WASTE
M06 PROGRAM
>TYPE
>EXIT
M06 PROGRAM
>TYPE
>TYPE
POTABLE
TYPE
>POTABLE
ACCESS TO FUNCTION MODIFIED PARAMETERS
M04 PUMP 1
>M06 PROGRAM
SELF HOLDING OPERATION
If the self holding is ON and the water level is going
up, G1 is up, G2 goes up and starts pump 1. If the
water level is going down, G2 goes down but it does
not stop pump 1, G1 goes down and stops the pump.
OPERATION
Emptying selection “EMPTY” or filling ”FILL“
TYPE
Selection of clear or dirty water types
SELF HOLDING
Mostly used for waste water applications: 4 floating
switches has been used (G1 stop the pump, G2 start
pump 1, G4 max level alarm and start the pump)
BMS (remote emergency start/stop)
Possibility to start/stop the control panel by remote button
SELF HOLDING
SELF HOLDING
>OFF
M06 PROGRAM
>SELF HOLDING
>EXIT
M06 PROGRAM
>SELF HOLDING
>SELF HOLDING
ON
SELF HOLDING
>ON
BMS SETTING
BMS
>ON
M06 PROGRAM
>BMS
>EXIT
M06 PROGRAM
>BMS
>BMS
OFF
BMS
>OFF
