Installation Installation
TIMER T1 OFF
timer t1 off
>xxxx min
M08 TIMER
>timer t1 off
>USCITA
M08 TIMER
>timer t1 off
>timer t1 off
0000 min
timer t1 off
>0000 min

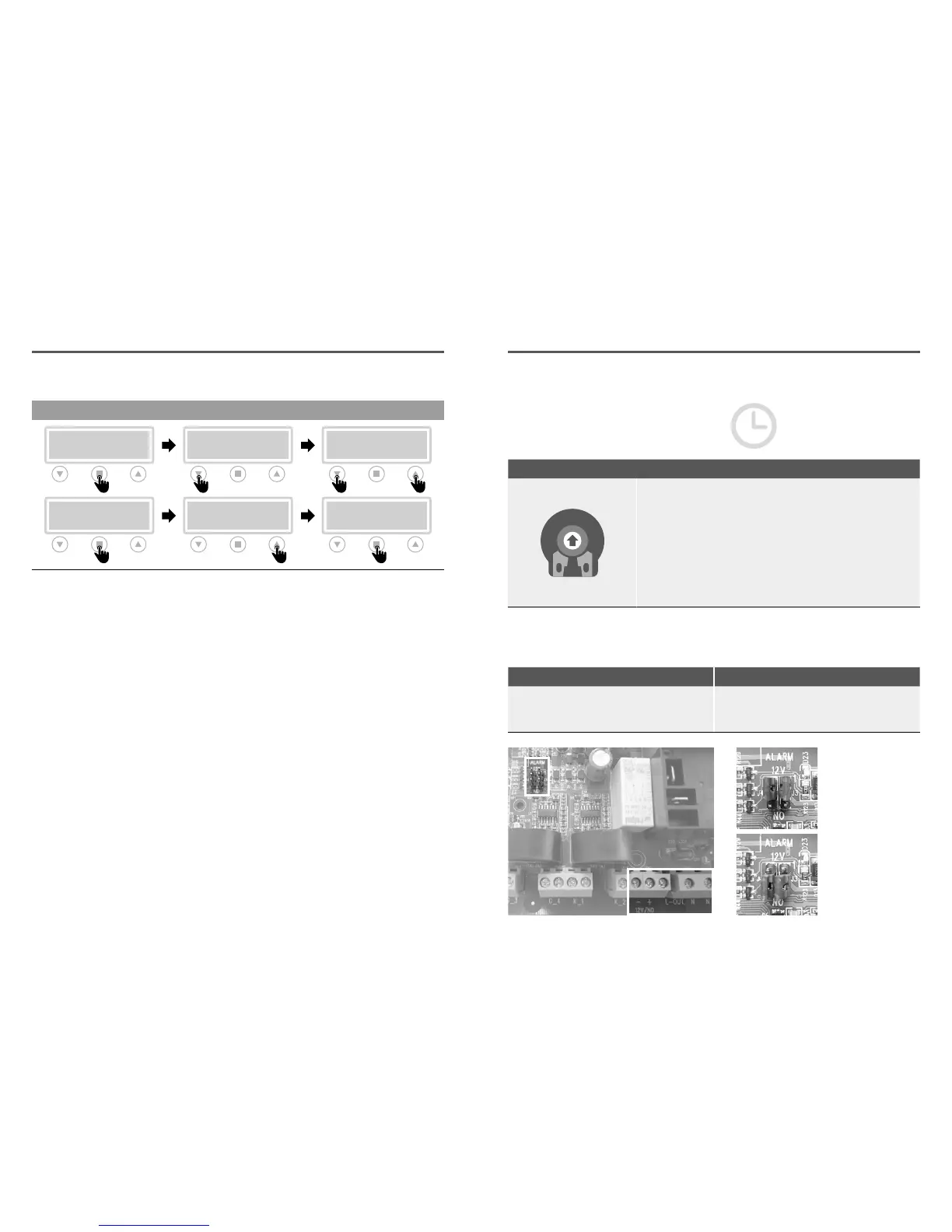

3.5 TRIMMER SETTINGS
TRIMMER SETTING
+ –
TRIMMER 1: PROBE SENSITIVITY CHANGE
Probe sensivity (CLC) and water in oil chamber sensor trimmer
regulation.
It is possible to change the sensitivity of the CLC probes and the
water sensor in the oil chamber, interrupting the power supply
to the control panel and acting on trimmer 1 (clockwise to
increase and counterclockwise to decrease sensitivity).
3.6 ALARM CONTACT OUTPUTS
SINGLE PHASE VERSION TREE PHASE VERSION
Alarm outputs:
• L-OUT / N = 230 V c.a.
• + -12 / NO = 12V c.c. or contact NO
Alarm outputs:
• L-OUT / N = 400 V c.a.
• + -12 / NO = 12V c.c. or contact NO
12 V c.c. output
free contact NO
To change manually the threshold protections,
interrupt the power supply to the control
panel and work on the trimmers, please
following the below instructions:
PROTECTION DELAY
The pump protection switching
delay has been set at 5 sec.
