3.'Assembly'9'ConXnued'

4)'Splice'Joint'InstallaXon.'

A)  If'the'layou t'calls'for'splice'joints,'

slide'one'splice'joint'assemblies'

into'each'side'channel'of'the'rail.'

B)  PosiXon'the'splice'joint'

assemblies'so'half'is'covering'

each'of'the'maXng'rails.'

C)  Using'a'3/8”'socket'with'ratchet'

or'driver,'torque'the'two'¼920'

bolts'per'Splice'Joint'Assembly'to'

10'in/lb.'

D)  Using'a'1/8”'Allen'wrench,'torque'

the'two'set'screws'per'Splice'

Joint'Assembly'unXl'they'dig'into'

the'Support'Rail.''

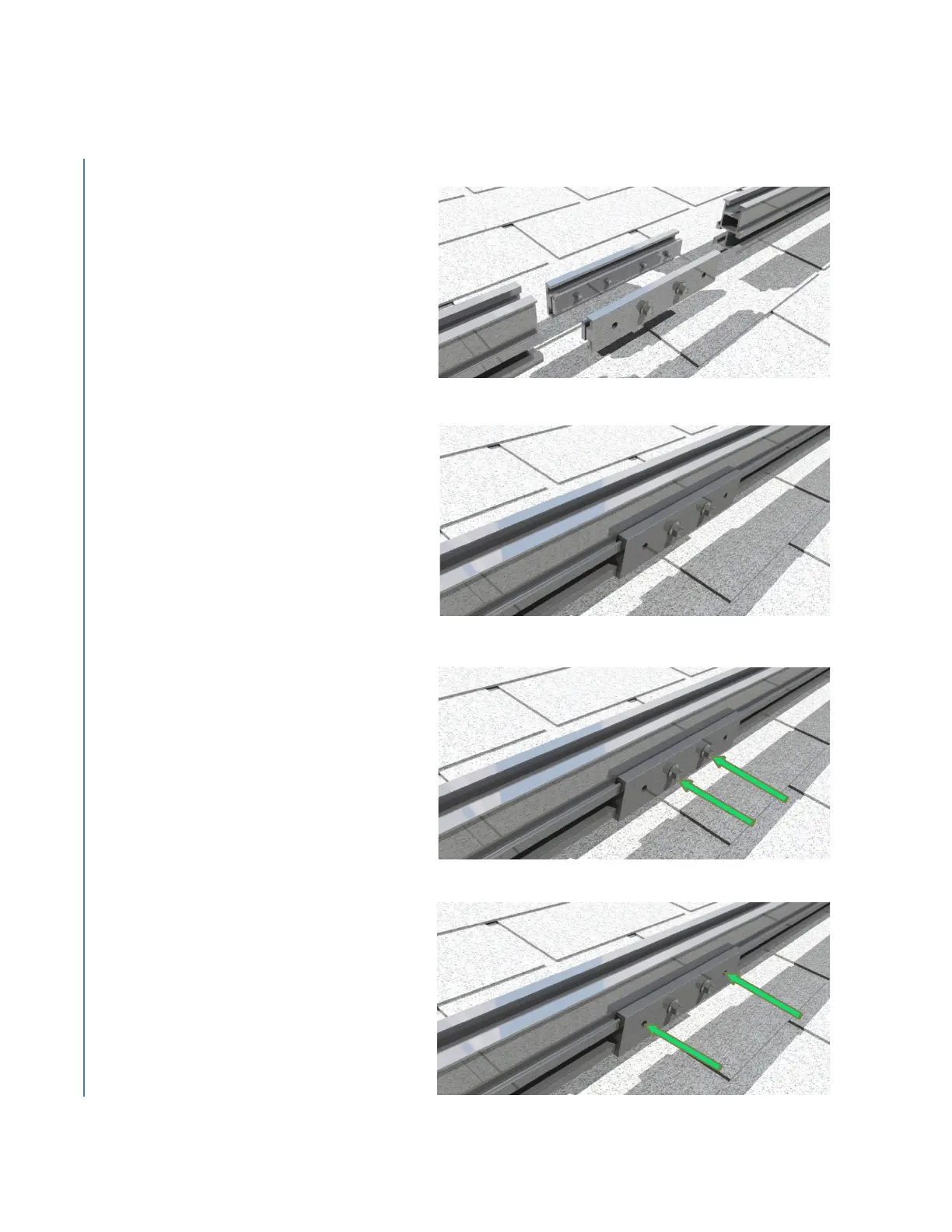

A)'slide'one'splice'joint'assemblies'into'each'side'

channel'of'the'rail.'

B)'PosiXon'the'splice'joint'assemblies'so'half'is'covering'

each'of'the'maXng'rails.'

C)'Using'a'3/8”'socket'with'ratchet'or'driver,'torque'the'

two'¼920''bolts'per'Splice'Joint'Assembly'to'10'in/lb.'

D)'Using'a'1/8”'Allen'wrench,'torque'the'two'set'screws'per'

Splice'Joint'Assembly'unXl'they'dig'into 'the'Su pp ort'Rail .'
