AEV Stargate - Page 10

AEV STARGATE
Futurcom Srl via della Tecnica 35, 40050 Argelato Bologna ITALY
10

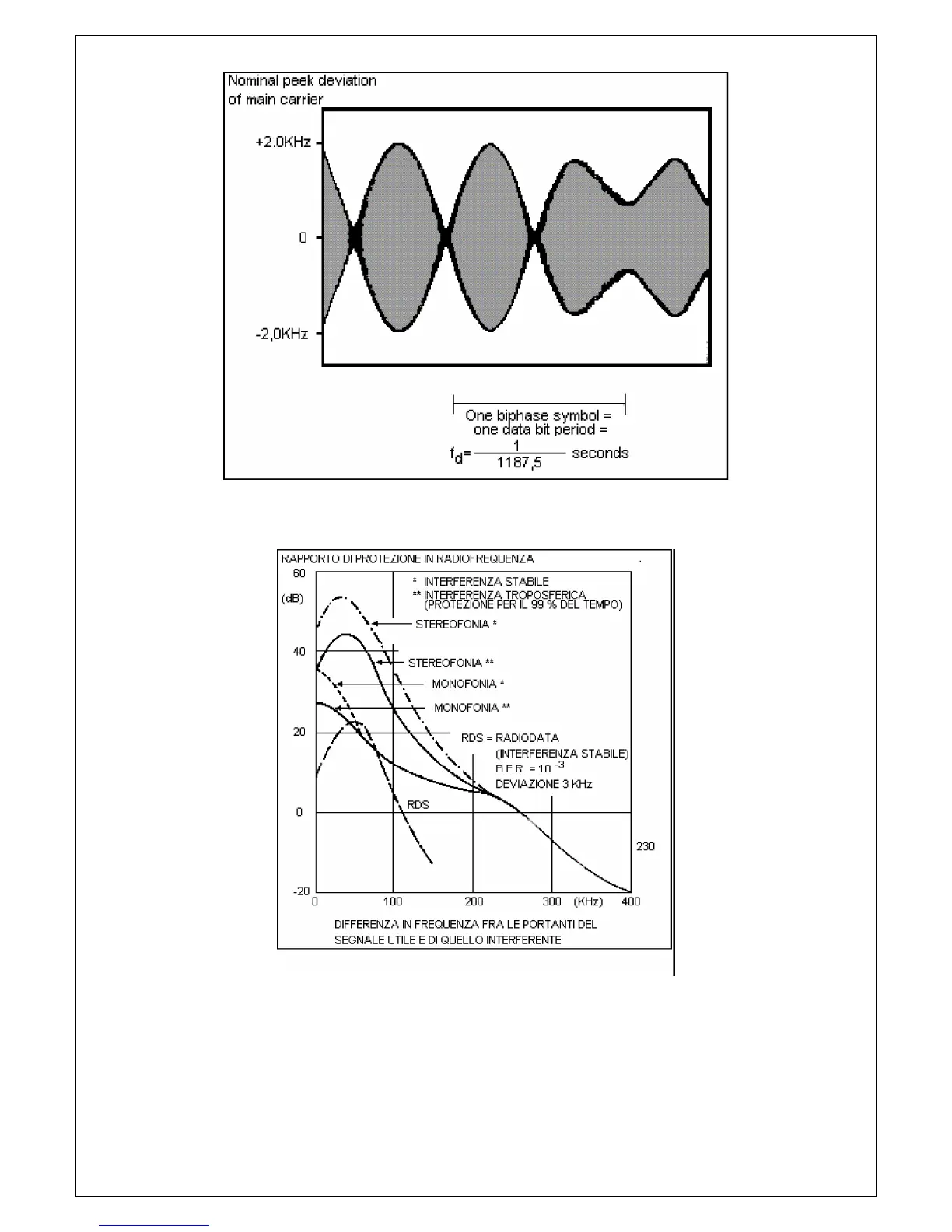

Figure 3
The system satisfies the protection ratios specified by the CCIR for mono and stereophonic
transmissions.
Figure 4
Protection ratios for FM radiophony (max. deviation: ± 75 KHz)
Fig.5 shows the protection ratio curves for the three services.
