30

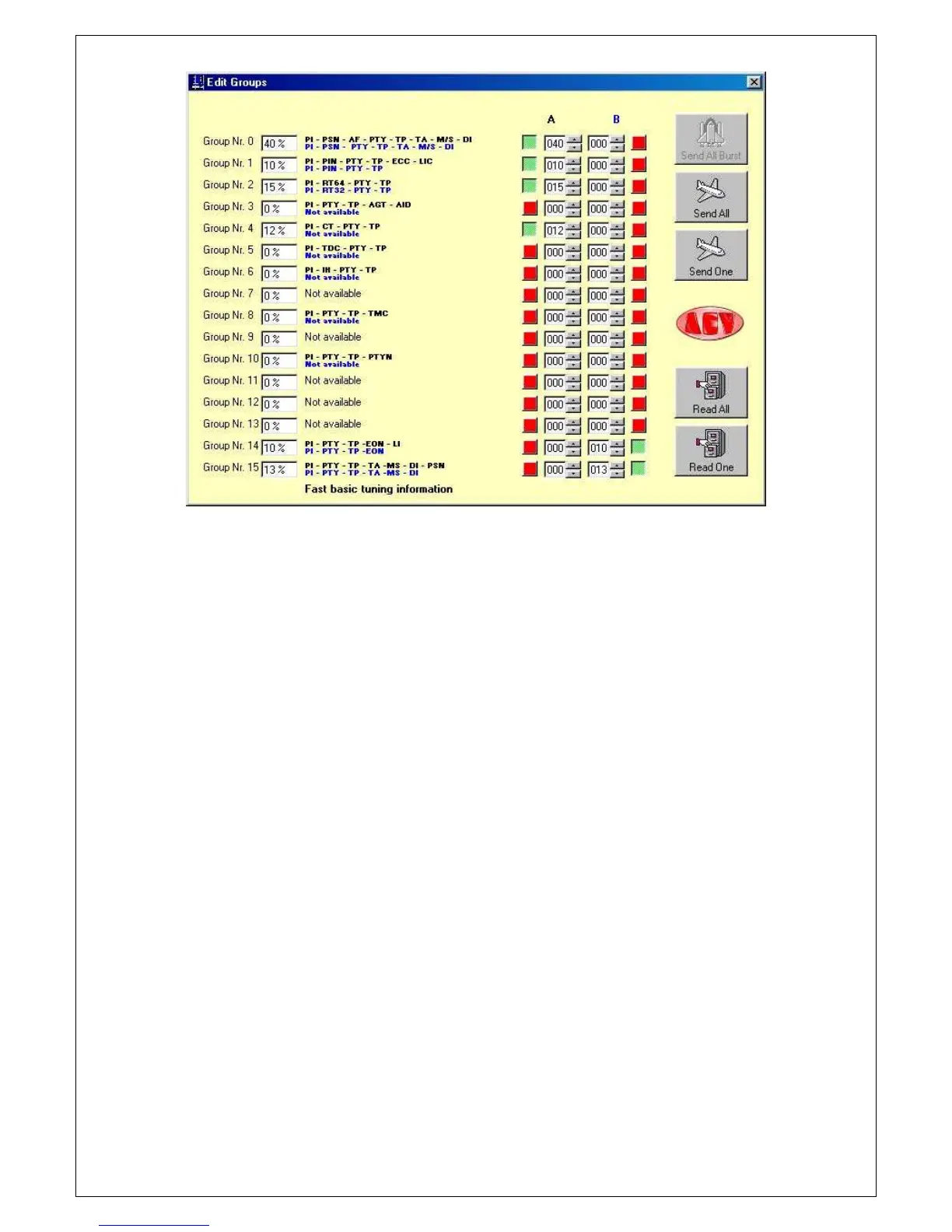

. 15 groups, split-up into A/B are available.
At the side of each group, an ON/OFF push button is available. If it is red it means that the
group is disabled and if it is green it means that it is enabled.
The box with numbers indicates the transmission value of the group.
The default values are:
Group 0 A On 0 4 0
Group 1 A On 0 1 0
Group 2 A On 0 1 5
Group 4 A On 0 1 2
Group 1 4 B On 0 1 0
Group 1 5 B On 0 1 3
Do not make any modif icat ions unless you are absolutely cer tain.
3 types of conf igurat ions have been pre- ar ranged:
RDSPCSAT.rds loaded default configuration with all the most frequently used parameters.
OldLocal.rds to be used only with previous versions of RDS 3500 and STARGATE MK1 (they
may be identified by the two 9-pin connectors on the back of the panel).
Full.rds this configuration is used to modify all the parameters of the RDS coder.
Electrical Specifications
INPUT
Analog audio input configuration Electronically balanced Left & Right
Input level -10 ÷ +10 dBu
Input Impedance > 10 Kohm or 600 ohm dip switch selectable
Common mode rejection Greater than 50 dB (30 Hz ÷ 15 KHz)
Connectors XLR Female, EMI suppressed
STEREO Generator
MPX Output configuration 1 output with level control
Composite output level 0 ÷ +12 dBu
Output Impedance 50 ohm
Connector BNC grounded to chassis
Pilot Frequency 19 KHz ± 0.001% Max over temp.
