AEV STARGATE
Futurcom Srl via della Tecnica 35, 40050 Argelato Bologna ITALY
20
Select the programming mode amongst those offered. Now, going on to a new setting,
the 4-figure PIN code will automatically be created. The last box shows whether the
setting has already been made (Yes) or whether it is still to be processed (No).
Two different boards for programming the alternative frequencies will now be shown, according
to the mode selected: AF Method A or AF Method B.
Bear in mind that the use of one method excludes the other.

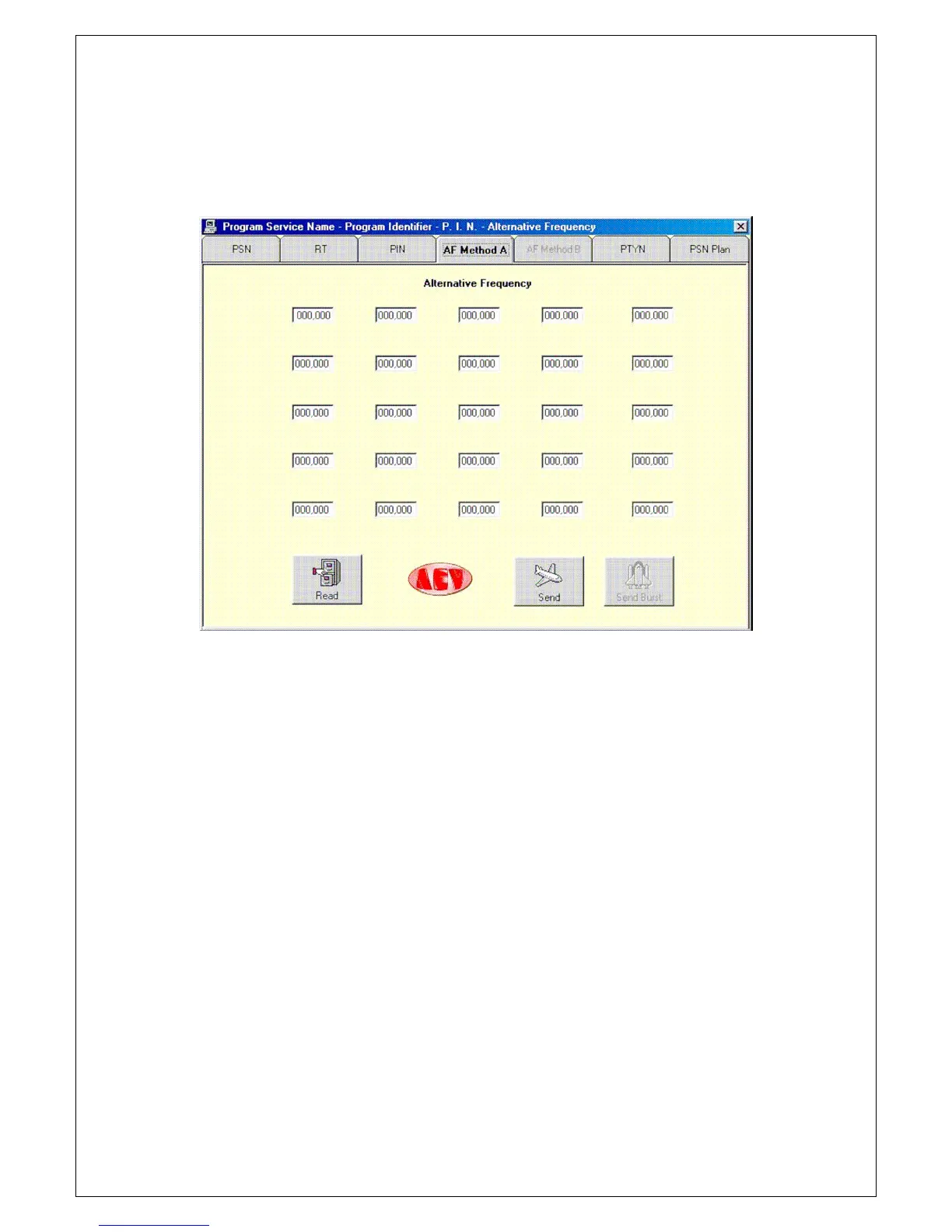

Let’s now analyse the AF Method A board.
This board consists of 25 frequencies. Only with this method will it be possible to enter
frequencies with steps of 25 KHz. The last of this type of frequency causes the loss of another
frequency: therefore up to 25 frequencies with steps of 50 KHz can be entered or 12
frequencies with steps of 25 KHz or in a combined manner, taking all explained earlier into
account.
Once all the frequencies have been entered, the setting can be sent to the coder using the
Send push buttons. If the “local” mode is being used, the parameters already set may also be
read.
