AFA STAINLESS AFLZ01 - Page 6

6
BEFORE AFTER
min. 26"

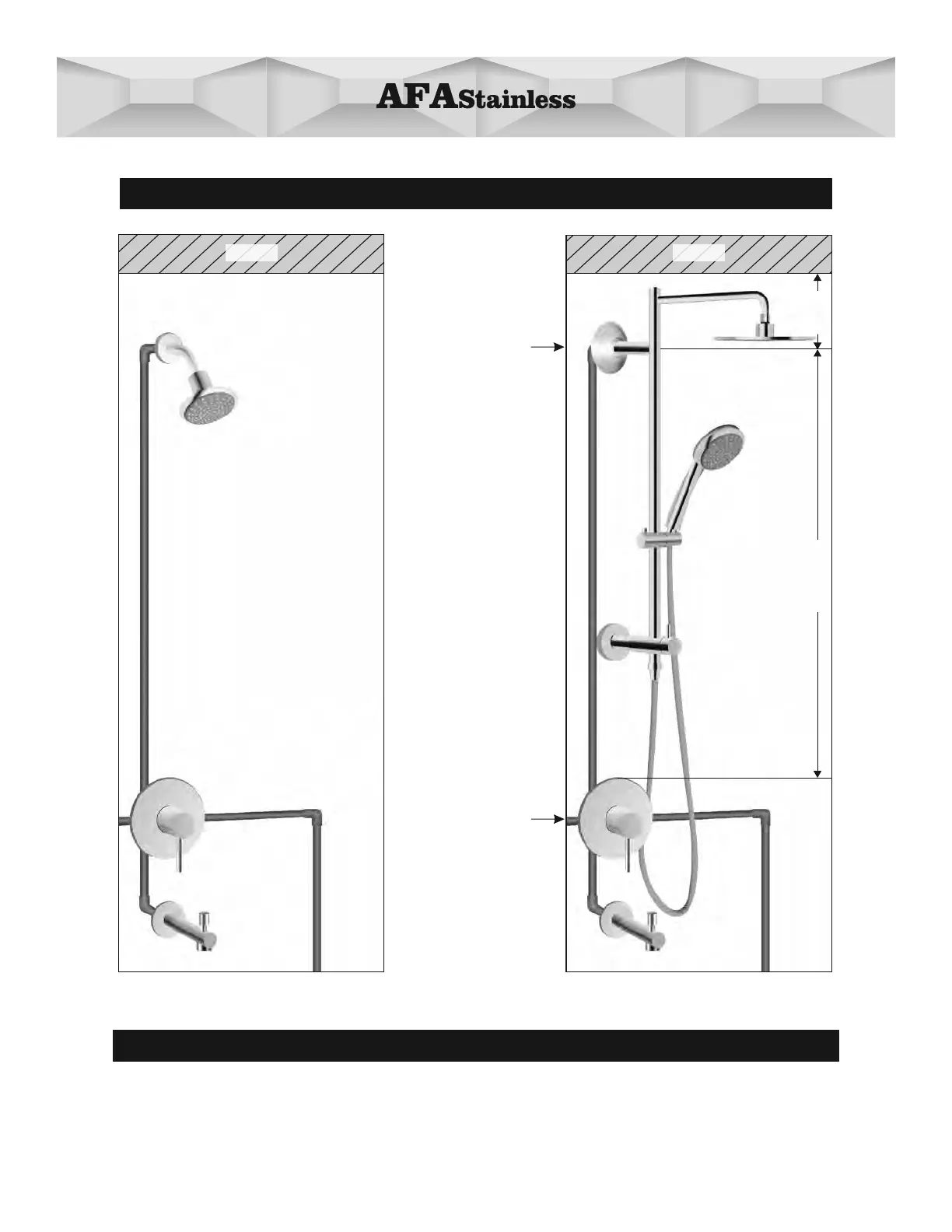

Installation of this product requires the following:
1. Minimum distance of 6" between the middle of the supply adapter and the ceiling.
2. Minimum distance of 26" between the supply adapter and the top of the mixing valve trim.
Ceiling Ceiling
min.6"
BEFORE YOU BEGIN
IMPORTANT: please review before installation
Supply Adapter
Mixing Valve Trim
