AFA STAINLESS AFLZ01 - Page 9

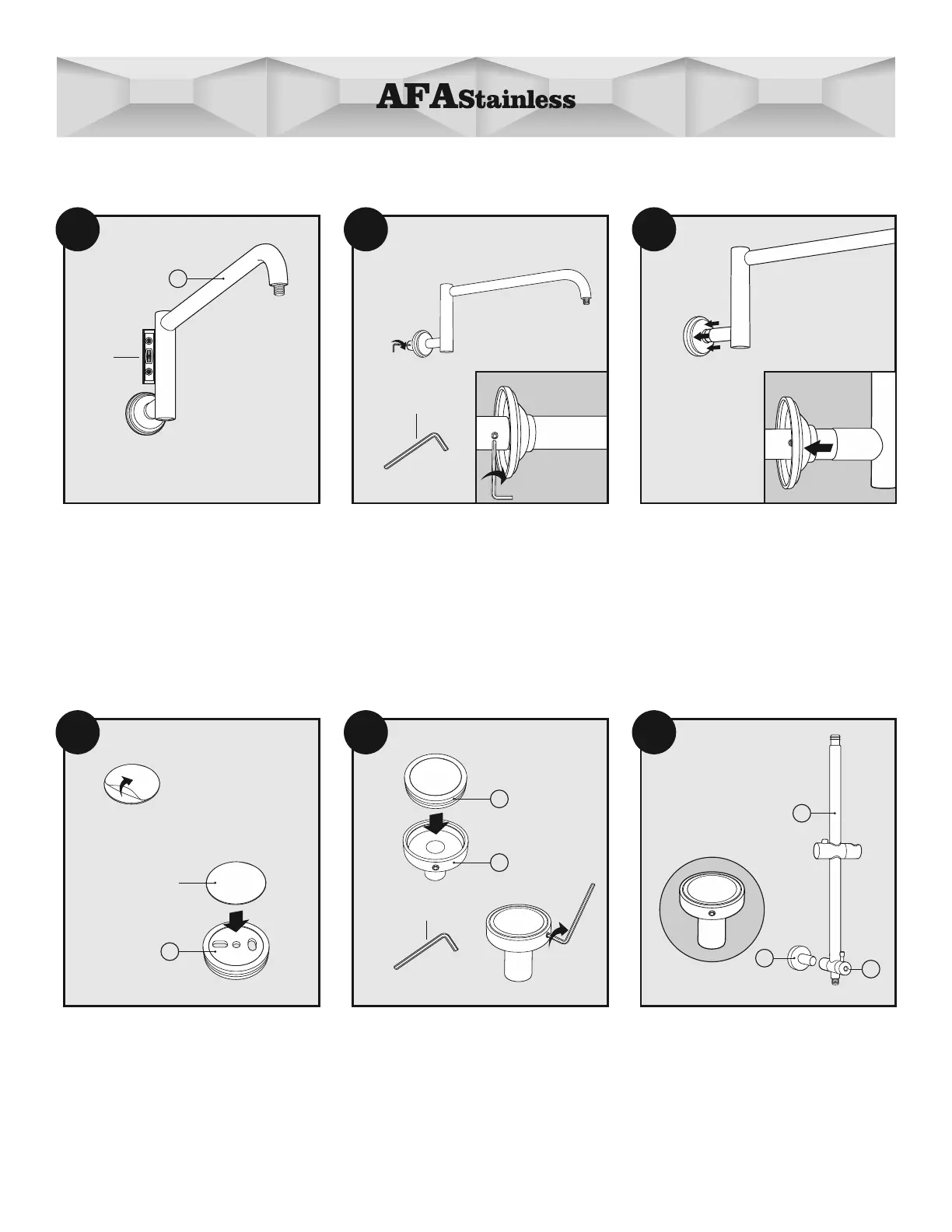

Attach Bottom Mounting Bracket (9)
to the back of Diverter Valve (13).
Insert the Mounting Face Plate (6) into
the Bottom Mounting Bracket (9) and
tighten set screw using the 3/32” Allen
Wrench T-3 (Included).
Remove backing from Double Sided
Tape T-4 (Included) and attach to the
at side of Mounting Face Plate (6).
CAUTION: Do not touch the
adhesive side of tape.
3/32"
9
6
T-3
double sided tape
6
T-4
double sided tape
9
4
13
10 11
12
Slide shower arm ange so its ush
to wall.
Tighten Supply Adapter (1) or (2)with
set screw using 3/32" Allen Wrench
T-3 (Included).
3
T-6
7
3/32"
T-3
8
9
Use Level T-6 (Not included) to adjust
Shower Arm (3) to 90 degree.
9
