AFG 2.0 AR - Page 4

BEFORE
YOU BEGIN
6
INTRODUCTION
IMPORTANT
PRECAUTIONS
ASSEMBLY
BEFORE
YOU BEGIN
BIKE
OPERATION
LIMITED
WARRANTY
TROUBLESHOOTING
& MAINTENANCE
CONDITIONING
GUIDELINES
BEFORE
YOU BEGIN
ASSEMBLY
7
INTRODUCTION
IMPORTANT
PRECAUTIONS
BIKE
OPERATION
CONDITIONING
GUIDELINES
TROUBLESHOOTING
& MAINTENANCE
LIMITED
WARRANTY
REAR STABILIZER TUBE
BOLTS (A)
MAIN FRAME
SCREW (G)
REAR PLASTIC CAP

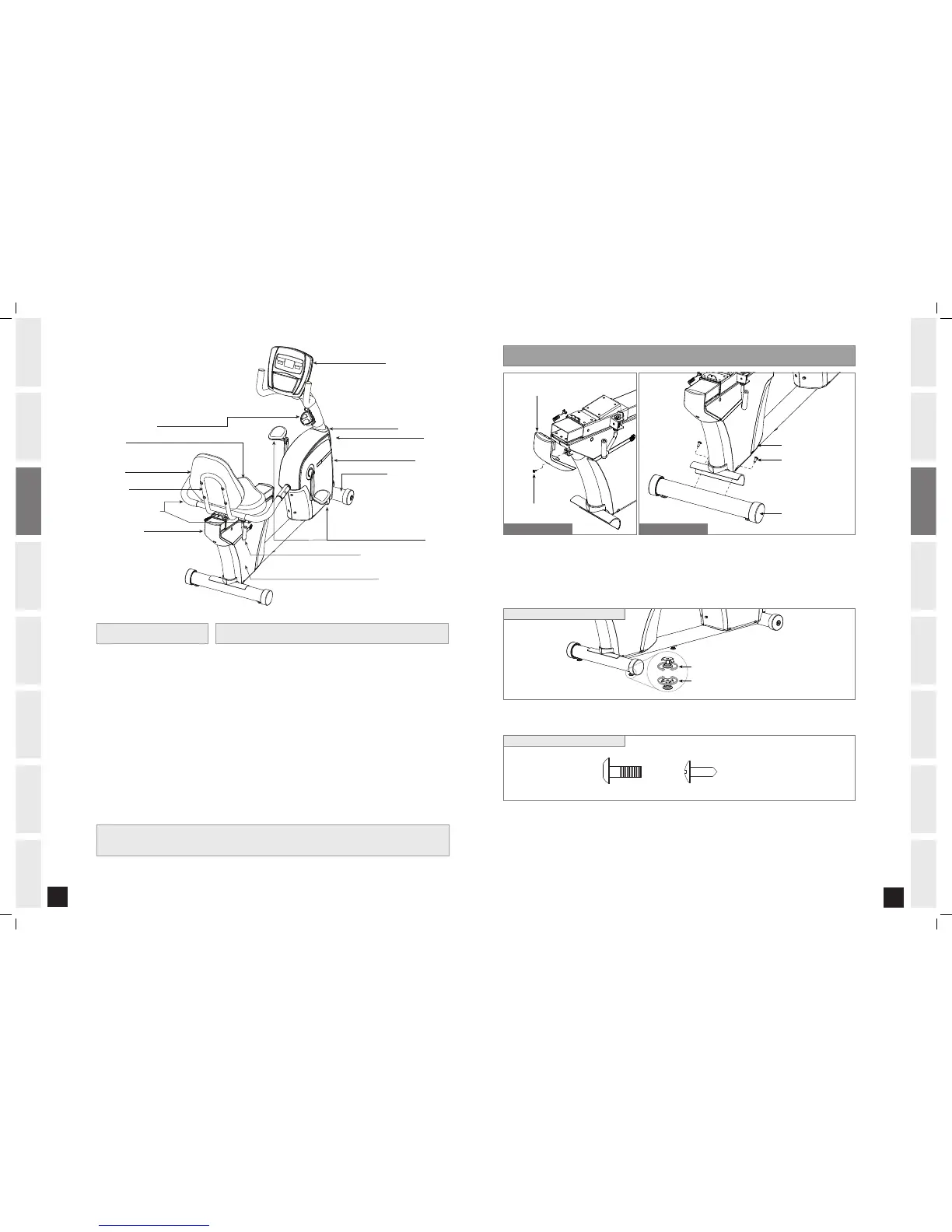

ASSEMBLY ST EP 1
Open HARDWARE BAG FOR STEP 1.
Attach the REAR PLASTIC CAP to the MAIN FRAME using 1 SCREW (G).
Attach the REAR STABILIZER TUBE to the MAIN FRAME using 2 BOLTS (A).
A.
B.
C.
BOLT (A)
20 mm
Qty: 2
SCREW (G)
15 mm
Qty: 1
HARDWARE BAG FOR STEP 1 CONTENTS :
TOOLS INCLUDED PARTS INCLUDED
c 5mm Allen Wrench
c 5mm T Wrench
c 13/15mm Flat Wrench
c Phillip Screwdriver
c 1 Console
c 1 Console Mast
c 2 Pedals
c 1 Top Cap
c 1 Top Cap Grommet
c 1 Seat Back
c 1 Seat Base
c 1 Rear Plastic Cap
c 4 Hardware Bags
c 1 Rear Stabilizer Tube
c 1 Frame
c 1 Pulse Grip Handlebar
c 1 Seat Frame
c 1 Water Bottle Holder
If you have questions or if there are any missing parts, contact Customer Tech Support.
Contact information is located on the back panel of this manual.
CONSOLE (3.0AR SHOWN)
MAIN FRAME
SEAT POSITION ADJUSTMENT LEVER
FRONT STABILIZER TUBE
WATER BOTTLE HOLDER
SEAT BACK
SEAT BASE
SEAT FRAME
REAR PLASTIC CAP
PULSE GRIP HANDLEBARS
PEDALS
TOP CAP
TOP CAP GROMMET
REAR SHROUD (3.0AR ONLY)
3.0AR ONLY
LOCK ADJUSTMENT
ADJUST HEIGHT
Adjust 3 LEVELERS so that the bike does not rock and is level on the floor.C.
ADJUST LEVELERS
REAR STABILIZER TUBE
BOLTS (A)
MAIN FRAME
SCREW (G)
REAR PLASTIC CAP
3.0AR SHOWN
