BOLTS (B)
BOLTS (B)
PULSE GRIP BAR
PLASTIC CLIP
EXPOSED WIRES RECESS
COVERED PULSE
GRIP WIRES
SEAT SLIDE
PRE-ATTACHED
ADJUSTMENT LEVER SCREW

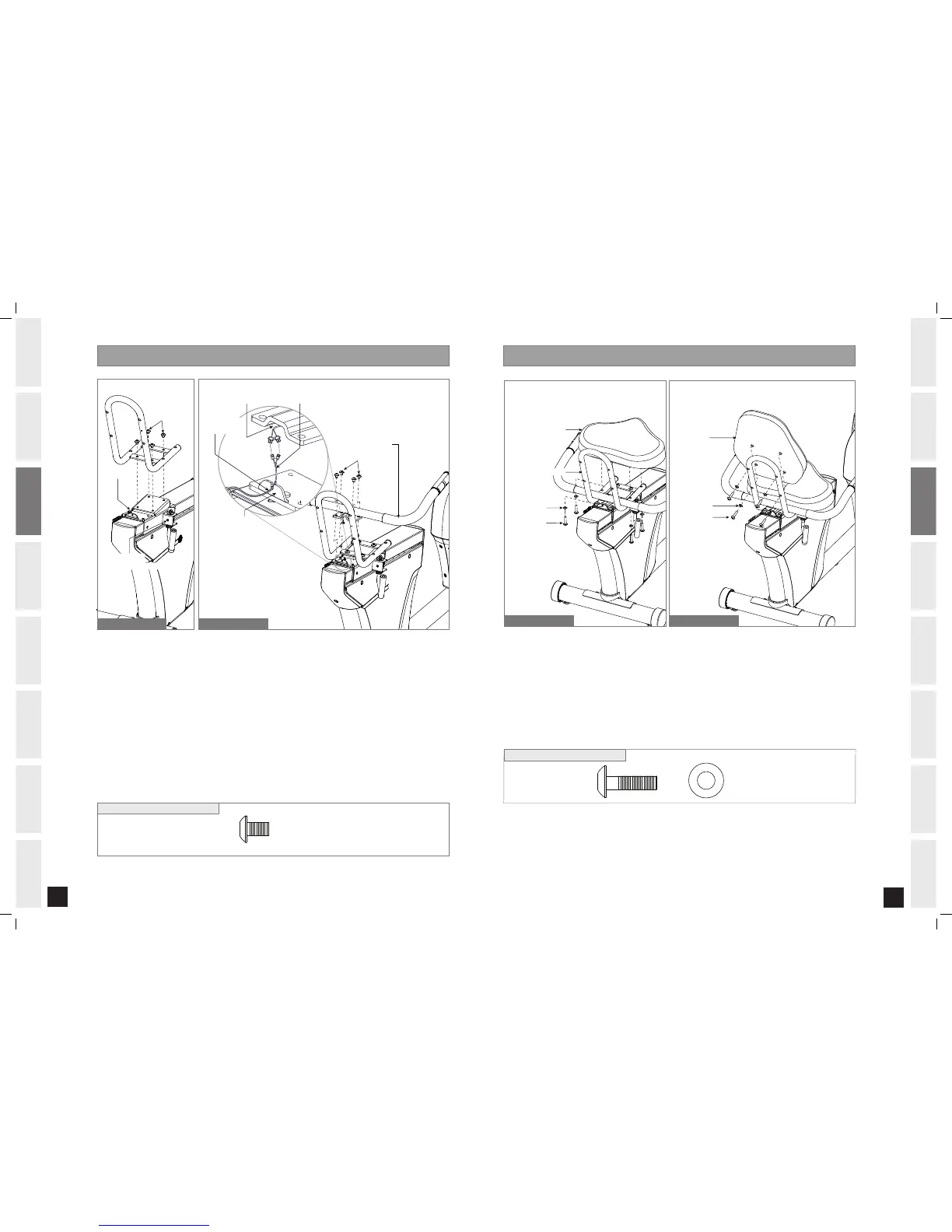

ASSEMBLY ST EP 3ASSEMBLY ST EP 2
Open HARDWARE BAG FOR STEP 2.
Firmly Tighten the PRE-ATTACHED ADJUSTMENT LEVER SCREW to the BRACKET.
Attach the SEAT FRAME to the SEAT SLIDE using 4 BOLTS (B).
Attach the PULSE GRIP WIRES from the rear of the recumbent to the PULSE GRIP WIRES from the
PULSE GRIP BAR.
Press COVERED PULSE GRIP WIRES into the PLASTIC CLIP as shown above. Tuck EXPOSED WIRES into
RECESS under PULSE GRIP BAR.
Attach the PULSE GRIP BAR to the SEAT SLIDE using 4 BOLTS (B).
Note: Tuck in wires as shown. Be sure that the PULSE GRIP WIRES will not be crushed when adjusting the
seat back and forth.
A.
B.
C.
D.
E.
F.
BOLT (B)
10 mm
Qty: 8
HARDWARE BAG FOR STEP 2 CONTENTS :
BOLTS (B)
BOLTS (B)
PULSE GRIP BAR
PLASTIC CLIP
EXPOSED WIRES RECESS
COVERED PULSE
GRIP WIRES
SEAT SLIDE
PRE-ATTACHED
ADJUSTMENT LEVER SCREW
BOLT (C)
40 mm
Qty: 8
WASHER (D)
17 mm
Qty: 8
HARDWARE BAG FOR STEP 3 CONTENTS :
Open HARDWARE BAG FOR STEP 3.
Attach SEAT BASE to SEAT FRAME using 4 BOLTS (C) and 4 WASHERS (D).
Attach SEAT BACK to SEAT FRAME using 4 BOLTS (C) and 4 WASHERS (D).
A.
B.
C.
3.0AR SHOWN
3.0AR SHOWN
WASHERS (D)
SEAT BASE
SEAT BACK
BOLTS (C)
WASHERS (D)
BOLTS (C)
SEAT FRAME
3.0AR SHOWN
WASHERS (D)
SEAT BASE
SEAT BACK
BOLTS (C)
WASHERS (D)
BOLTS (C)
SEAT FRAME
3.0AR SHOWN
