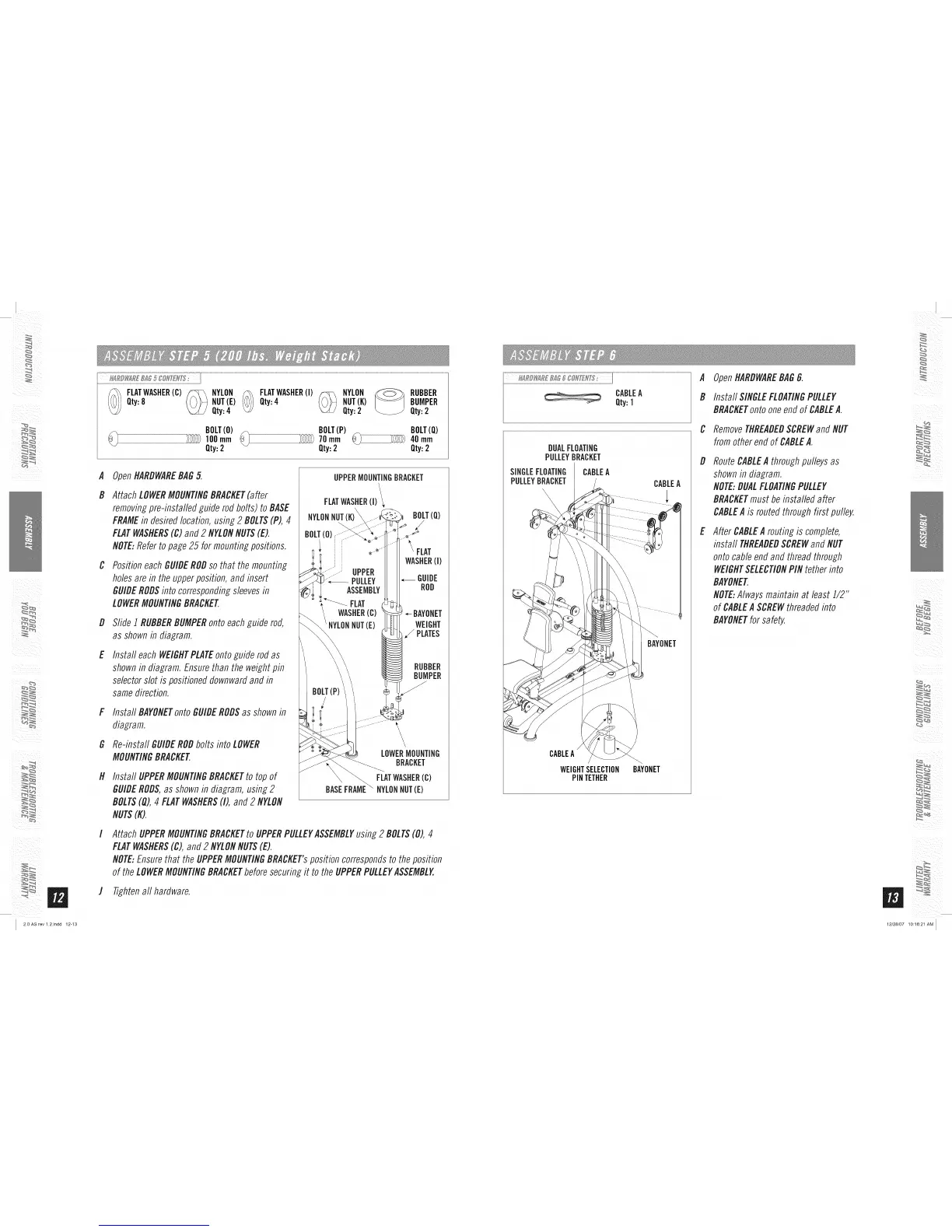

AFG 2.0 AS - Assembly Step 6: Cable A Routing

iI_ ii_i i
_ i i i I
ii¸_
il__iii_i_i_i!I_ii_ii_!!_i_
i ii
2.0 AS rev 1.2.indd 12-13
A
B
C
D
E
F
G
H
FLATWASHER(C)
Qty:8
(_ YLON
NUT(E)
Qty:4
BOLT(0)
lOOmm
Qty:2
FLATWASHER(I)
Qty:4
_ YLON
NUT(K)
Qty:2
BOLT(P)
_70mm _)
Qty:2
RUBBER
BUMPER
Qty:2
BOLT(Q)
40 mrn
Qty:2
OpenHARDWAREBAG5.
UPPERMOUNTINGBRACKET
AttachLOWERMOUNTINGBRACKET(after
removingpre-installedguiderod bolts) toBASE
FRAMEin desiredlocation,using2 BOLTS(P),4
FLATWASHERS(C)and2 NYLONNUTS(E).
NOTE:Referto page25 for mountingpositions.
Position each GUIDERODso that the mounting
holes are in the upper position, and insert
GUIDERODSinto corresponding sleeves in
LOWERMOUNTINGBRACKET
Slide ] RUBBERBUMPERonto each guide rod,
as shown in diagram.
........y UPPER
PULLEY
ASSEMBLY
BOLT(Q)
/
\ FLAT
WASHER(J)
--BAYONET
WEIGHT
PLATES
Install each WEIGHTPLATEontoguiderod as
shownin diagram.Ensurethan theweightpin
selectorslot is positioneddownwardand in
samedirection.
Install BAYONETonto GUIDERODSas shown in
diagram.
Re-installGUIDERODbolts intoLOWER
MOUNTINGBRACKET
Instafl UPPERMOUNTINGBRACKETto top of
GUIDERODS,as shown in diagram, using 2
BOLTS(Q),4 FLATWASHERS(I), and 2 NYLON
NUTS(g).
BASEFRAME
RUBBER
BUMPER
\
LOWERMOUNTING
BRACKET
FLATWASHER (C)
NYLONNUT(E)
AttachUPPERMOUNTINGBRACKETto UPPERPULLEYASSEMBLYusing2 BOLTS(0), 4
FLATWASHERS(C),and 2 NYLONNUTS(E).
NOTE:Ensurethat the UPPERMOUNTINGBRACKET'spositioncorrespondsto theposition
of theLOWERMOUNTINGBRACKETbeforesecuringit to the UPPERPULLEYASSEMBLY.
] Tightenall hardware.
CABLEA
Qty:1
DUALFLOATING
PULLEYBRACKET
SINGLEFLOATING
PULLEYBRACKET
\
BAYONET
CABLEA
WEIGHTSELECTION
PINTETHER
BAYONET
A OpenHARDWARE BAG B.
B InstallSINGLEFLOATINGPULLEY
BRACKET ontooneendofCABLEA.
C
D
E
Remove THREADEDSCREWand NUT
from other end of CABLEA.
Route CABLEA through pulleys as
shown in diagram.
NOTE:DUALFLOATINGPULLEY
BRACKETmust be installed after
CABLEA is routed through first pulley.
After CABLEArouting is complete,
instafl THREADEDSCREWand NUT
ontocableendand threadthrough
WEIGHTSELECTIONPINtetherinto
BAYONET
NOTE:Alwaysmaintain at least 1/2"
of CABLEASCREWthreadedinto
BAYONETforsafety.
