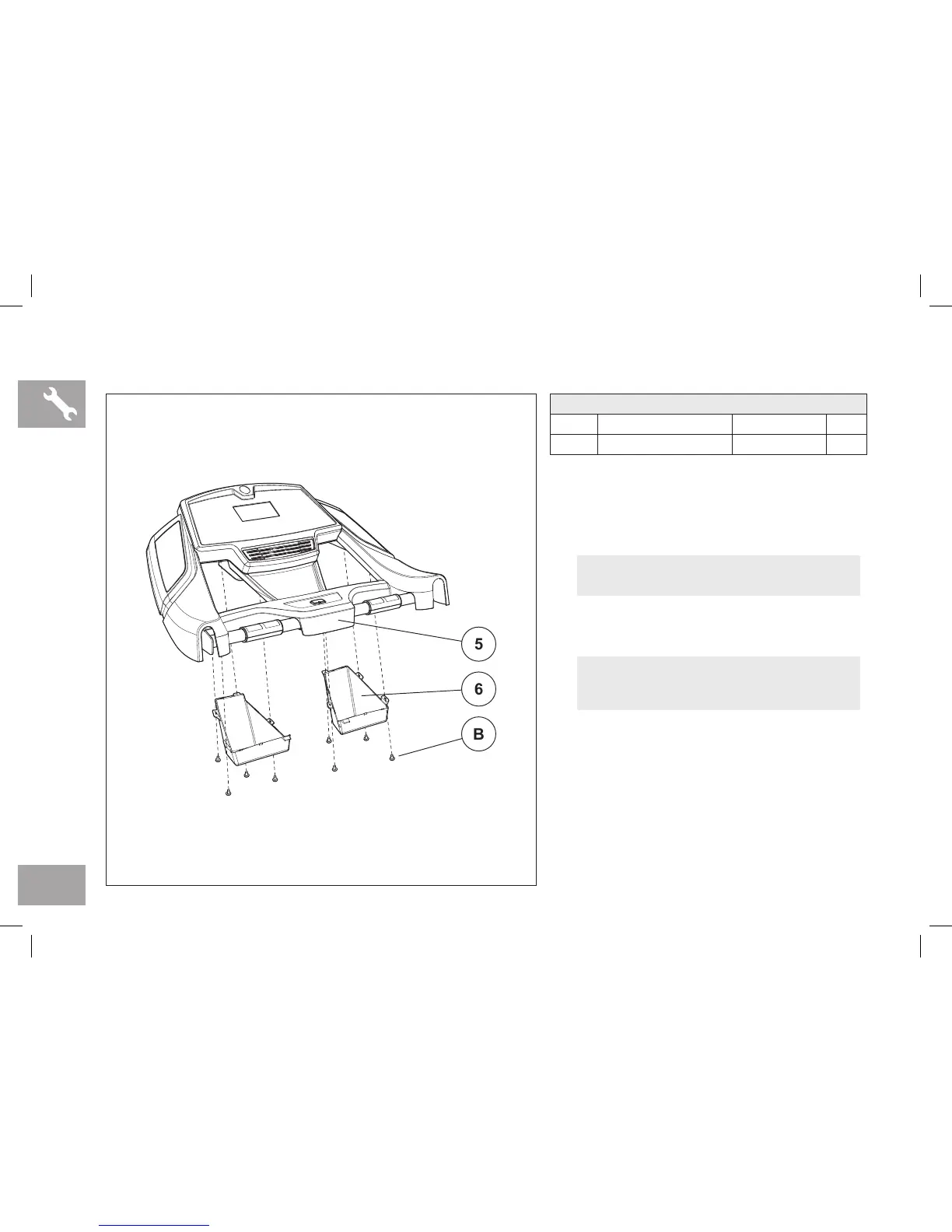

ASSEMBLY STEP 3
A Open HARDWARE FOR STEP 3.
B Turn CONSOLE (5) over and align CONSOLE
POCKETS (6) with screw holes.
C Attach CONSOLE POCKETS (6) to CONSOLE
(5) using 10 SCREWS (B).
HARDWARE FOR STEP 3
PART TYPE DESCRIPTION QTY
B SCREW 4X10L 10
NOTE: Before securing the pockets, ensure
the snap tabs are outside the pocket recess.
NOTE: Gently loosen the screws if
necessary after assembly to snap them into
place and avoid breaking the tabs.
