AFG 2.7AT - Assembly Step 4; Place and Connect Console

13
C
1
4
3
5

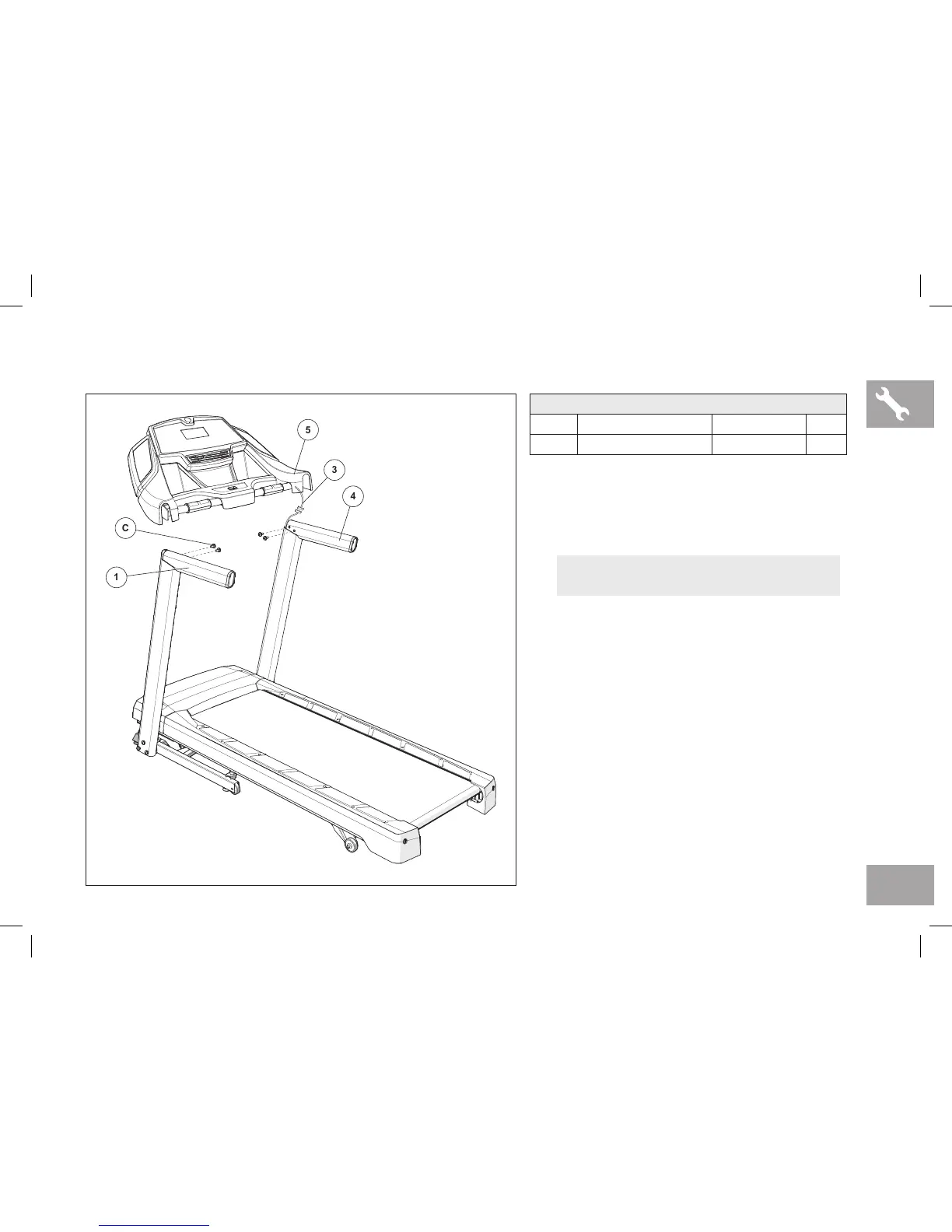

ASSEMBLY STEP 4
A Open HARDWARE FOR STEP 4.
B Gently place CONSOLE (5) on top of
CONSOLE MASTS (1 & 4).
C Connect the CONSOLE CABLES (3) and
ensure cables are tucked inside the CONSOLE
(5).
D Connect the CONSOLE (5) to the right
CONSOLE MAST (4) using 2 BOLTS (C).
E Repeat STEP D on left side.
HARDWARE FOR STEP 4
PART TYPE DESCRIPTION QTY
C HEX SOCKET BOLT M8X1.25PX20L 4
NOTE: Be careful not to pinch the console
cables while attaching the console.
