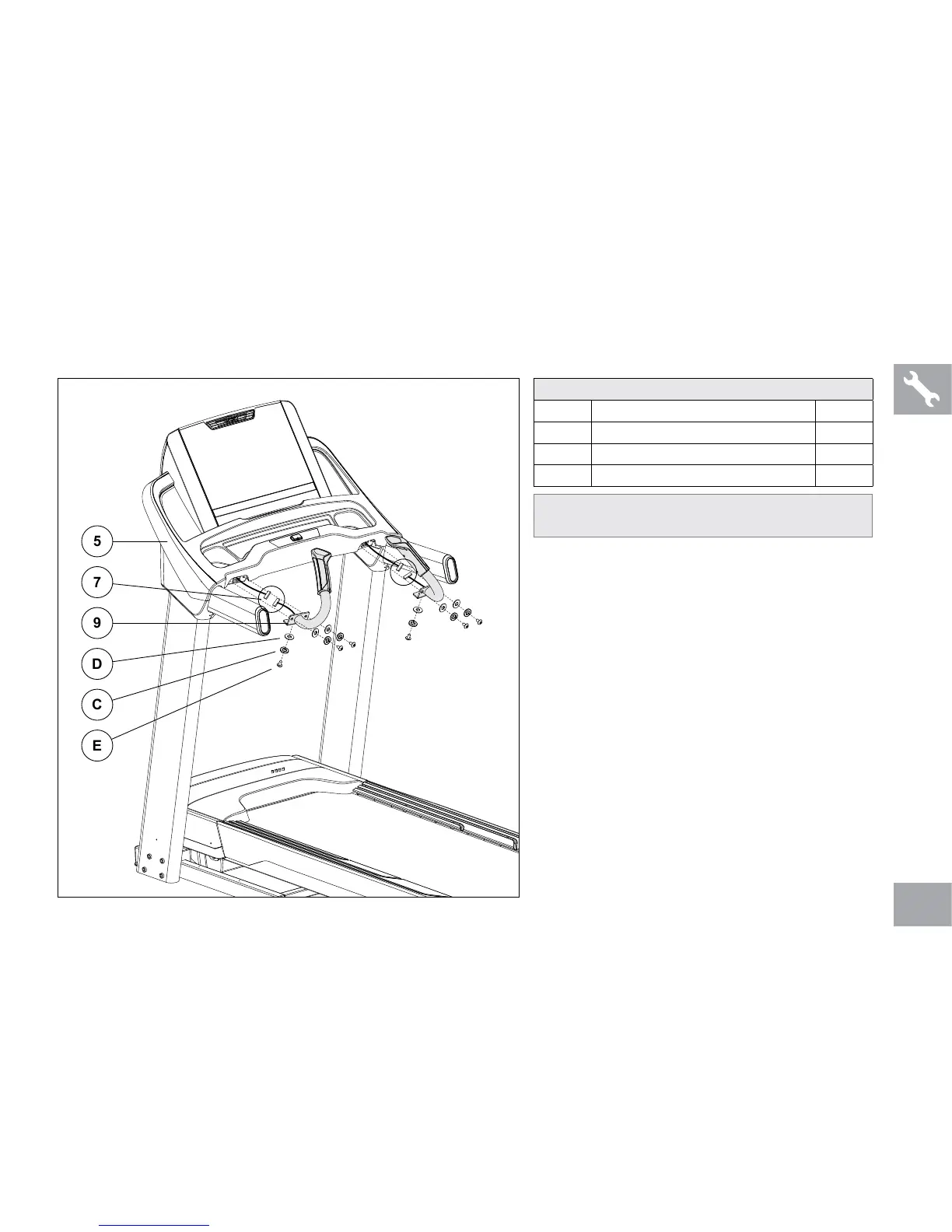

ASSEMBLY STEP 5
A Open HARDWARE FOR STEP 5.
B Connect the HEART RATE CABLES
(7) and carefully tuck them inside the
CONSOLE (5).
C Attach HEART RATE BAR (9) to the
CONSOLE (5) using 3 BOLTS (E), 3
SPRING WASHERS (C) and 3 FLAT
WASHERS (D).
D Repeat on other side.
HARDWARE FOR STEP 5
PART TYPE QTY
E BUTTON HEAD BOLT 6
C SPRING WASHER 6
D FLAT WASHER 6
NOTE: Be careful not to pinch the console
cables while attaching the console.
To Next Page
