ASSEMBLY INSTRUCTIONS
Before assembling your headboard, please read through these
Page 1 of 3
Step 1
Instructions apply for bed sizes
TWIN > FULL > QUEEN > KING
PARTS LIST HARDWARE
ATTENTION! If you receive a damaged or defective item,
please contact afifurnishings at customerservice@afifurnishings.com or 1-800-955-3726
READY
ASSEMBLE
TO
instructions carefully and familiarize yourself with the different parts.
HEADBOARD PANEL
1 PC
1
2
3
1 PC
1 PC
LEFT LEG
RIGHT LEG
Split washer - 4 pcs
Flat washer - 4 pcs
JCB M6 X 25mm (1”) - 4 pcs
HARDWARE FOR METAL BED FRAME
Spare - 1 pc
Spare - 1 pc
Spare - 1 pc
E
D
C
Allen wrench - 1pc
Spare - 1pc
If you purchased a wood headboard to attach to metal bed frame, please refer to page 3.
NOTE: WE INCLUDE SPARE HARDWARE IN CASE DAMAGE OCCURS DURING ASSEMBLY.
JCB M6 X 40mm (1 5/8”) - 4 pcs
Spare - 1 pc
B
F
A
Wooden dowel - 4 pcs
Spare - 1 pc

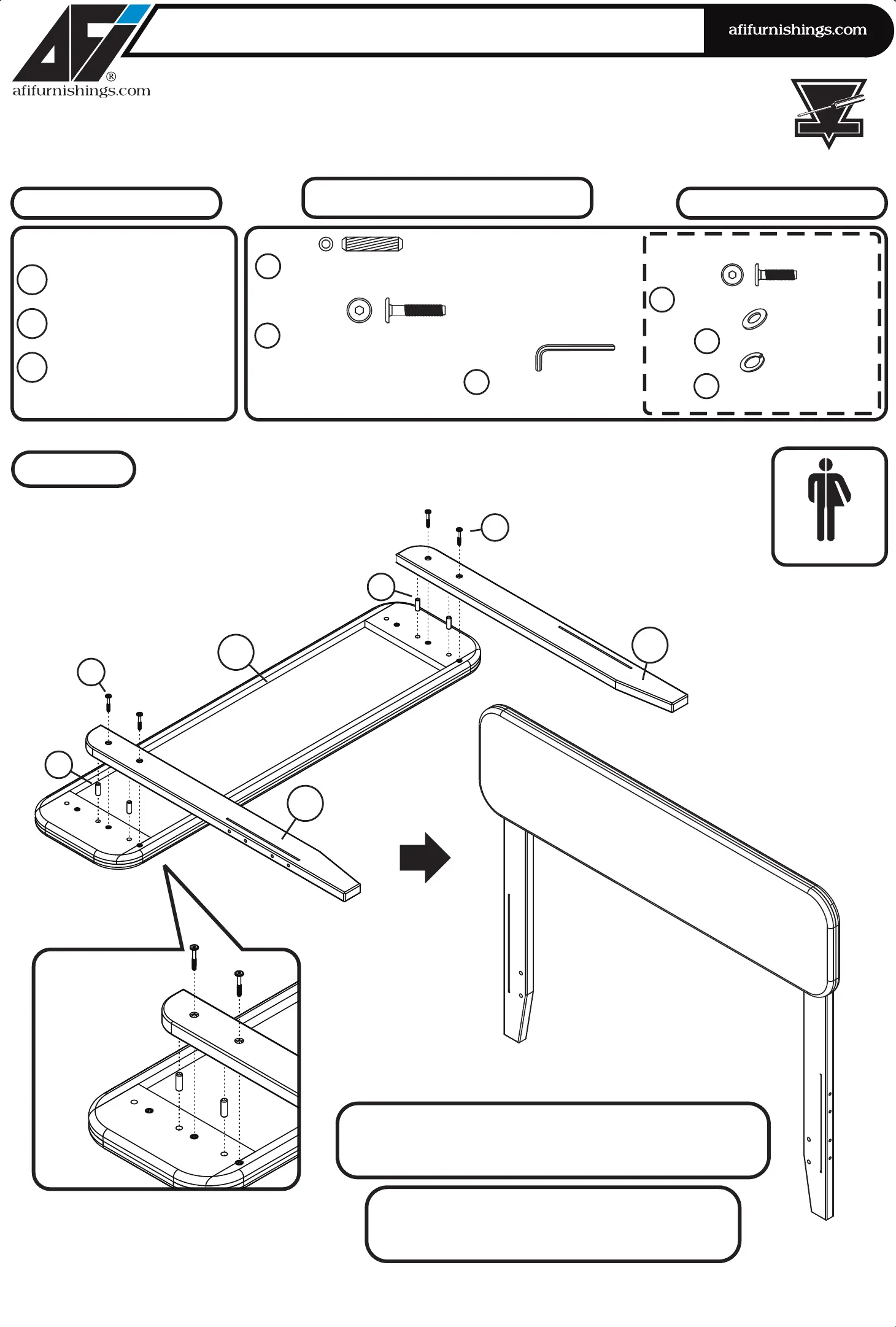

Attach the legs (2) and (3) to headboard panel (1),
using wooden dowels (A) and JCB (B).
Tighten with the Allen wrench (F).
Adult assembly
1
2
3
A
B
B
A
PO:
HEADBOARD
CODE ITEM ITEM ITEM ITEM
HB-FLC R-29682X R-29683X R-29684X R-29685X
To Next Page
