Connect the Smart Meter to Three-phase System
10
a. Three-phase System with TAPM-50KW Smart Meter
b. Three-phase System with TAPM-130KW Smart Meter
Note:
There are two faces P1&P2 on CT, P1 directs to Grid,
P2 directs to inverter and load.
Note:
The 50kW smart meter does not support adding a CT
PV GENERATOR
Afore Three-phase
TAPM-130KW Meter
HOUSEHOLD CONSUMERS
GRID
Communication path
Power path
......
RS485
BNT030KTL~BNT0060KTL

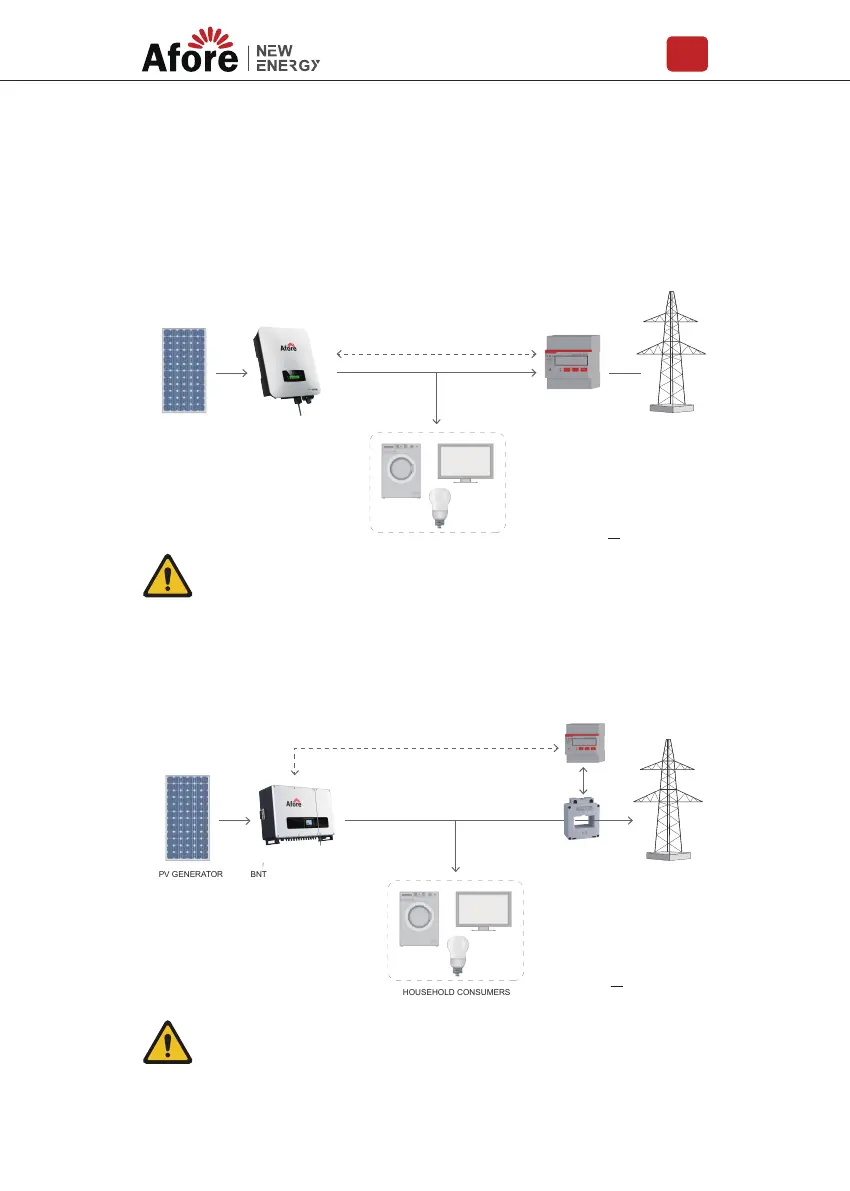

7. Connect the Smart Meter to Three-phase System
7.1 System Diagram
PV GENERATOR
Afore Three-phase
TAPM-50KW Meter
HOUSEHOLD CONSUMERS
GRID
Communication path
Power path
......
RS485
BNT003KTL~BNT0025KTL
Inverter
