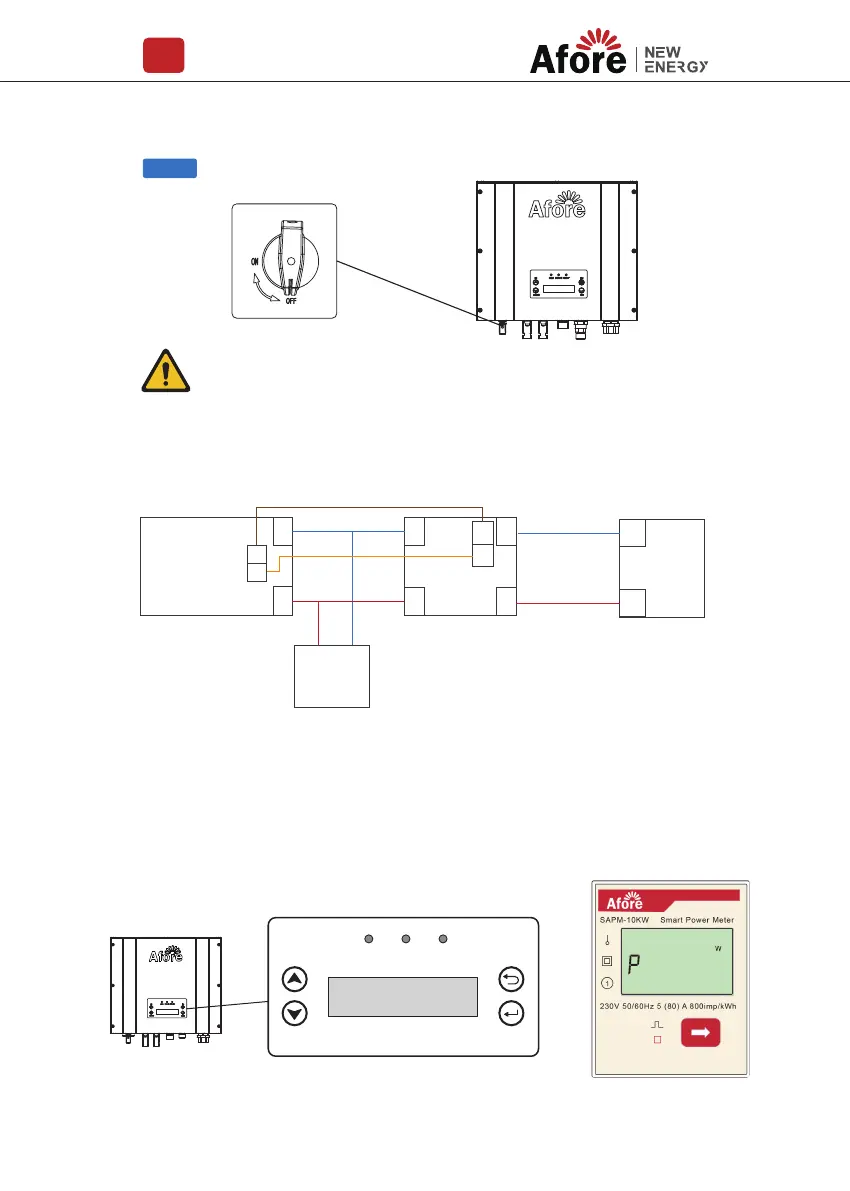

a. After complete wiring between smart meter and inverter. The power P display
on the smart meter will synchronize with inverter Pac display.
Single-phase Inverter Zero-Injection FAQ
07
Step 3
Note:
After activate "Zero Injection" function, please restart the inverter.
4.3 Single-phase System Wiring Diagram
5. Single-phase Inverter Zero-Injection FAQ
Afore
Inverter
Load
Meter
AC
L
pin
8
pin
7
L
4
3
2
25
24
1
N
N
L
N
UP
DOWN
ESC
ENT
POWER FAULTGRID
INTemp = 35.1℃
Pac = 932.2 W
Inverter Pac
Three-phase Smart Meter
932.2
