Zero-Injection Wiring
03
1. For single-phase inverter, please follow below pin order
RS485A (Pin 7) to single-phase meter (Pin 24)
RS485B (Pin 8) to single-phase meter (Pin 25)
2. For three-phase 3-25kW inverter, please follow below pin order
RS485A (Pin 3 / 4) to three-phase meter (Pin 24)
RS485B (Pin 1 / 2) to three-phase meter (Pin 25)
3. For three-phase 30-60kW inverter, please follow below pin order
RS485A (Pin 1) to three-phase meter (Pin 24)
RS485B (Pin 2) to three-phase meter (Pin 25)
Note:

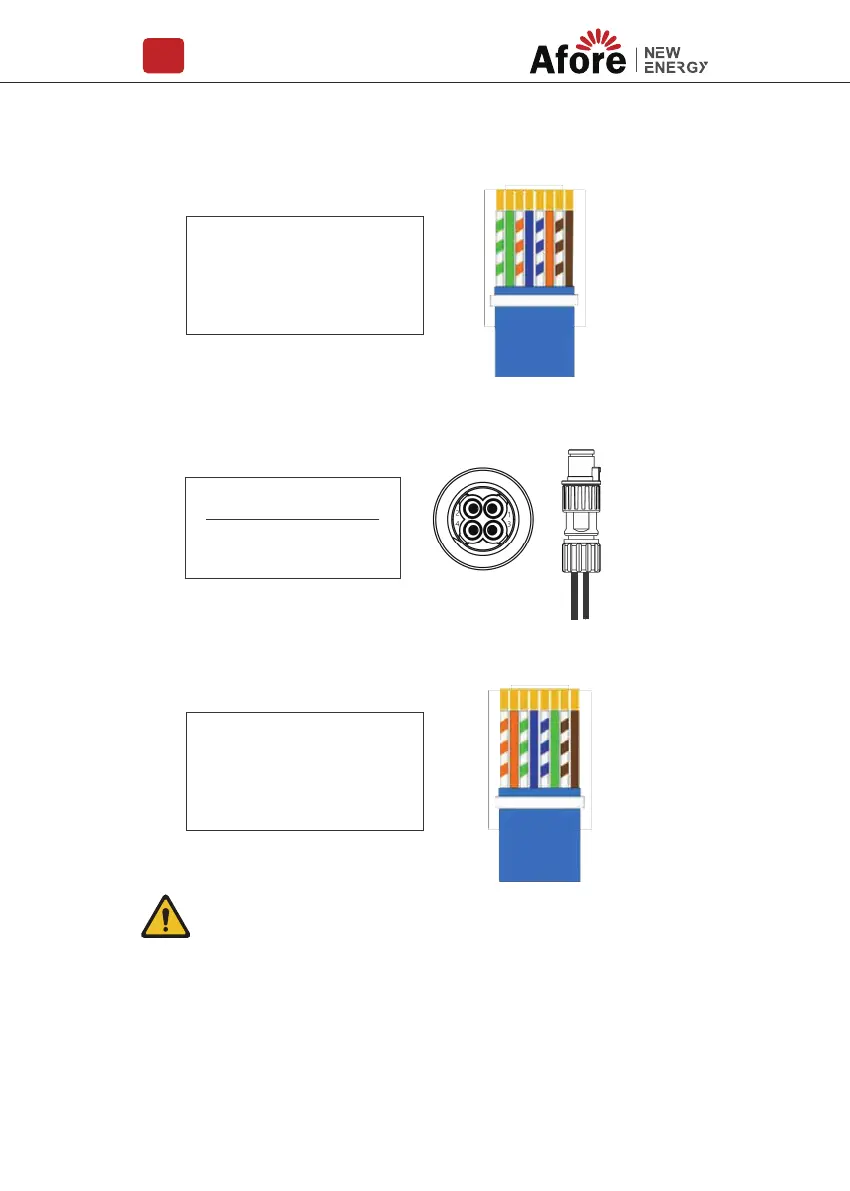

RJ45 Pin order for single-phase inverter
RJ45 Pin order for three-phase 30-60kW inverter
1. White green
2. Green
3. White orange
4. Blue
5. White blue
6. Orange
7. White brown
8. Brown
568B Standard
1234567812345678
(A) (B)
1. White orange
2. Orange
3. White blue
4. Blue
5. White blue
6. Green
7. White brown
8. Brown
568B Standard
(A) (B)
12345678
Zero-Injec�on Connector wiring for three-phase 3-25kW inverter
1/2
3/4
PIN Asignment
RS485 B
RS485 A
To Next Page
