afx light BARCOB2 User Manual

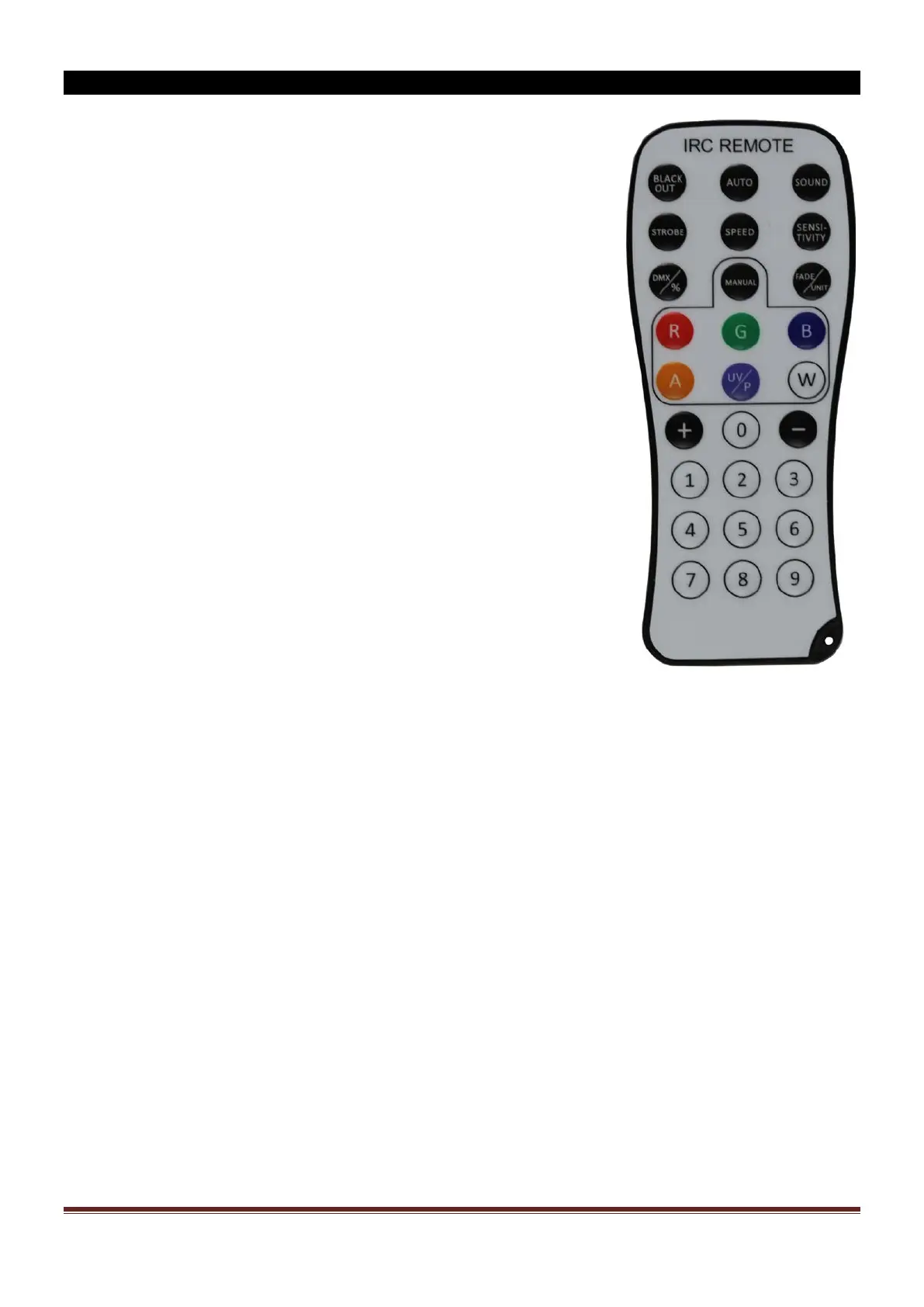

IR CONTROLLER
BLACK OUT Mode
1. Press BLACK OUT to switch out the lights in the current mode. Press again to return
to the last mode.
AUTO Mode
Automatic mode will enable you to run the automatic programs on the product.
To turn on Automatic mode:
1. Press <AUTO> on the IRC.
2. Press <+> or <–> to choose between the different auto programs.
SOUND Mode
Sound-Active mode will enable the product to respond to the music.
To turn on Sound-Active mode:
1. Press <SOUND> on the IRC.
2. Press <+> or <–> to choose between the different SOUND programs.
STROBE Mode
To adjust the strobe speed of the automatic program and the sound active program.
1. Press <STROBE> on the IRC.
2. Press <+> or <–> to either increase or decrease the speed of the program.
3. Press <STROBE> again to turn off the strobe.
SPEED Mode
To adjust the speed of the automatic program and the sound active program.
1. Press <SPEED> on the IRC.
2. Press <+> or <–> to either increase or decrease the speed of the program.
SENSITIVITY Mode
To adjust sound sensitivity for in Sound-Active mode
1. Press <SENSITIVITY> on the IRC.
2. Press <+> or <–> to either increase or decrease sound sensitivity.
DMX Mode
To enable DMX or disallow DMX on the product
Manual Mode
To manually control the RGB percentage:
1. Press <MANUAL> on the IRC.
2. Press <R>, <G>, or <B> (red, green or blue) to choose your color.
UNIT Mode
To fade the light putout
Press <0> to open/close Lens1#, Lens 2#, Lens 3# and Lens 4#.
Press <1> to open/close Lens1#.
Press <2> to open/close Lens 2#.
Press <3> to open/close Lens3#
Press <4> to open/close Lens4#.
Press<UNIT> again to turn off the UNIT mode
© Copyright LOTRONIC 2015 BARCOB2 / BARCOB4 Page 6
