1. POWER IN: Connect the supplied mains lead to this connector and to an appropriate wall outlet.
2. DMX IN: Connect a DMX cable from the DMX output connector of a DMX controller to this DMX
input
3. Built-in microphone with adjustable sensitivity
4. LED display for the menu settings
5. DMX OUT: Connect this output to the DMX input connector of a slave unit
6. POWER OUT: Connect this power output to the POWER IN connector of a slave unit
7. Safety hook: For additional fastening of the unit to a truss system to avoid accidental falling of
the unit.
CONTROL PANEL
The control panel is the mechanism for conguring the settings. It has a small LCD screen and four
buttons, which are described below.
UP
DOW N
MEN U ENT ER
8.8.8.8.
BUTTON FUNCTION
<MENU>
Scrolls through the rst level of options, or exits from the current menu or function
<UP>
Navigates upward through the menu list or increases the numeric value when in a function
<DOWN>
Navigates downward through the menu list or decreases the numeric value when in a function
<ENTER>
Enables the currently displayed menu or sets the currently selected value in to the current function

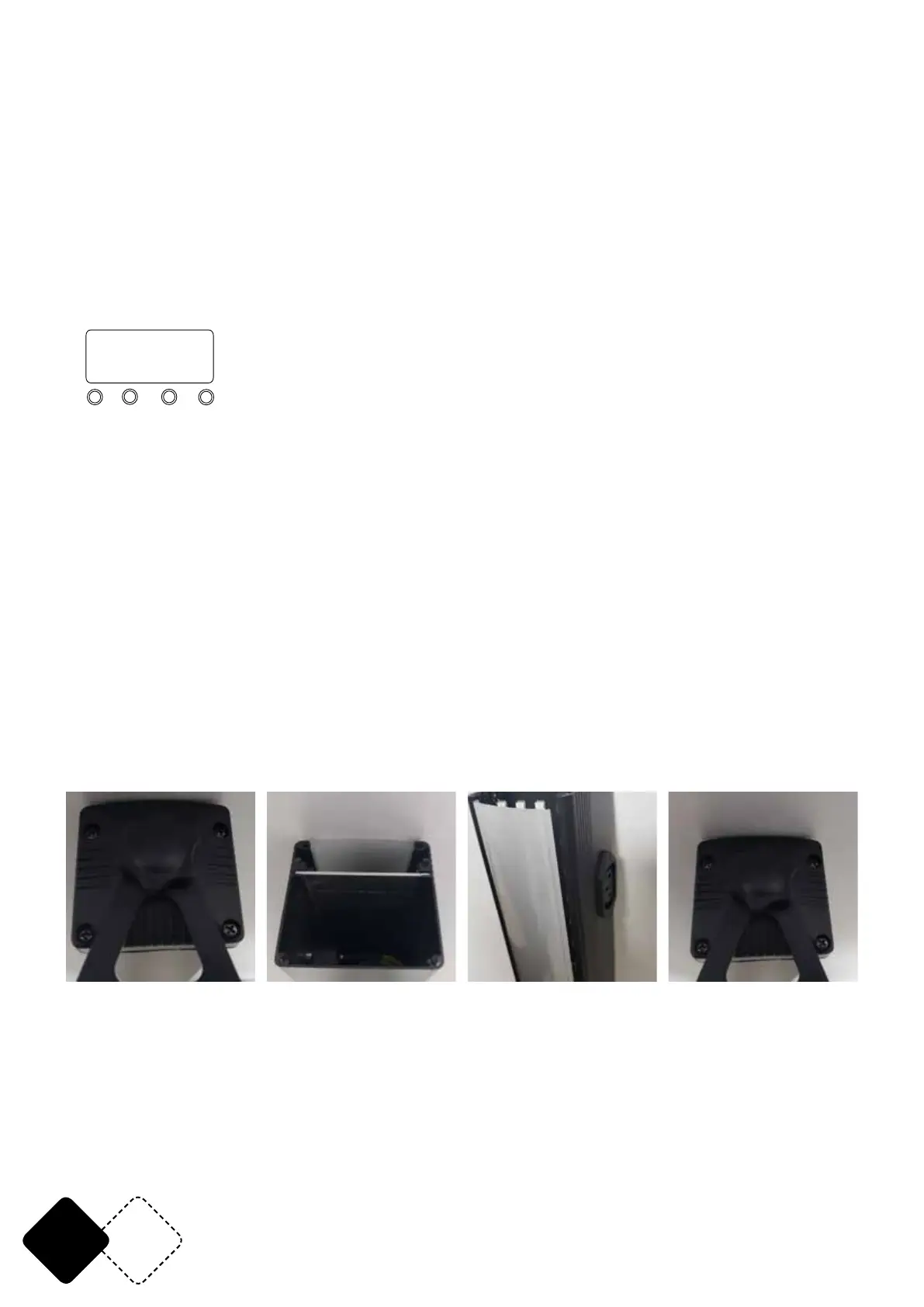

CHANGING THE FILTER
The unit is supplied with 2 lters: one clear lter and one Frost lter allowing to vary the effects.
The frost lter spreads the light at a wider angle e.g. to illuminate a wall.
To change the lter, proceed as follows:
Remove the 4 screws Remove the lter Put the new lter in place Fasten the 4 screws
