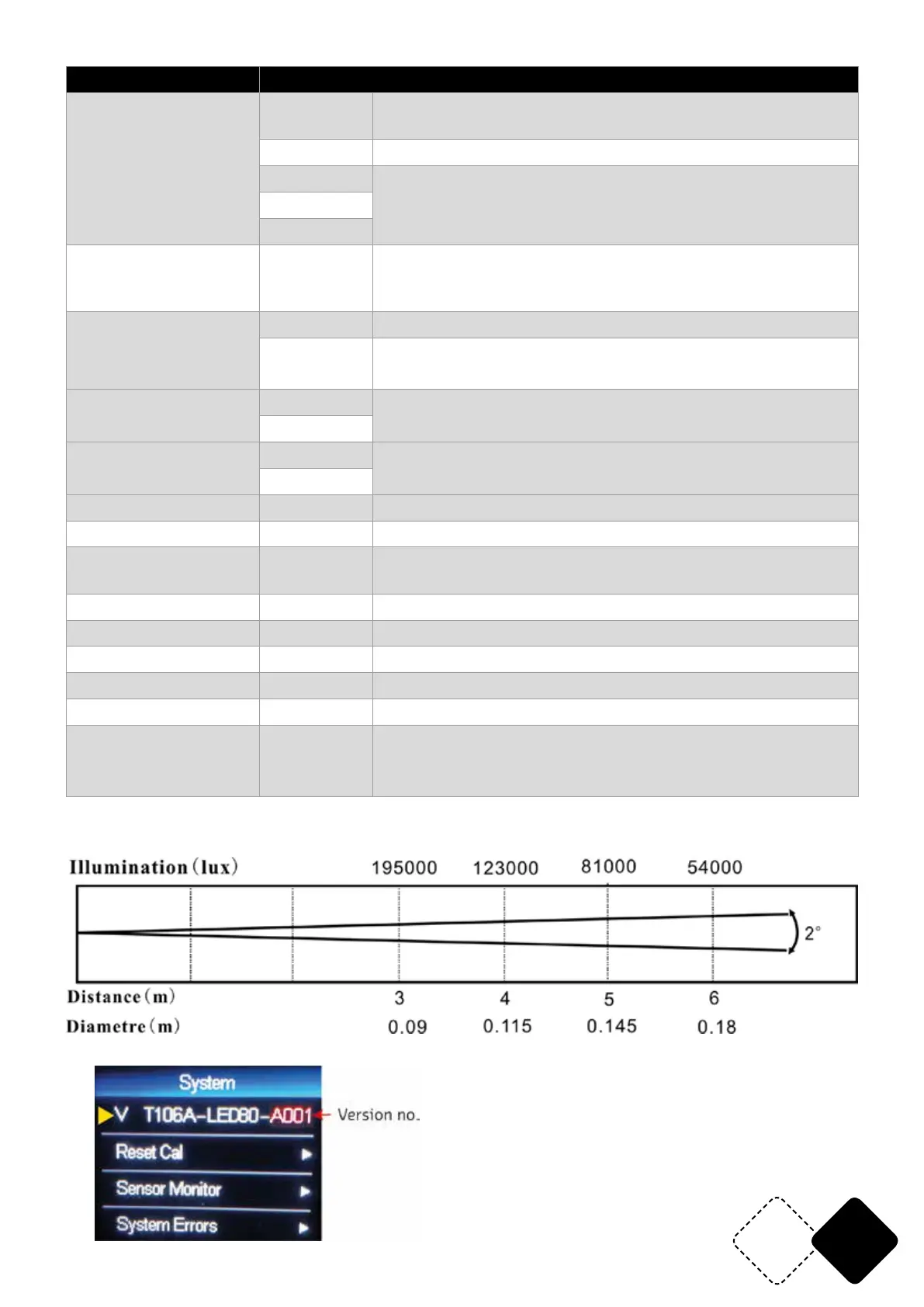

Option Description
Operating Mode DMX Slave status: Receive DMX signals from the controller or
Master unit
AUTO 1 Auto run;
AUTO 2 Master status: Auto run and send DMX signal to slave
Random
Sound
DMX Address 001-512 Press “OK” to enter into edit status. Then press UP/DOWN
to change the DMX address. Press “OK” to save and exit
edit status.
Channel Mode 16 CH Standard 16 Channel Mode, 17-20CH No Function
20 CH Extended 20 Channel Mode, 17-20CH for speed control.
(please check the details on the Channel table)
Invert Pan OFF ON for starting and ending, the default setting is OFF.
ON
Invert Tilt OFF ON for starting and ending, the default setting is OFF.
ON
Pan-Tilt Swap OFF
ON Exchange Pan/Tilt channel (include Pan/Tilt Fine)
Pan-Tilt Encoder ON Use encoder (optocoupler) to determine if the unit is out of
step and automatically correct the position
OFF Correct position without encoder (optocoupler)
DMX Signal KEEP Continue running as it is now
CLEAR All motors return to their position and stop running.
Linear Color ON Linear color change
OFF Nonlinear color change, half color change
Load Default Press the "OK" button to display the conrmation dialog,
press "OK" again.
The key restores the default settings
PHOTOMETRIC DIAGRAM:
SYSTEM
