Gas top burners
This appliance is supplied set for Natural Gas (NG) at a pressure of 4” WC. It must be converted to run on LP Gas (Propane) at a
pressure of 10” WC.
NATURAL GAS Left-hand Front Right-hand Rear Left-hand Rear Right-hand Front
Burner Type Ultra-rapid (WOK) Rapid Semi-rapid Semi-rapid
Maximum Heat Input 3.5 kW
12,000 Btu/hr
3.1 kW
10,600 Btu/hr
1.8 kW
6,150 Btu/hr
1.8 kW
6,150 Btu/hr
Injector Marking 170 155 118 118
Pressure Point Position Just below hotplate level, on the rear right hand side of the range.
Pressure Setting 4” w.g.
Burner Ignition H. T. Spark
PROPANE Left-hand Front Right-hand Rear Left-hand Rear Right-hand Front
Burner Type Ultra-rapid (WOK) Rapid Semi-rapid Semi-rapid
Maximum Heat Input 3.5 kW
12,000 Btu/hr
(250 g/h)
(0.5 l/h)
3.1 kW
10,600 Btu/hr
(221 g/h)
(0.43 l/h)
1.8 kW
6,150 Btu/hr
(128 g/h)
(0.26 l/h)
1.8 kW
6,150 Btu/hr
(128 g/h)
(0.26 l/h)
Injector Marking 105 94 72 72
Pressure Point Position Just below hotplate level, on the rear right hand side of the range.
Pressure Setting 10” w.g.
Burner Ignition H. T. Spark
Electric Ovens
240 V 60 Hz Single Phase 30 AMP
Top Oven Power Rating 3.0 kW
Lower Oven Power Rating 0.9 kW
The data plate is located on a pull-out plate behind the plinth cover.
7/16”
(11mm)
11/16”
(17.5mm)
9/16”
(14mm)
15/16”
(24mm)
1/2”
(12.5mm)
7/8”
(22mm)
L.H.F. Hotplate Burner R.H.R. Hotplate Burner L.H.R. and R.H.F. Hotplate Burner

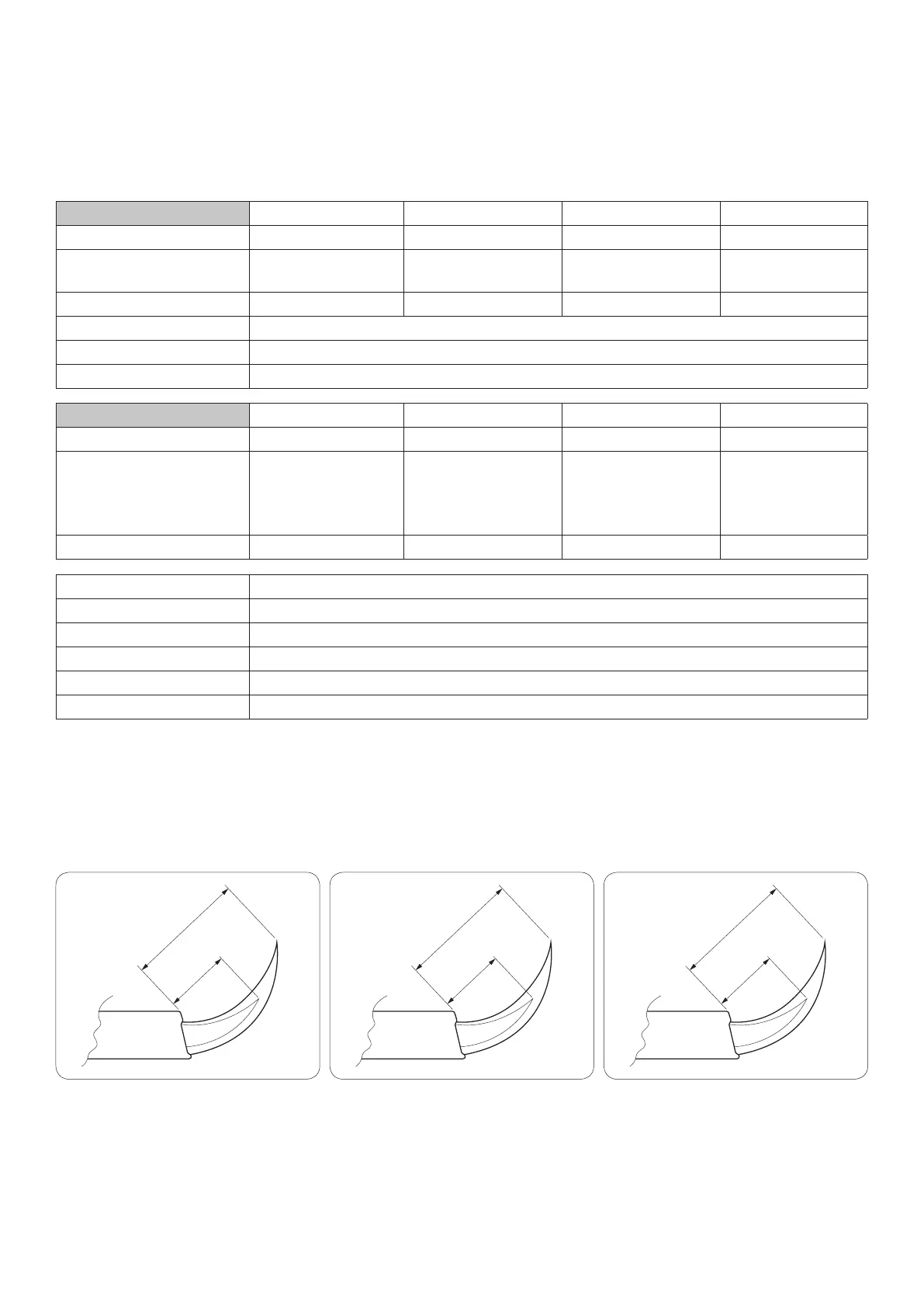

Technical data
Typical section view of burner flames
