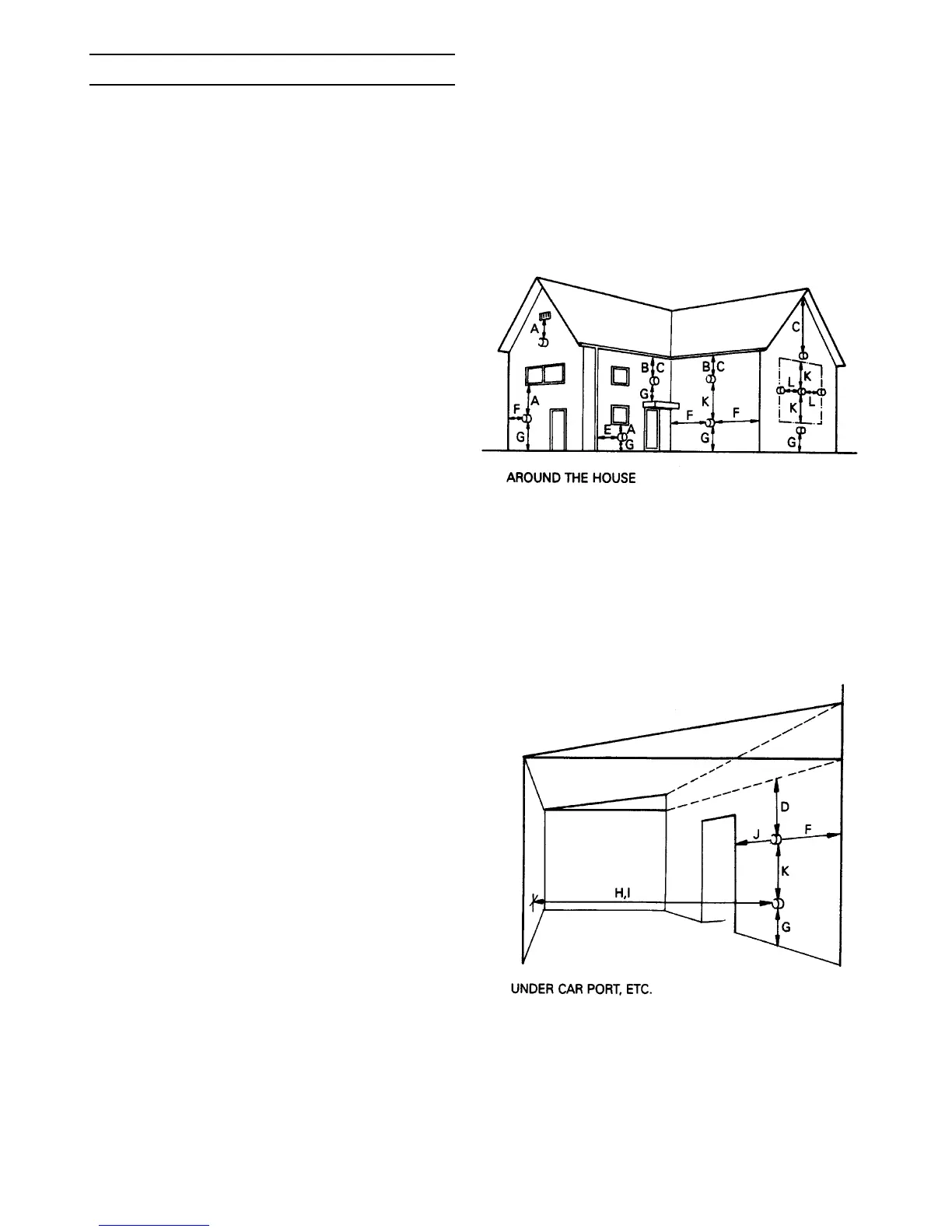

Minimum siting dimensions for Flue terminals
Position Minimum Spacing
mm
A Directly below an openable window,
air vent, or an other ventilation opening 300
B Below gutter, drain/soil pipe 75
C Below eaves 200
D Below a balcony or car port roof 200
E From vertical drain pipes and soil pipes 150
F From internal or external corners 200
G Above adjacent ground or balcony level 300
H From surface facing the terminal 600
I Facing terminals 1200
J From opening (door/window)
in car port into dwelling 1200
K Vertical from a terminal 1500
L Horizontally from a terminal 300
5
FIG.2
DESN511053
DESN511052
