AUTOMATIC CONTROL
When the cooker is in use the temperature control knob should be in the mid section of the green
band, with the indicator within the black band on the AIMS handset. It may be necessary to adjust
the control knob slightly within the green band to achieve this.

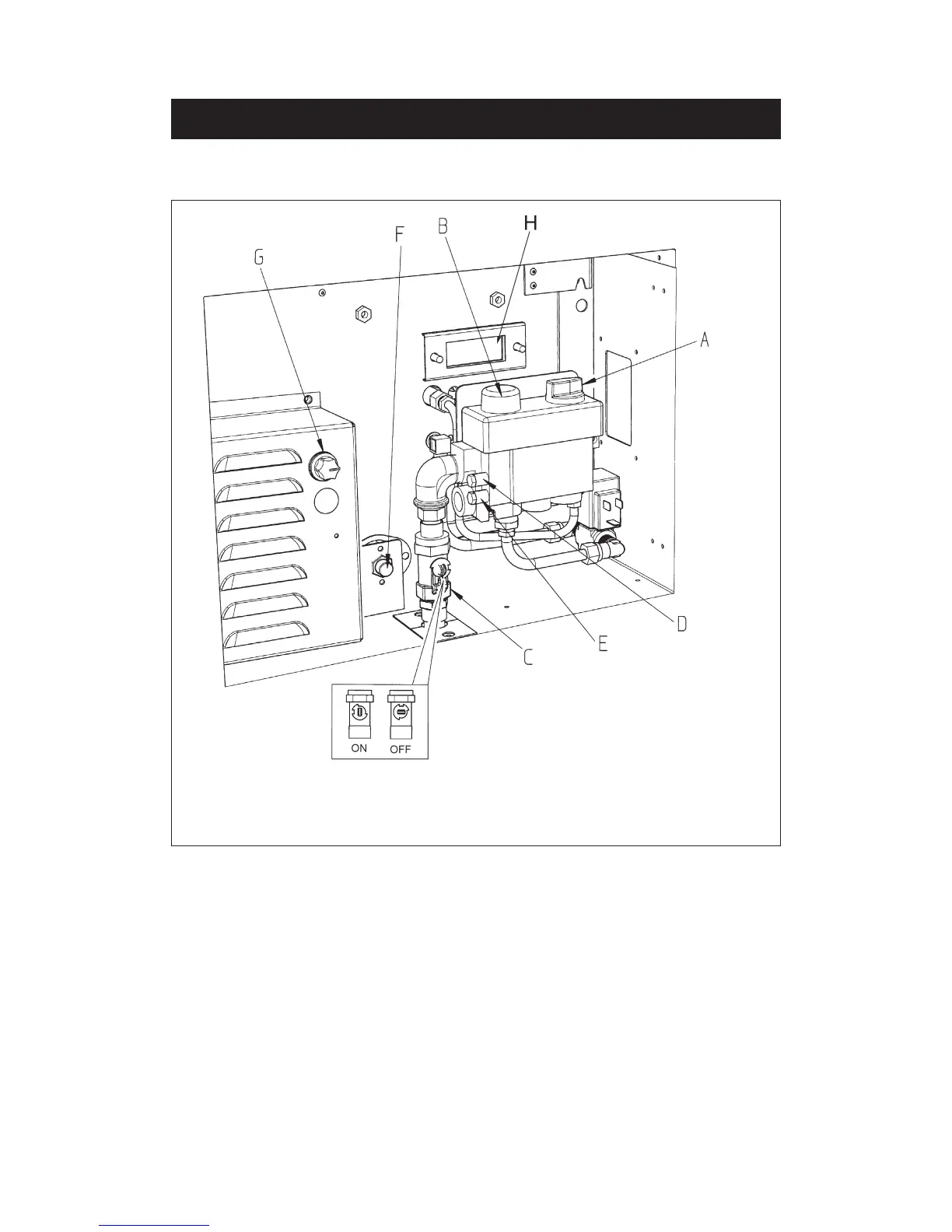

Fig. 3
A - ON/OFF CONTROL KNOB
B - TEMPERATURE CONTROL KNOB
C - GAS COCK
D - INLET PRESSURE TEST NIPPLE
E - BURNER PRESSURE TEST NIPPLE
F - FLUE SAFETY DEVICE
G - AIMS CONTROL KNOB
H - VIEWING WINDOW
DESN 515491
