TECHNICAL DATA - AGA GC3 (POWER FLUE) WITH MODULE

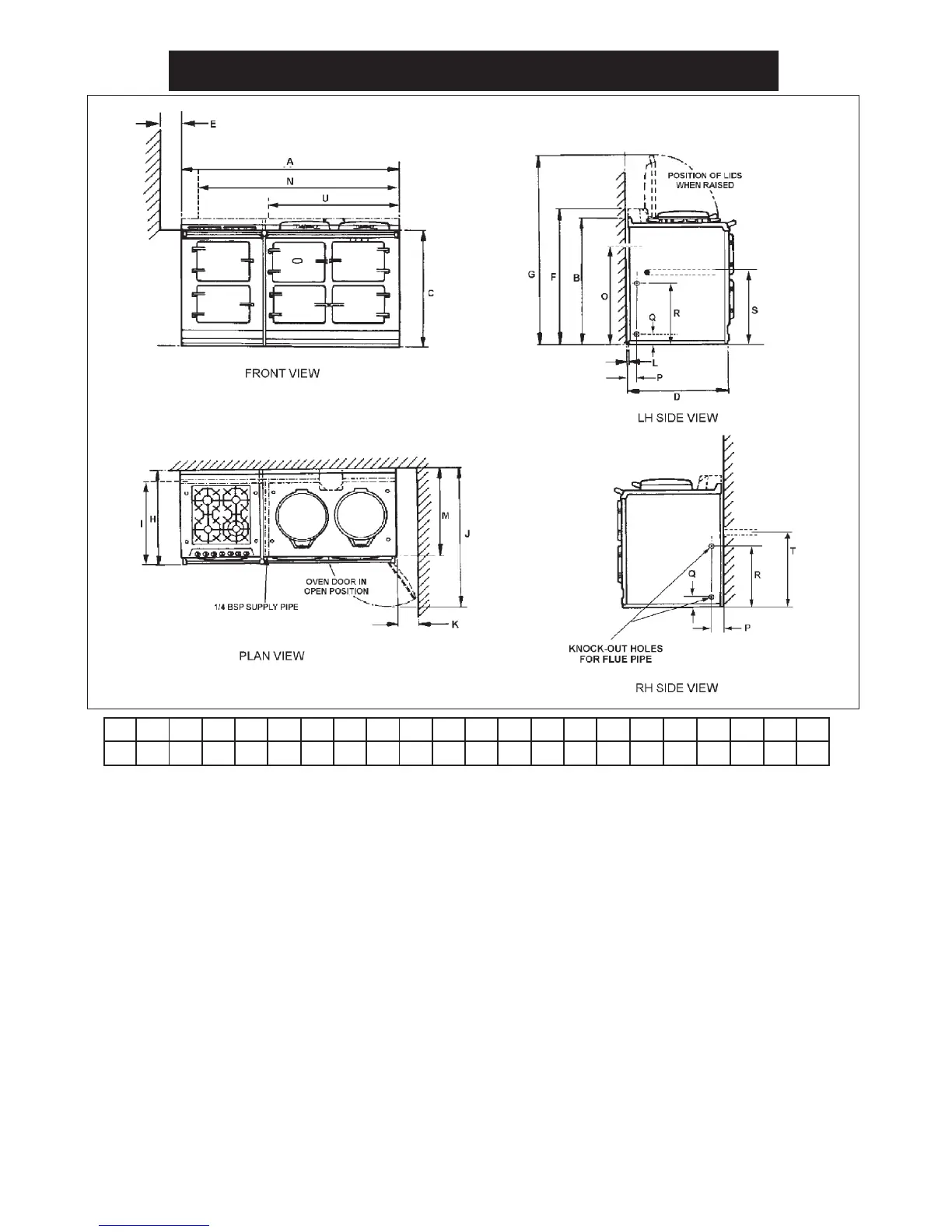

Fig. 1A
DESN 513392 B
ABCD
E
F G H J I* K L M N** O**
PQRSTU
mm
1598
889 851 679 60
967 1330 756
1125
685
116 3 698
1533
800 48 65 375 500 595 960
***
* GAS SUPPLY PIPE FOR GC3 (PF) WHEN FITTED TO MODULE
** POSITION FOR GAS SUPPLY PIPE TO MODULE
*** WHEN ADJACENT TO COMBUSTIBLE MATERIAL
COOKER DIMENSIONS
When surveying for a cooker installation the actual clearance required for the ‘body’ of the
appliance should be increased overall by 10mm beyond the figures quoted above. This allows
safe margin to take into account the natural dimensional variations found in major castings. In
particular the width across the appliance recess could be critical.
