AGA Ludlow Electric Standard Stove
Installation & User Manual
DO NOT COVER THIS STOVE – this will void the warranty

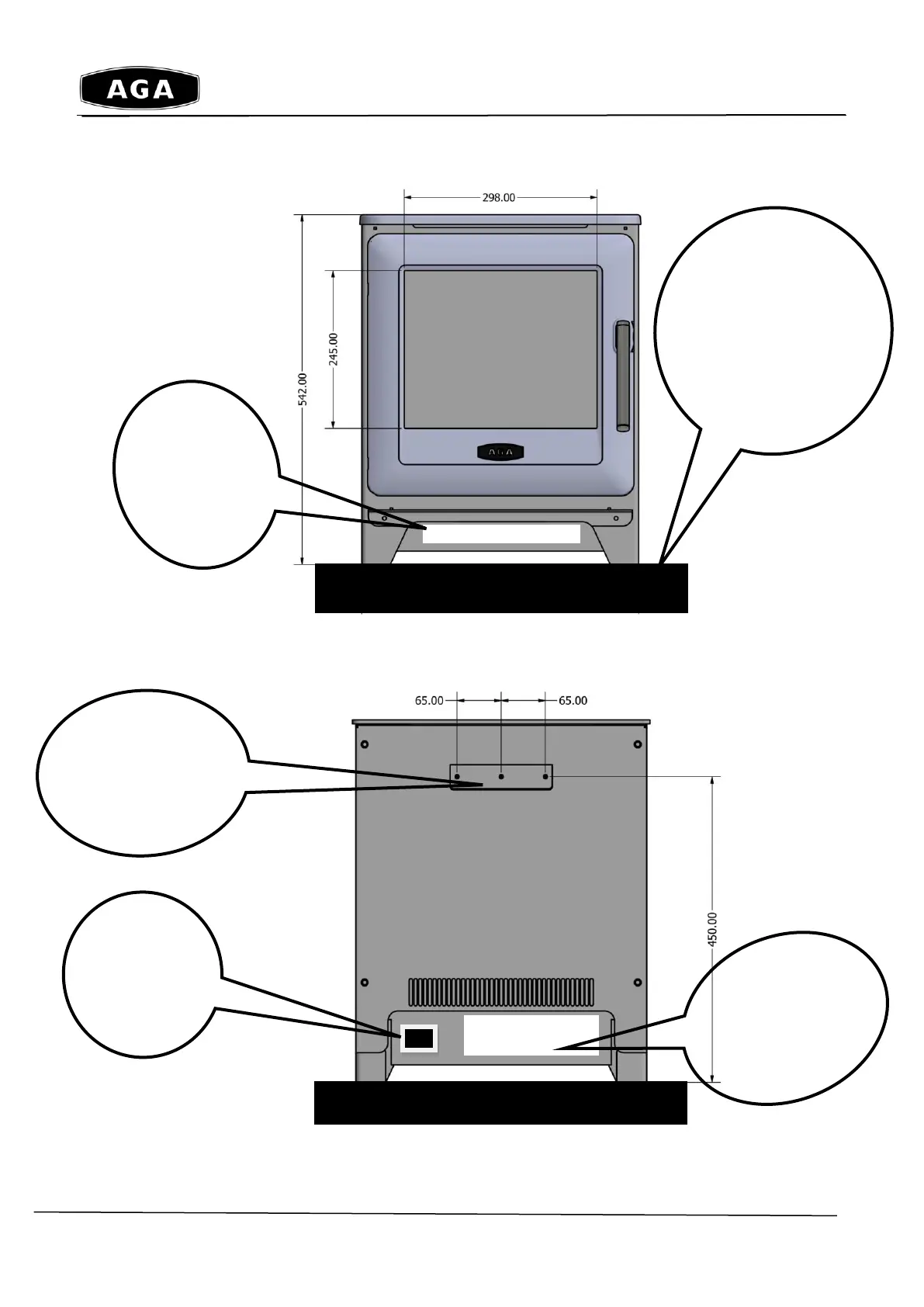

Above Front View - Hot Air Output Grill must be kept clear– shown in white box above
Rear View - Cool Air Intake Grill shown in white box above, this must be kept clear of any foreign objects
such as Pet Hairs & Carpet Fluff, this must be regularly cleaned so the vents are clear of foreign objects,
such as dust, debris & fibres.
Mains
Socket
Plugs in
Here
Rear Cool Air
Inlet Vent
KEEP CLEAR
Hot Air
Output
Vent
KEEP
CLEAR
Must be Installed
onto a
Non-Combustible
12mm thick
Hearth
Rear Wall
Fixing Bracket
Must be
Installed
