AGA Ludlow Electric Standard Stove
Installation & User Manual

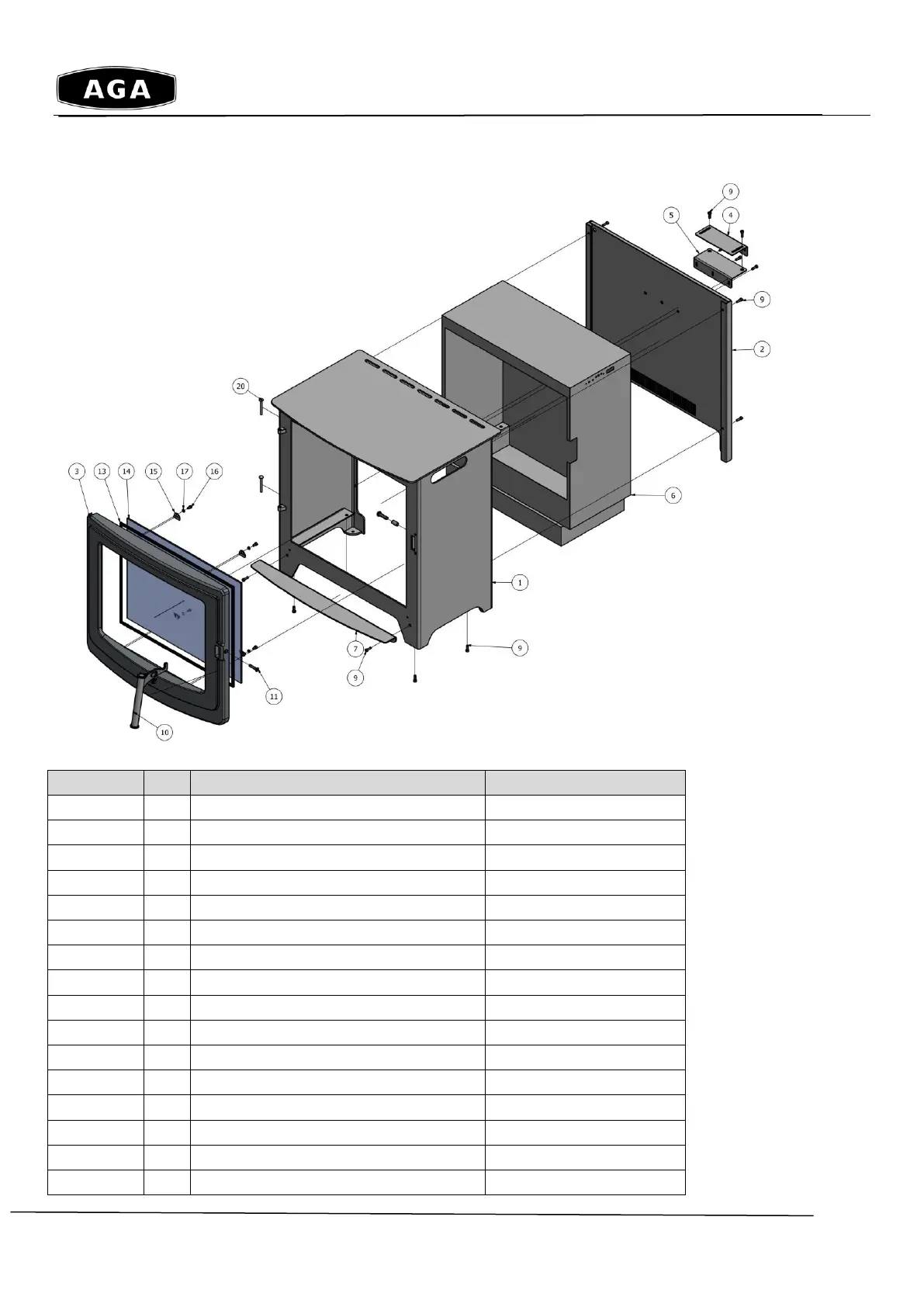

EXPLODED VIEW & PARTS LIST
Reference
Qty
Description
Part Number
1
A5E Ludlow Main Body
10500
2
A5E Rear Heat Shield
10501
3
A5 Ludlow Cast Door
10502
4
Wall Mounting Bracket 1
10503
5
Wall Mounting Bracket 2
10504
6
EC5 Electric Firebox Assembly
10505
7
Front Ash Lip
10506
8 & 9
6
M5 X 15 CAP SCREW
10507
10
1
Handle Assembly
10508
11
1
M6 CSK x 30mm Screw Handle Pivot
10509
12
M6 CSK x 25mm Screw
10510
13
A5 Glass Gasket
10511
14
A5 Standard Electric AGA Glass
10512
15, 16 & 17
4
Glass Clips & Fixing Screws & Washers
10513
18 & 19
1
Handle Roller and Fixing Screw
10514
20
2
Door Hinge Pins
10515
