AGA Ludlow - FITTING THE REAR WALL FIXING BRACKET

Page 14
AGA Ludlow Electric Standard Stove
Installation & User Manual

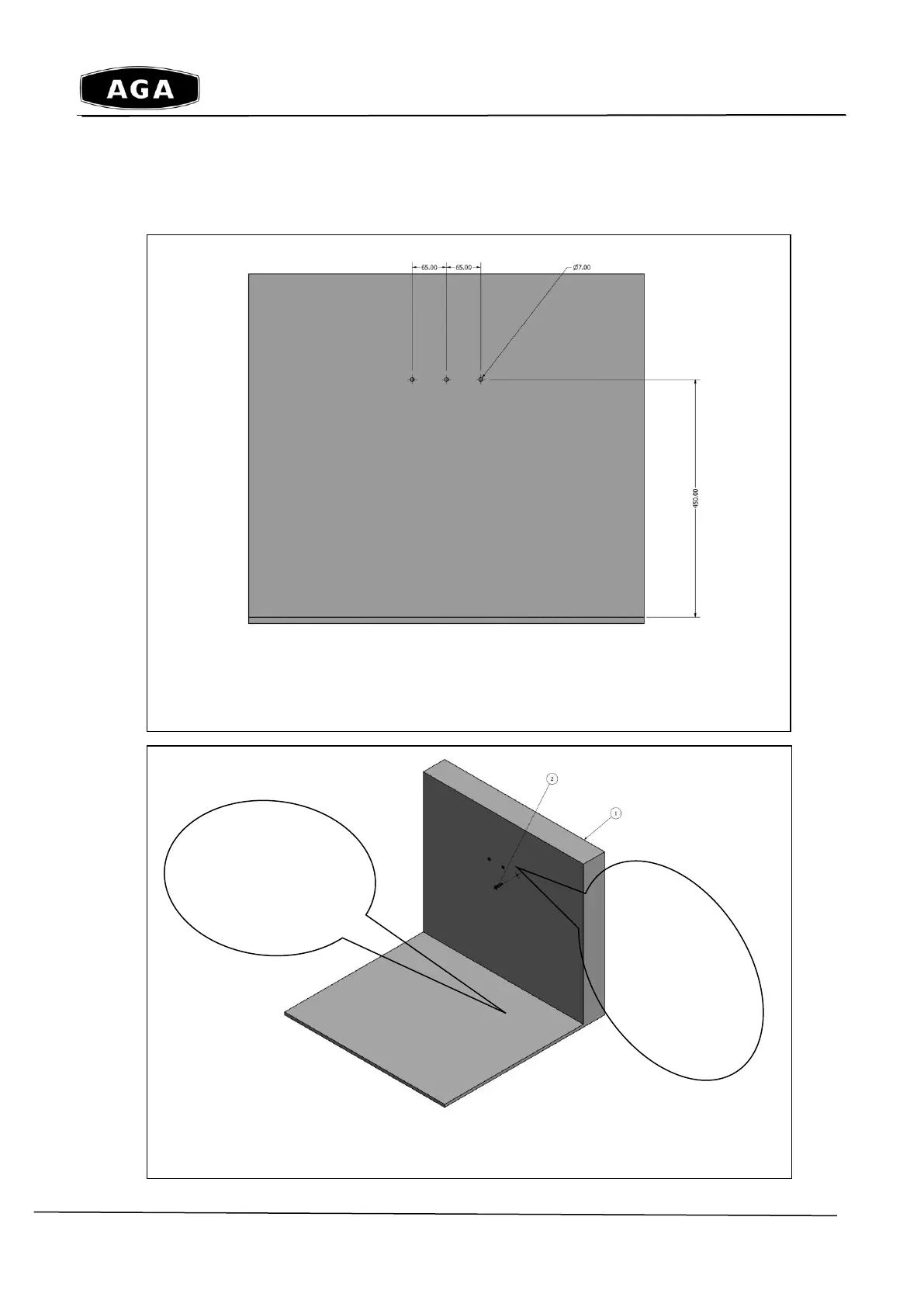

Step 1 - Drill x 3 holes - 7mm diameter x 40mm deep to suit brown masonry
wall plug. - 65mm centres 450mm from base level into the rear wall
Step 2 - Insert 3 X 30mm Long Brown Rawplugs into the 3 drilled holes in
the back wall (marked as item 1)
FITTING THE REAR WALL FIXING BRACKET
This bracket must be fitted to the rear of the stove to ensure that the stove will not tip forward
when the stove door is opened
12mm thick
Non-Combustible
Hearth
Back Wall,
which the
Stove
Bracket will
be Mounted
onto
