AGA Ludlow Electric Standard Stove
Installation & User Manual

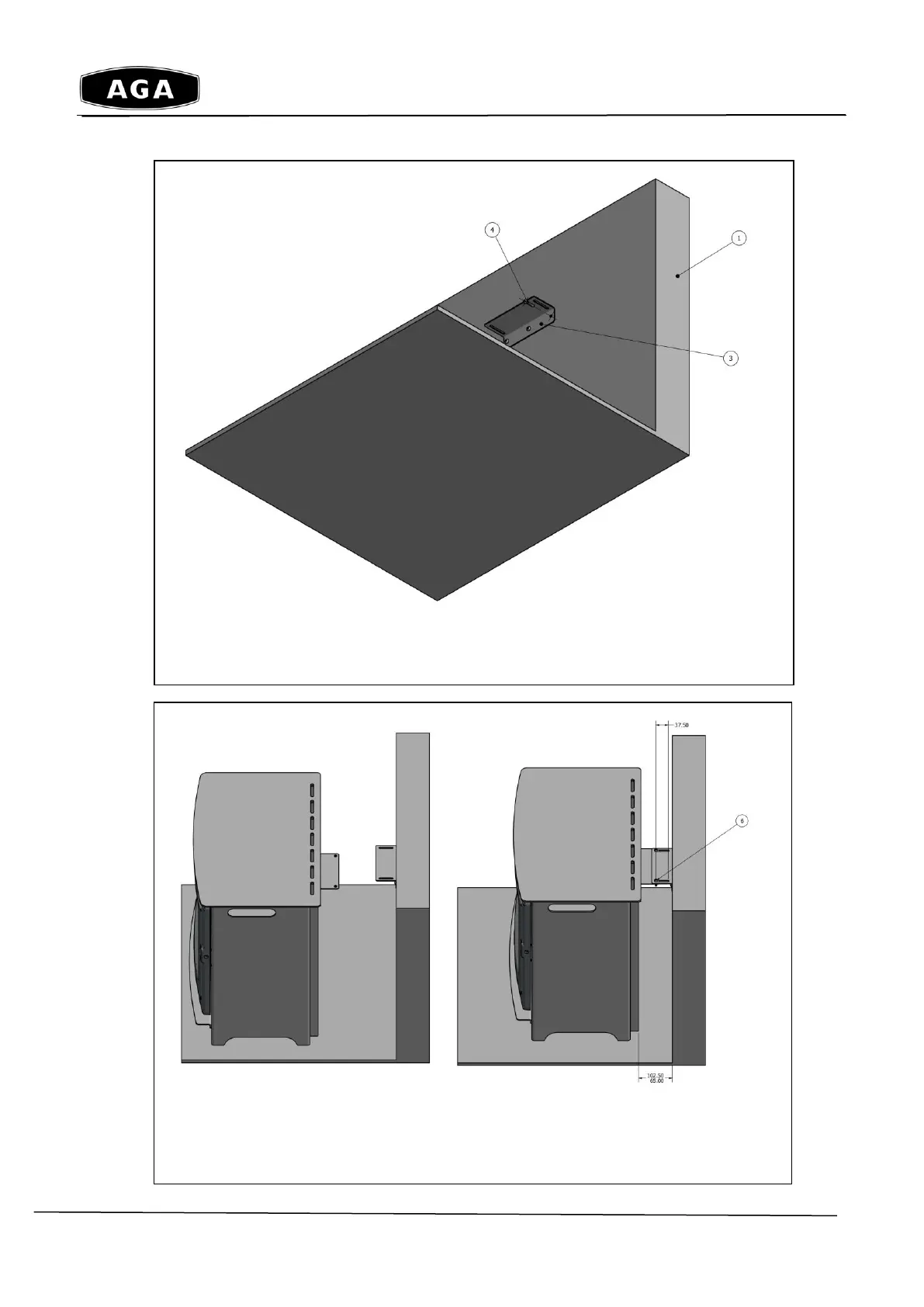

Step 3 - Fix wall bracket (item 3) with 3 x no. M5 x 25mm long posi drive
screws (item 4) as shown Note orientation of the bracket
Step 4 - Offer up the fire to the wall bracket so the two brackets align fit the
2x no. M5 x 20mm long cap screw supplied into bracket adjust distance to
wall to suit (max 102.5mm, min 65mm) tighten screws
