AGCO ROGATOR 418 - Instrument Panel

CONTROLS
03.5
Controls
11-04
RoGator 418
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
22
21
20
19
18

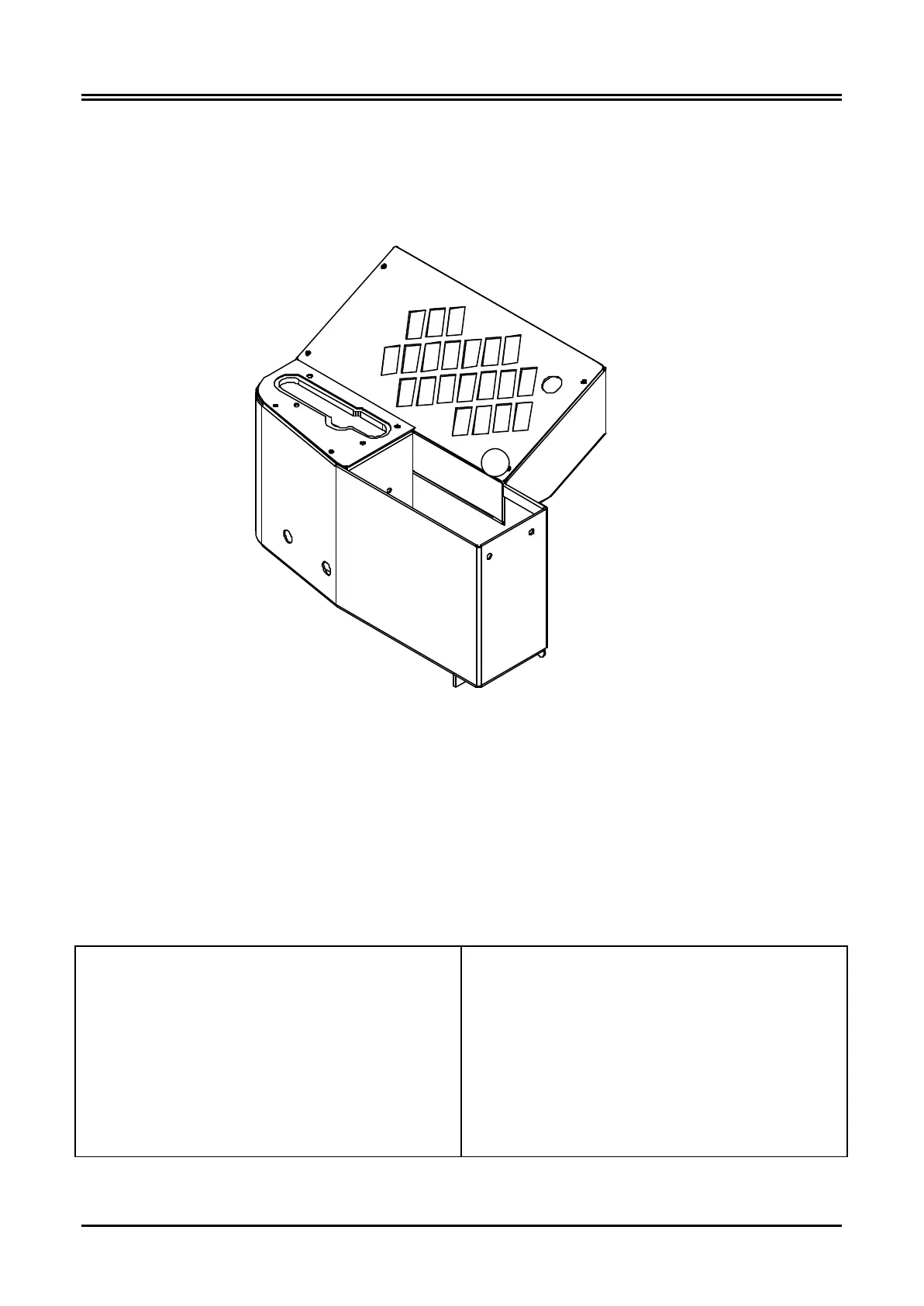

Instrument Panel
1. Field / Road switch
2. All-wheel-steering On / Off / Auto
3. Regulating computer On / Off switch
4. Engine RPM On/Off switch
5. Engine RPM switch
6. Hydraulic Enable switch
7. Not used
8. Spraypump On / Off switch
9. Dubbel foam switch
10. Differential Lock On / Off switch (Optional)
11. Folding / Unfolding Booms switch
12. Second Fold switch
13. Half Fold switch
14. Purge switch
15. Regulation sprayer Auto / Manual switch
16. Increase / Decrease pressure spray system
switch
17. Not used
18. Power Socket cigaret lighter style.
19. Track width lock switch.
20. Front axle track width switch.
21. Rear axle track width switch.
22. Not used
23. Warning light Green Differential Lock On
23
