SECTION 5 RAD TABLE OPERATION
The RAD Table is mandatory for Double Panel System Room
Configuration, but it is not present in Single Panel Systems, where
the RAD Wall Stand DR tilting is used when it is required to
complete examinations with the DR Detector in horizontal
position.

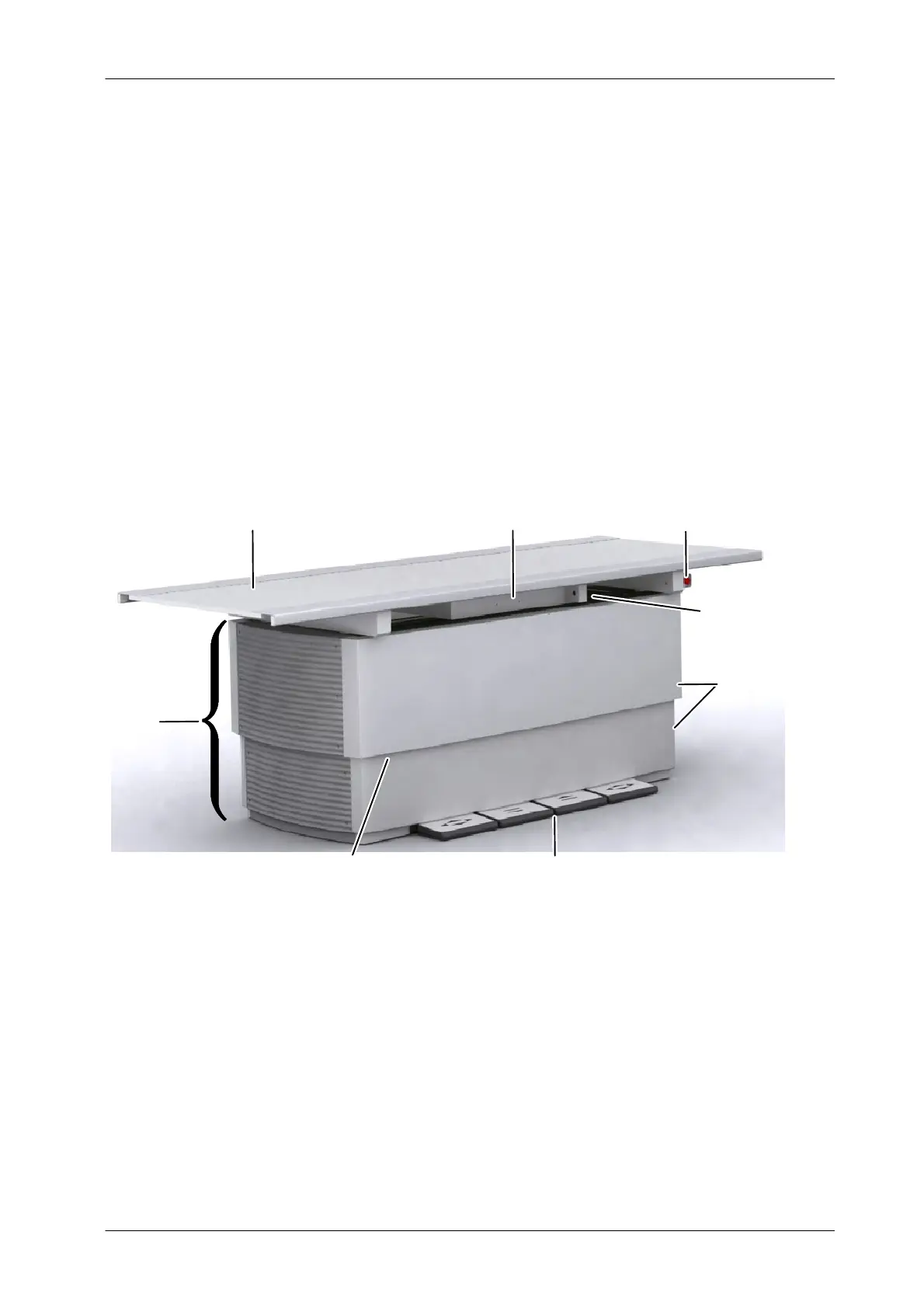

Illustration 5-1
RAD Table
Tabletop
Control Pedals
Base
Base Covers
DR Detector Emergency OFF Switch
Active Workstation Indicator
DR Detector Handle
BASE & COVERS
The RAD Table elevating system mechanism, Power Supply and all electronics
are located in the Base. It supports also the Tabletop and the DR Detector Box.
Covers are in charge of protecting the electronics and the mechanics of the
Table Base and give the final appearance to the equipment.
