5.2 TABLETOP MOVEMENTS
The Tabletop can be raised, lowered and four way moved by pressing the
corresponding Control Pedal.

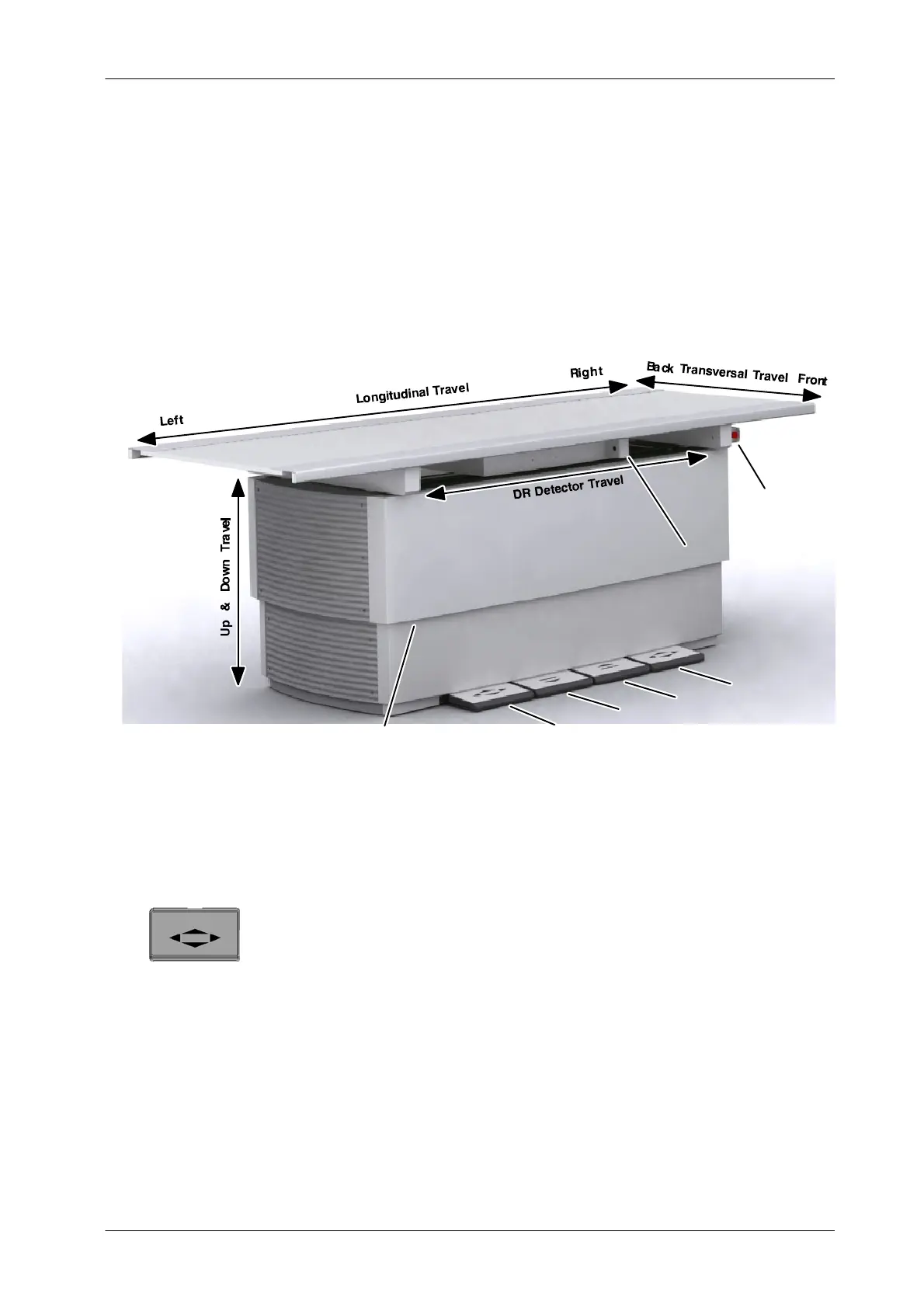

Illustration 5-3
Tabletop travels and Control Pedals
Active Workstation Indicator
Tabletop Motion
Lower
Raise
Tabletop Motion
Emergency
OFF Switc h
DR Detector Assembly
5.2.1 HORIZONTAL MOVEMENTS
For changing the longitudinal or the transverse position of the Tabletop with
respect to the DR Detector:
1. Press and hold down one of both TABLETOP MOTION Pedals.
2. Move the Tabletop in all directions while the Control Pedal remains held
down.
3. Release the Control Pedal when the Tabletop is at the desired position.
It will get locked in that position.
The total T ransverse travel of the Tabletop is 240 mm (9.4”) and the default total
Longitudinal travel is 980 20 mm (38.6 0.8”). Maximum Longitudinal travel
is 1090 10 mm (42.9 0,4”) when the Table has been modified in field to
allow a longer travel to the left (refer to Illustration 11- 1 and Illustration 11-2).
