THE CEILING SUSPENSION CAN MOVE FREELY ALONG THE
LONGITUDINAL AND TRANSVERSE AXIS WHEN MINIMAL
FORCE IS APPLIED. THE CEILING SUSPENSION MOVEMENT
WILL STABILIZE AT THE CENTER POSITION.
THE TABLETOP CAN MOVE FREELY IN LONGITUDINAL AND
TRANSVERSE DIRECTION WHEN MINIMAL FORCE IS
APPLIED. IF THE PATIENT IS STILL ON THE TABLE, HE MAY
NEED HELP TO STEP DOWN FROM THE RAD TABLE.

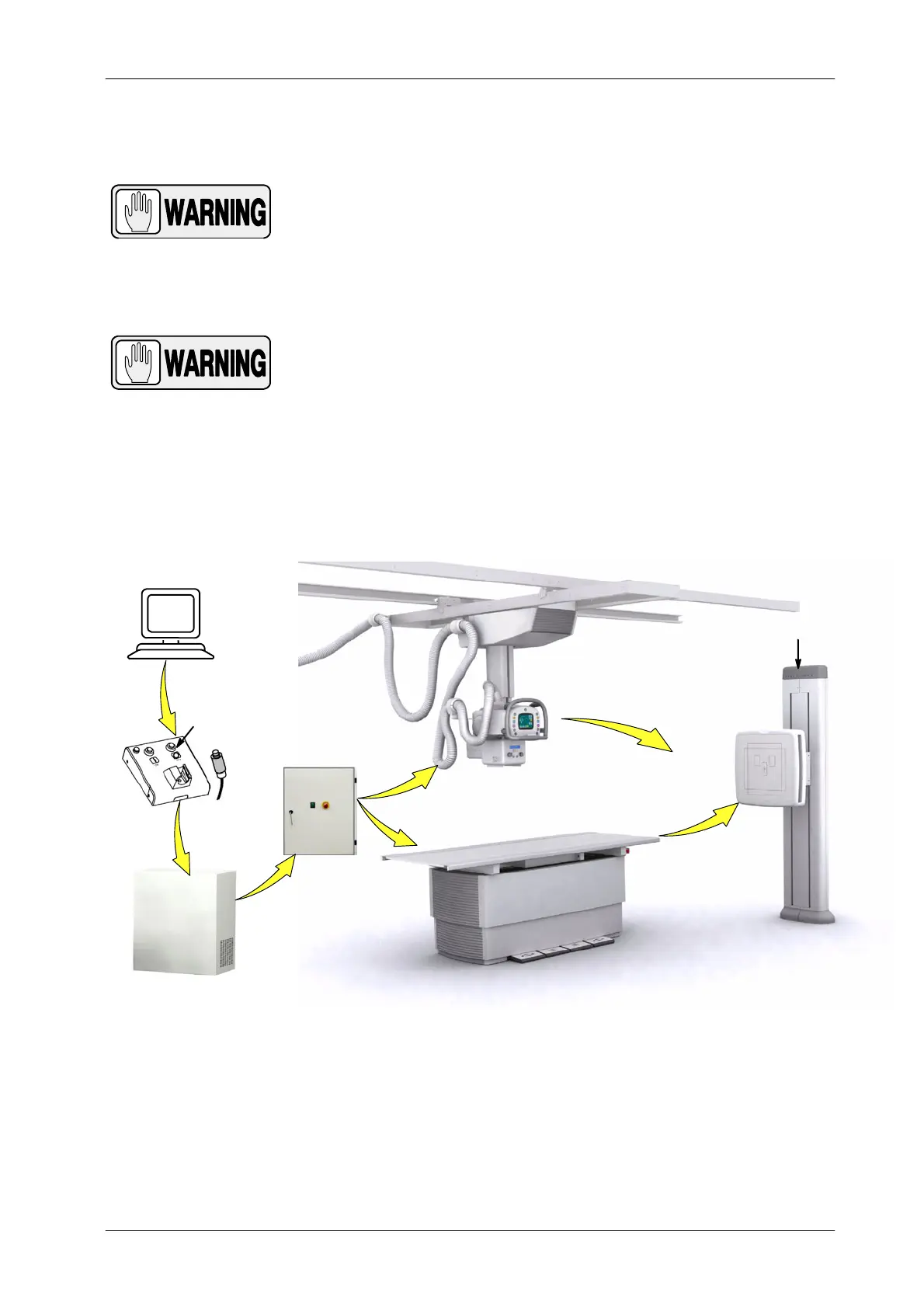

Illustration 3-2
Shutdown sequence
NX Workstation
X-ray Control
Room
Electrical Cabinet
Ceiling Suspension
ON/OFF Indicator
RAD Wall Stand DR
RAD Table
OFF
1
2
3
4
4
4
r
* Single Panel
* Double Panel
4
