Troubleshooting
To construct your own dummy load
To construct your own dummy load
1 Obtain a connector that is compatible with the connector J2A and J2B
on the Low Voltage Power Supply.
2 Connect load resistors to the connector as follows:

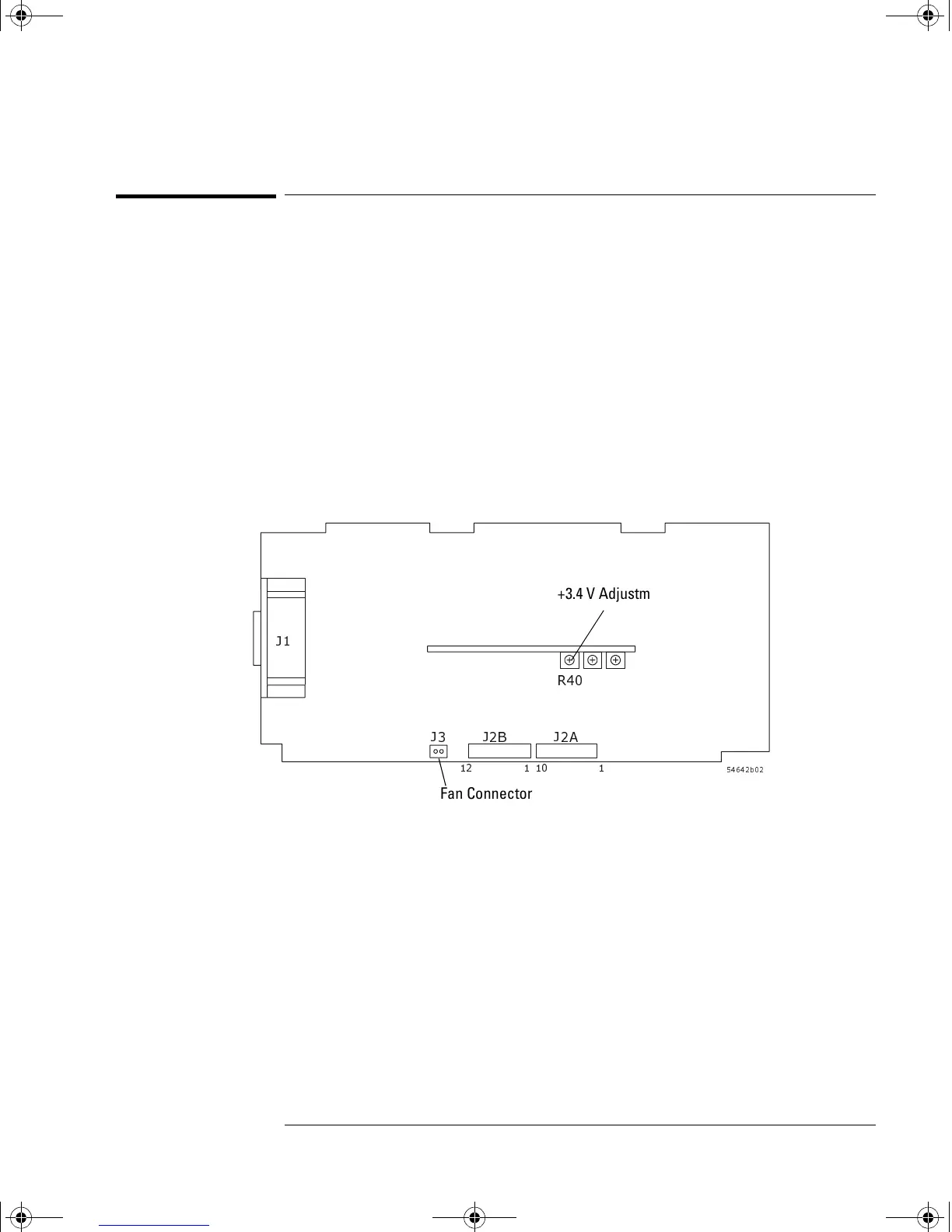

Figure 5-1
Location of the Low Voltage Power Supply Connectors
Connector Load (Amps) Resistor Watts Connect to Pin Ground to Pin
+5.1 V 4.4 A 1.2 Ω 22 W 10, 11, 12 13, 14
-5.2 V 1.6 A 3.25 Ω 8 W 4, 5 6
+15.75 V 1.2 A 13.1 Ω 20 W 1 2
+3.4 V 4 A 0.825 Ω 13 W 15, 16, 17, 18 19, 20
-$- -%
5
-
Fan Connector
+3.4 V Adjustment
