Agilent Technologies 654 A Series User Manual

User Connections and Considerations
40

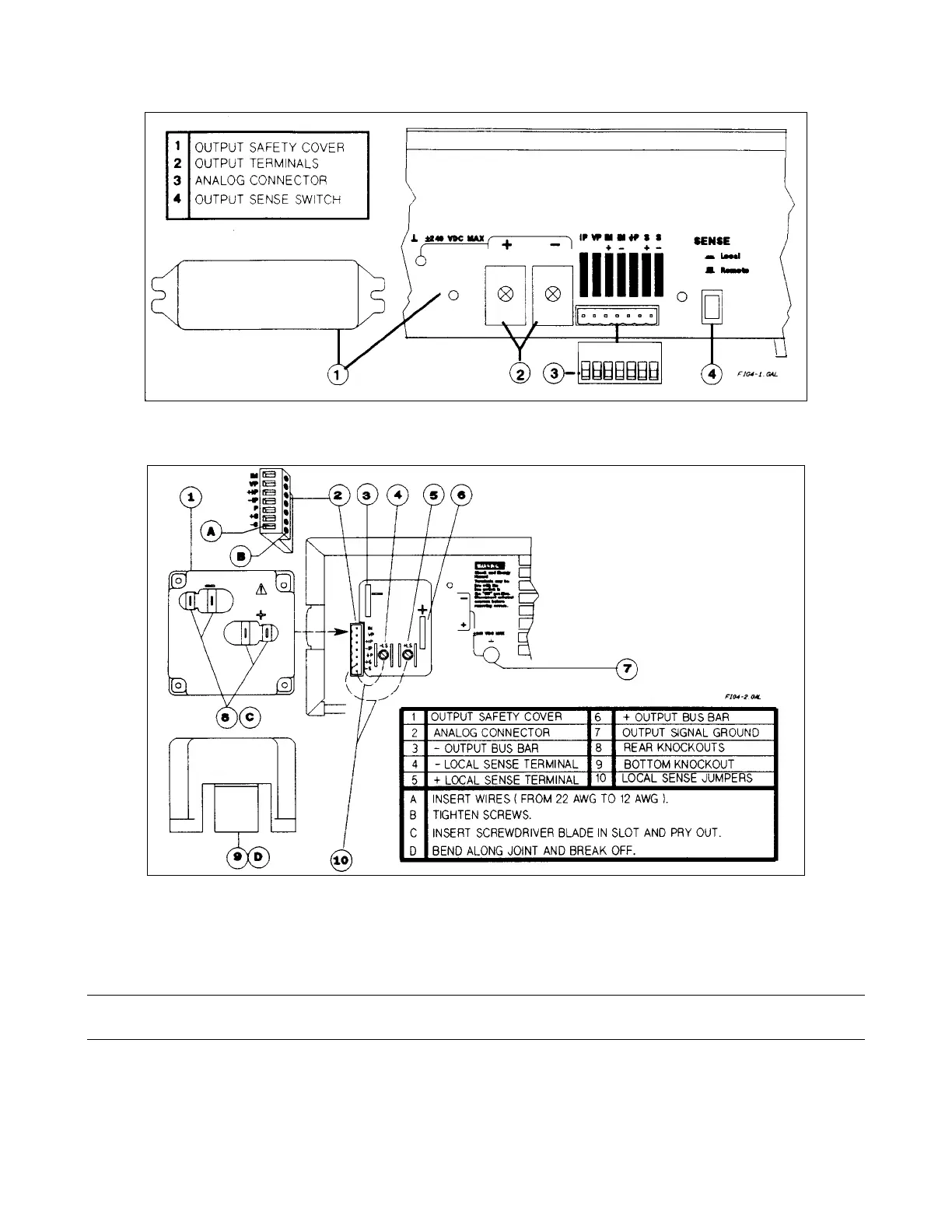

Figure 4-1. Series 654xA and 655xA Rear Panel Connections
Figure 4-2. Series 657xA Rear Panel Connections
The connector accepts wire sizes from AWG 22 to AWG 12. The purpose of each analog pin is described in Table 4-1.
Note In addition to specific wiring instructions given in this chapter, it is good engineering practice to twist and
shield all signal wires to and from the analog connector.
