Alignment Procedures
93
After testing of a channel is completed, the program will check if any errors have occurred (the subprogram is called in line
850 and performed in lines 3670 - 3780). If an error has occurred, a message will be sent to the output device (CRT).
After all outputs are tested without errors, the CAL MODE will be turned off, and the calibration constants stored.

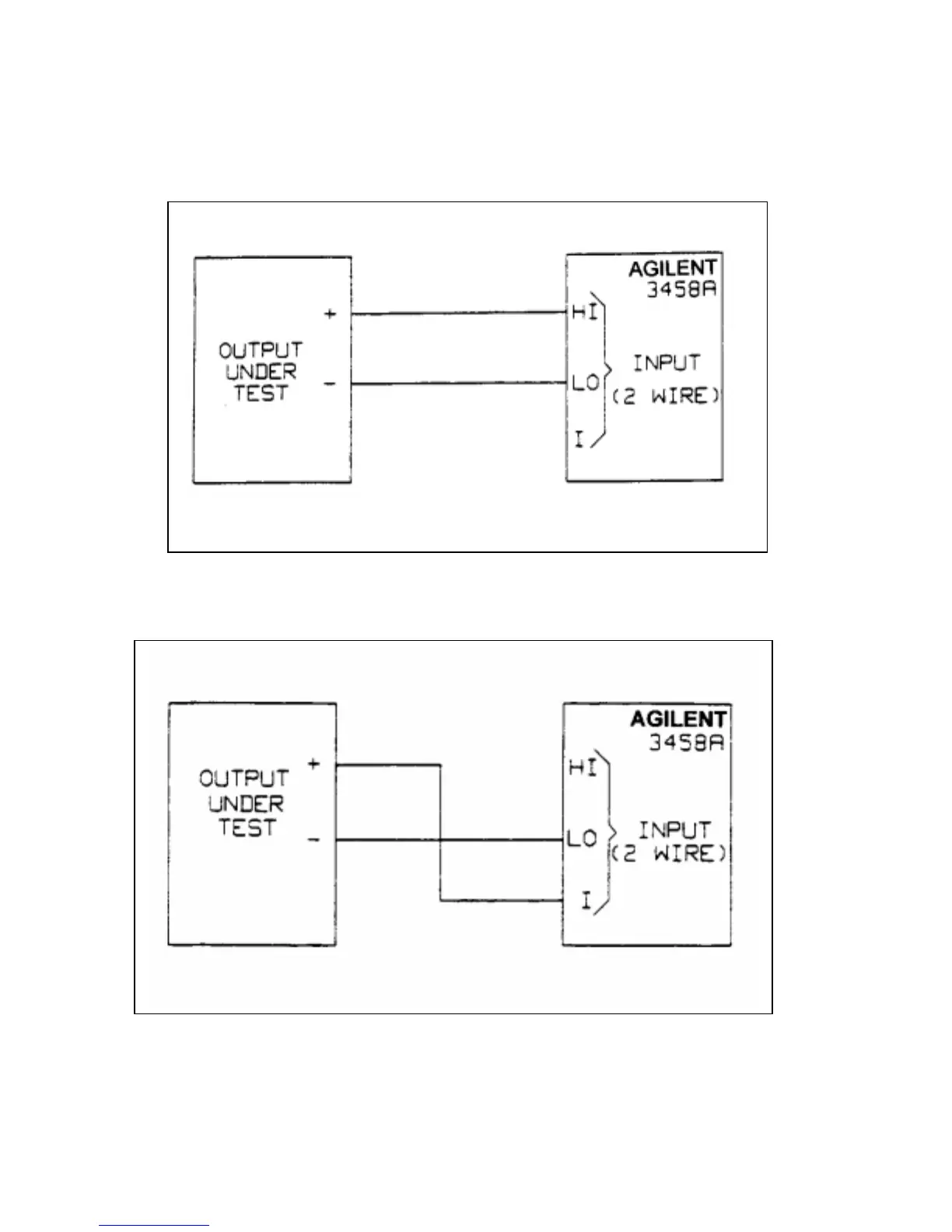

Figure A-1
Figure A-2
Figure A-3
Figure A-4
Figure A-1
Figure A-5
Figure A-2
