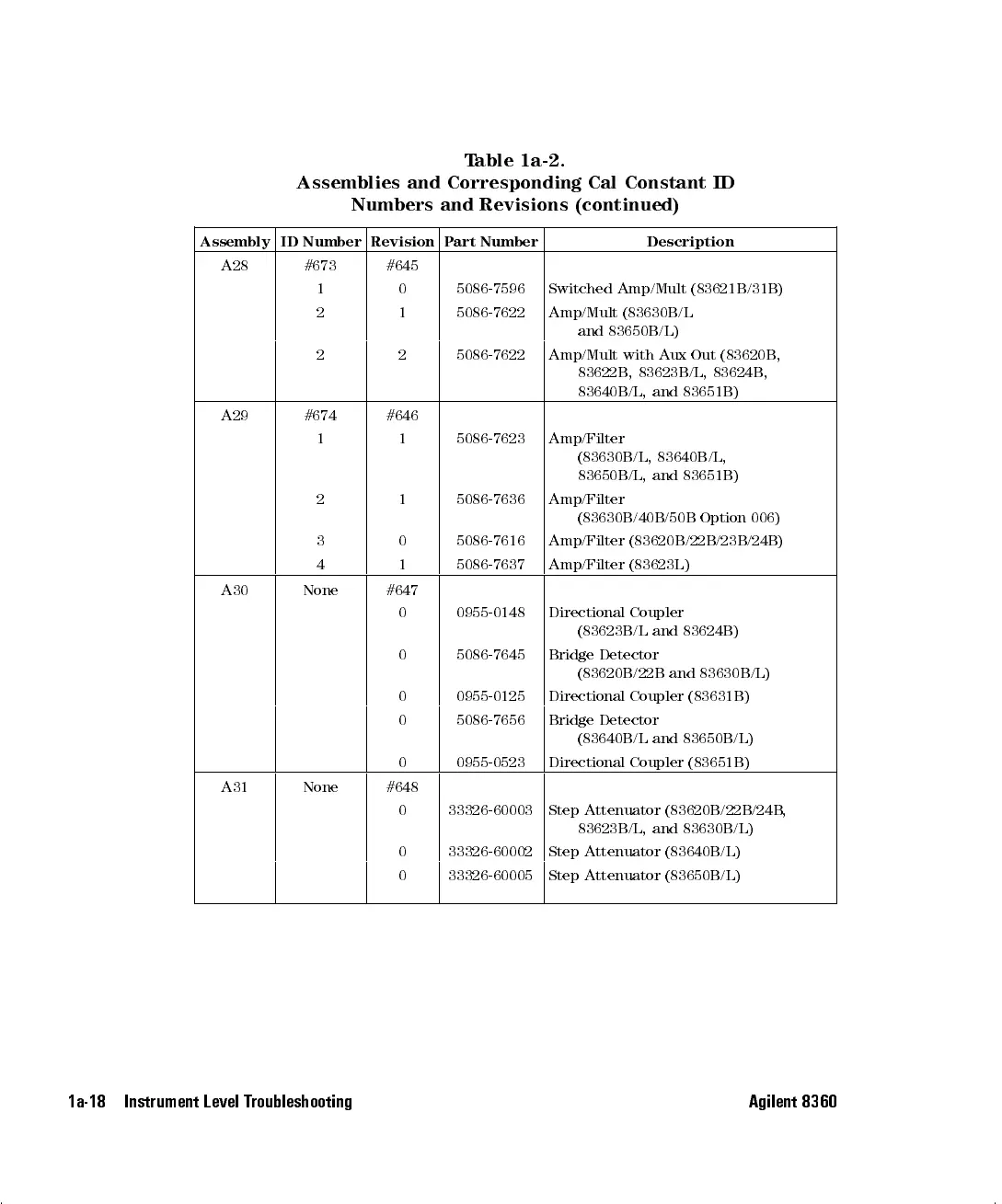

Table 1a-2.
Assemblies and Corresponding Cal Constant ID
Numbers and Revisions (continued)
Assembly ID Number Revision Part Number Description
A28 #673 #645
1 0 5086-7596 Switched Amp/Mult (83621B /31B)
2 1 5086-7622 Amp/Mult (83630B /L
and 83650B /L)
2 2 5086-7622 Amp/Mult with Aux Out (83620B ,
83622B , 83623B /L, 83624B ,
83640B /L, and 83651B )
A29 #674 #646
1 1 5086-7623 Amp/Filter
(83630B /L, 83640B /L,
83650B /L, and 83651B )
2 1 5086-7636 Amp/Filter
(83630B /40B/50B Option 006)
3 0 5086-7616 Amp/Filter (83620B /22B/23B/24B)
4 1 5086-7637 Amp/Filter (83623L )
A30 None #647
0 0955-0148 Directional Coupler
(83623B /L and 83624B )
0 5086-7645 Bridge Detector
(83620B /22B and 83630B /L)
0 0955-0125 Directional Coupler (83631B )
0 5086-7656 Bridge Detector
(83640B /L and 83650B /L)
0 0955-0523 Directional Coupler (83651B )
A31 None #648
0 33326-60003 Step Attenuator (83620B /22B/24B,
83623B /L, and 83630B /L)
0 33326-60002 Step Attenuator (83640B /L)
0 33326-60005 Step Attenuator (83650B /L)
