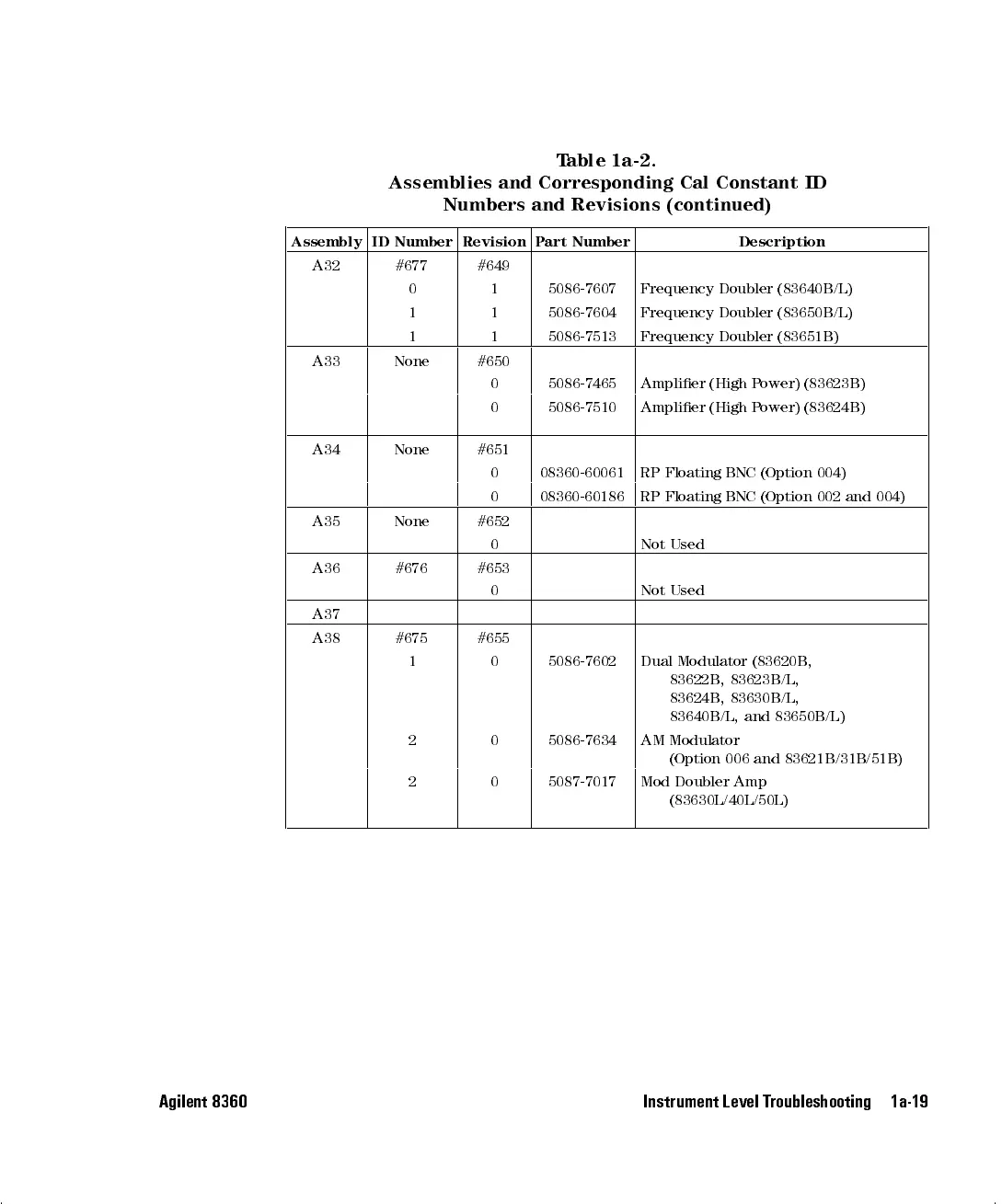

Table 1a-2.
Assemblies and Corresponding Cal Constant ID
Numbers and Revisions (continued)
Assembly ID Number Revision Part Number Description
A32 #677 #649
0 1 5086-7607 Frequency Doubler (83640B /L)
1 1 5086-7604 Frequency Doubler (83650B /L)
1 1 5086-7513 Frequency Doubler (83651B )
A33 None #650
0 5086-7465 Amplier (High Power) (83623B )
0 5086-7510 Amplier (High Power) (83624B )
A34 None #651
0 08360-60061 RP Floating BNC (Option 004)
0 08360-60186 RP Floating BNC (Option 002 and 004)
A35 None #652
0 Not Used
A36 #676 #653
0 Not Used
A37
A38 #675 #655
1 0 5086-7602 Dual Modulator (83620B ,
83622B , 83623B /L,
83624B , 83630B /L,
83640B /L, and 83650B /L)
2 0 5086-7634 AM Modulator
(Option 006 and 83621B /31B/51B)
2 0 5087-7017 Mod Doubler Amp
(83630L/40L/50L)
Agilent 8360 Instrument Level Troubleshooting 1a-19
