Agilent Technologies 8753ES Datasheet

5
Agilent 8753ES (50-ohm systems)
Type-N test ports
Configuration
Network analyzer 8753ES
Standard and Option 006
Calibration kit 85032B
Test-port cables 11857D
System dynamic range
30 kHz to 50 kHz 70 dB
1
50 kHz to 300 kHz 90 dB
1
300 kHz to 16 MHz 100 dB
16 MHz to 3 GHz 110 dB
Option 014 108 dB
3 GHz to 6 GHz 105 dB
Option 014 103 dB
Measurement Port Characteristics
Frequency Range
Corrected 30 kHz– 300 kHz– 1.3 GHz– 3 GHz–
300 kHz
2
1.3 GHz 3 GHz 6 GHz
Directivity 50 dB 50 dB 47 dB 40 dB
Source match 49 dB 42 dB 36 dB 31 dB
Load match 50 dB 50 dB 47 dB 40 dB
Reflection ±(0.005 dB ±(0.009 dB ±(0.019 dB ±(0.070 dB
tracking +0.02 dB/°C) +0.01 dB/°C) +0.02 dB/°C) +0.03 dB/°C)
Transmission ±(0.014 dB ±(0.013 dB ±(0.026 dB ±(0.065 dB
tracking +0.02 dB/°C) +0.01 dB/°C) +0.02 dB/°C) +0.03 dB/°C)

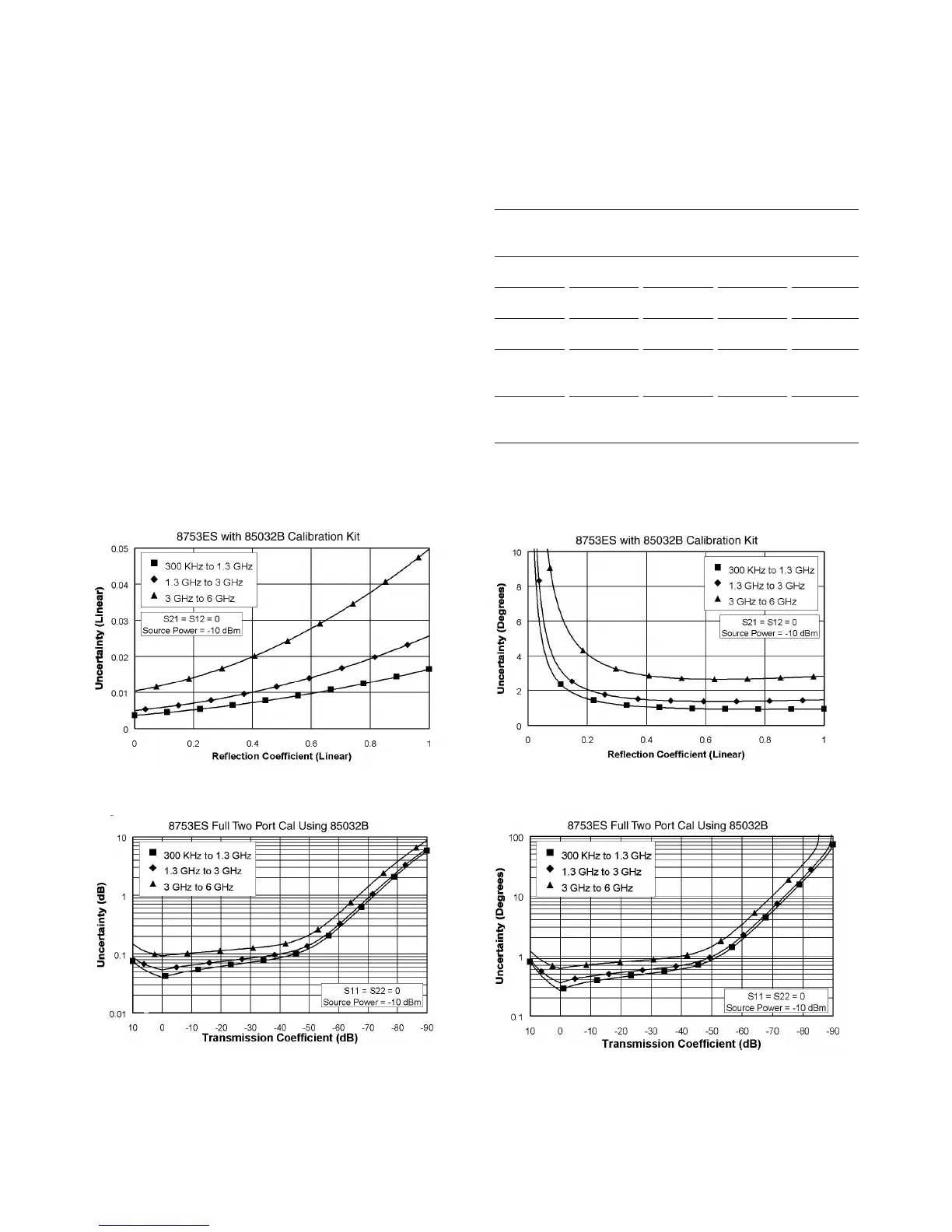

Transmission uncertainty
1. Typical below 300 kHz.
2. Typical performance.
Magnitude Phase
Magnitude Phase
Reflection uncertainty
