Agilent Technologies 8753ES Datasheet

6
Agilent 8753ES (50-ohm systems)
3.5-mm test ports
Configuration
Network analyzer 8753ES
Standard and Option 006
Calibration kit 85033D
Test-port cables 11857D
System dynamic range
30 kHz to 50 kHz 70 dB
1
50 kHz to 300 kHz 90 dB
1
300 kHz to 16 MHz 100 dB
16 MHz to 3 GHz 110 dB
Option 014 108 dB
3 GHz to 6 GHz 105 dB
Option 014 103 dB
Measurement Port Characteristics
Frequency Range
Corrected 30 kHz– 300 kHz– 1.3 GHz– 3 GHz–
300 kHz
2
1.3 GHz 3 GHz 6 GHz
Directivity 49 dB 46 dB 44 dB 38 dB
Source match 49 dB 44 dB 41 dB 37 dB
Load match 49 dB 46 dB 44 dB 38 dB
Reflection ±(0.010 dB ±(0.005 dB ±(0.007 dB ±(0.009 dB
tracking +0.02/°C) +0.01/°C) +0.02/°C) +0.03/°C)
Transmission ±(0.016 dB ±(0.014 dB ±(0.022 dB ±(0.048 dB
tracking +0.02/°C) +0.01/°C) +0.02/°C) +0.03/°C)

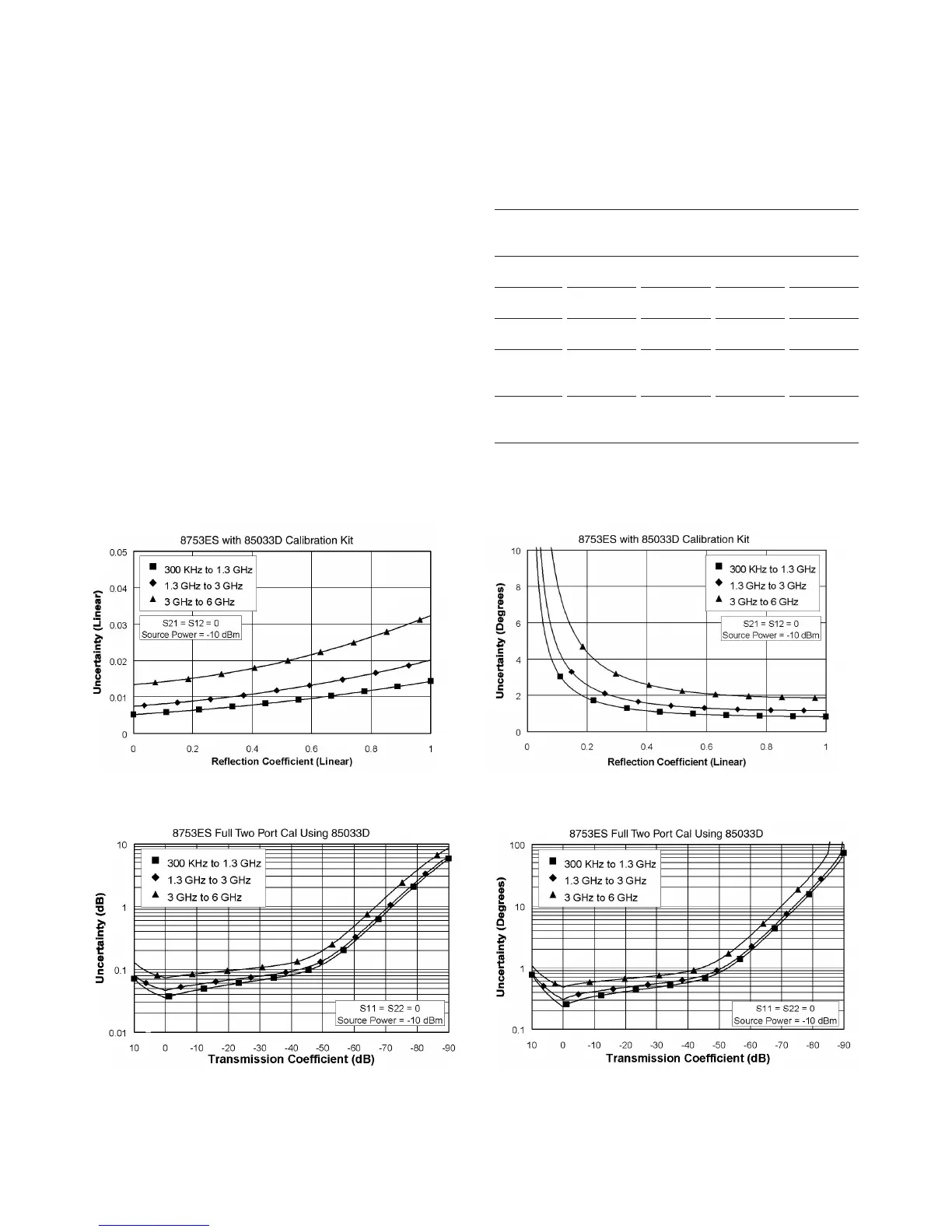

System Performance Summaries
1. Typical below 300 kHz.
2. Typical performance.
Transmission uncertainty
Magnitude Phase
Magnitude Phase
Reflection uncertainty
