Service
Analog Bandwidth - Maximum Frequency Check
4-17
14 Select the Voltage menu item until 2/3 appears.
15 Select the
Vpp menu item.
16 Set the signal generator to a 1 MHz sine wave with a peak-to-peak
amplitude of about 6 divisions as it appears on the oscilloscope screen.

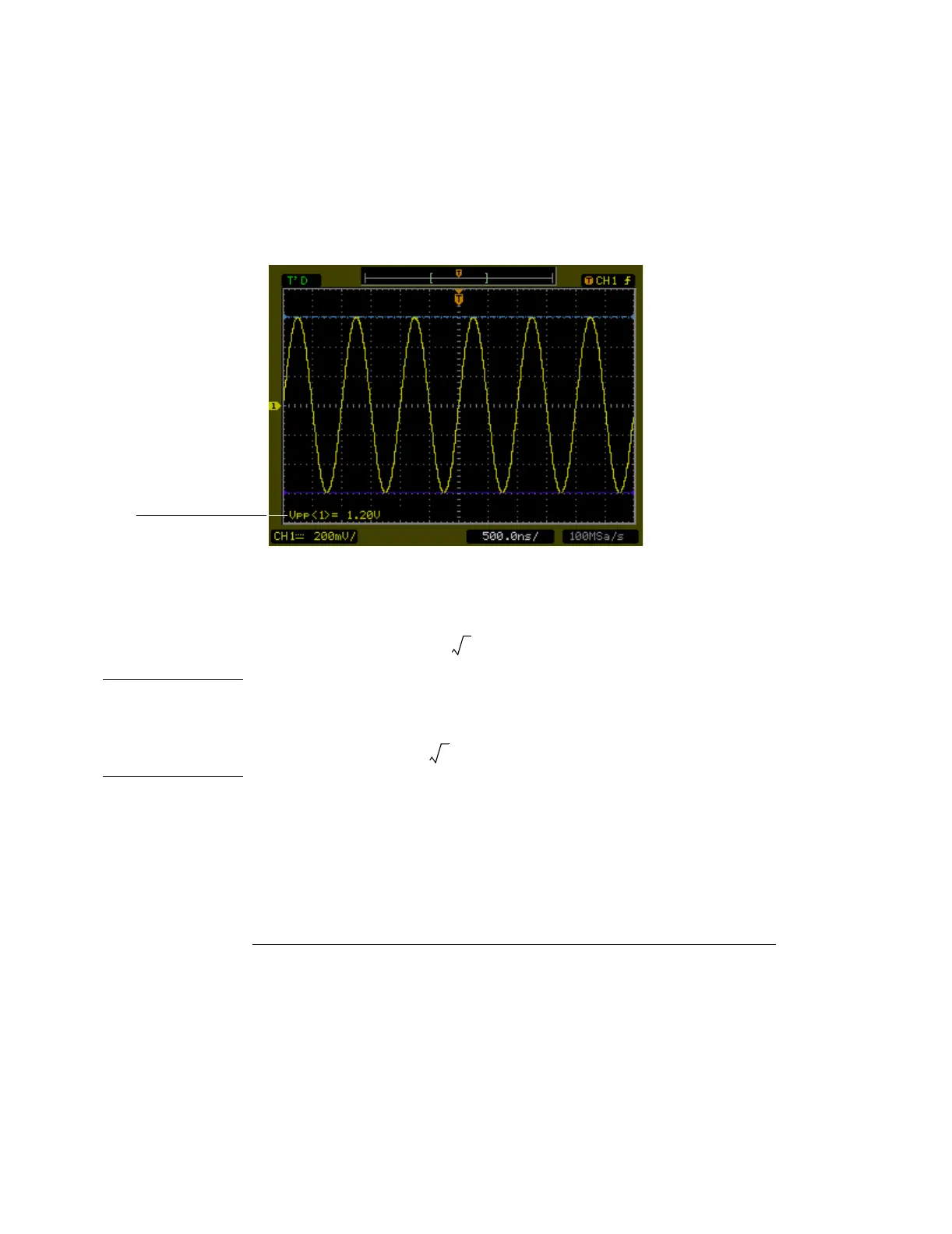

Figure 4-9
17 Using the Vpp reading, calculate the Vrms value using the following
expression and record it in the Performance Test Record (page 4-22):
Example For Vpp = 1.20 V
Vpp reading
Vout
1MHz
Vpp
1MHz
22
----------------------=
Vout
1MHz
1.20
22
----------
1.20
2.828
-------------
424 mV===
To Next Page
