Agilent Technologies E3643A User Manual

Appendix Service Information

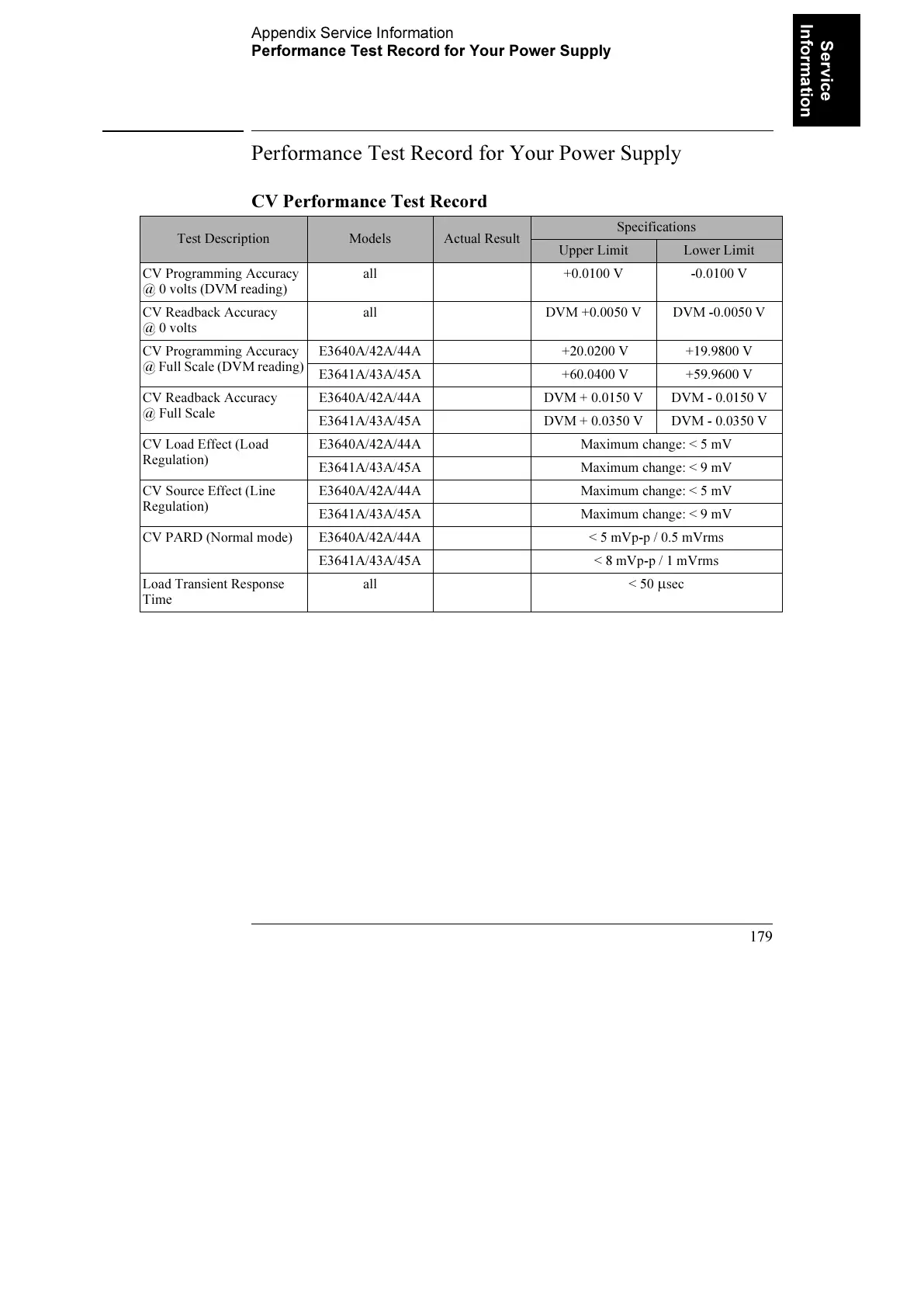

Performance Test Record for Your Power Supply
179
Service
Information
Performance Test Record for Your Power Supply
CV Performance Test Record
Test Description Models Actual Result
Specifications
Upper Limit Lower Limit
CV Programming Accuracy
@ 0 volts (DVM reading)
all +0.0100 V -0.0100 V
CV Readback Accuracy
@ 0 volts
all DVM +0.0050 V DVM -0.0050 V
CV Programming Accuracy
@ Full Scale (DVM reading)
E3640A/42A/44A +20.0200 V +19.9800 V
E3641A/43A/45A +60.0400 V +59.9600 V
CV Readback Accuracy
@ Full Scale
E3640A/42A/44A DVM + 0.0150 V DVM - 0.0150 V
E3641A/43A/45A DVM + 0.0350 V DVM - 0.0350 V
CV Load Effect (Load
Regulation)
E3640A/42A/44A Maximum change: < 5 mV
E3641A/43A/45A Maximum change: < 9 mV
CV Source Effect (Line
Regulation)
E3640A/42A/44A Maximum change: < 5 mV
E3641A/43A/45A Maximum change: < 9 mV
CV PARD (Normal mode) E3640A/42A/44A < 5 mVp-p / 0.5 mVrms
E3641A/43A/45A < 8 mVp-p / 1 mVrms
Load Transient Response
Time
all < 50
msec
