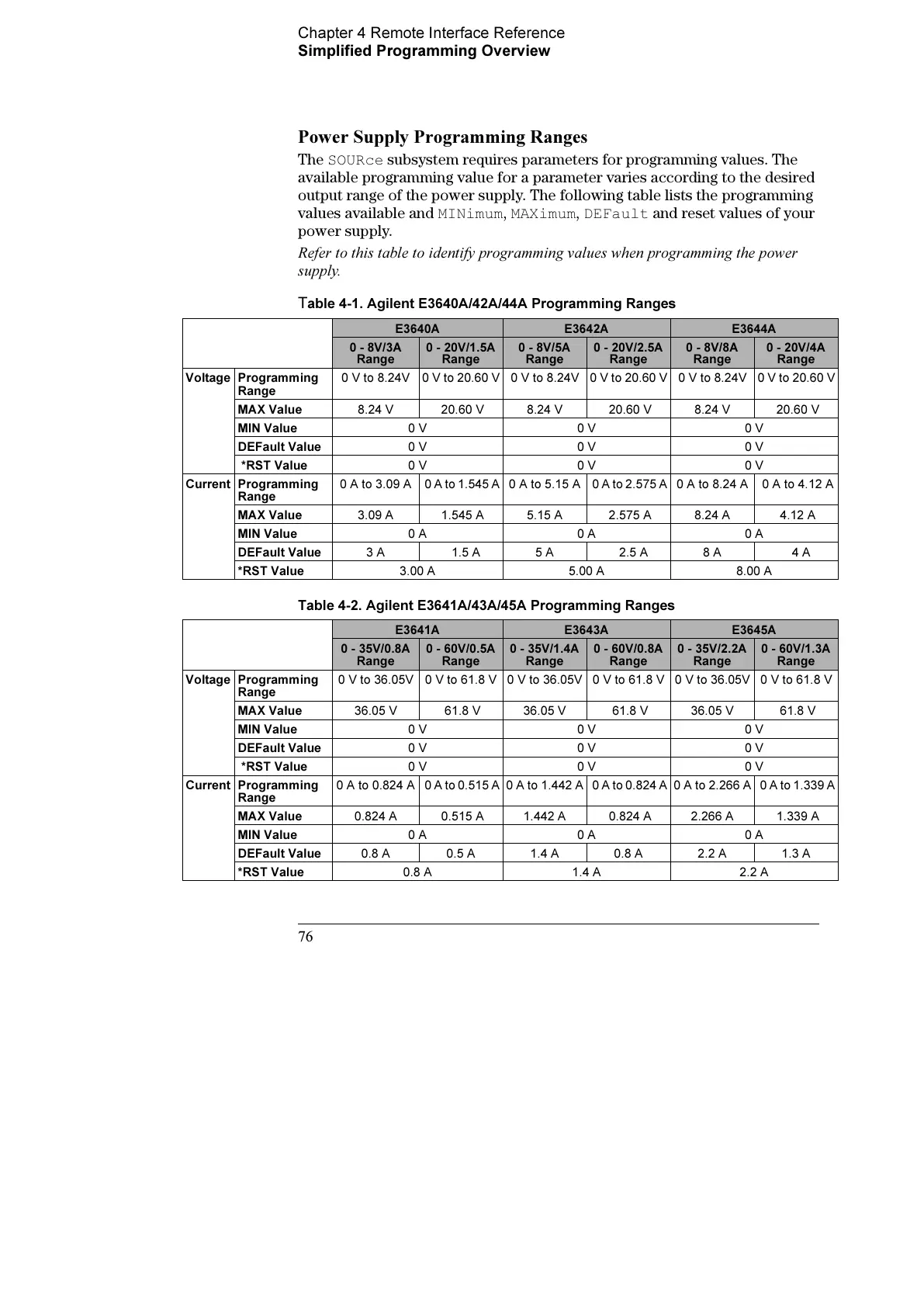

Chapter 4 Remote Interface Reference
Simplified Programming Overview
76
Power Supply Programming Ranges
The
SOURce
subsystem requires parameters for programming values. The
available programming value for a parameter varies according to the desired
output range of the power supply. The following table lists the programming
values available and
MINimum
,
MAXimum
,
DEFault
and reset values of your
power supply.
Refer to this table to identify programming values when programming the power
supply.
T
able 4-1. Agilent E3640A/42A/44A Programming Ranges
Table 4-2. Agilent E3641A/43A/45A Programming Ranges
E3640A E3642A E3644A
0 - 8V/3A
Range
0 - 20V/1.5A
Range
0 - 8V/5A
Range
0 - 20V/2.5A
Range
0 - 8V/8A
Range
0 - 20V/4A
Range
Voltage Programming
Range
0 V to 8.24V 0 V to 20.60 V 0 V to 8.24V 0 V to 20.60 V 0 V to 8.24V 0 V to 20.60 V
MAX Value 8.24 V 20.60 V 8.24 V 20.60 V 8.24 V 20.60 V
MIN Value 0 V 0 V 0 V
DEFault Value 0 V 0 V 0 V
*RST Value 0 V 0 V 0 V
Current Programming
Range
0 A to 3.09 A 0 A to 1.545 A 0 A to 5.15 A 0 A to 2.575 A 0 A to 8.24 A 0 A to 4.12 A
MAX Value 3.09 A 1.545 A 5.15 A 2.575 A 8.24 A 4.12 A
MIN Value 0 A 0 A 0 A
DEFault Value 3 A 1.5 A 5 A 2.5 A 8 A 4 A
*RST Value 3.00 A 5.00 A 8.00 A
E3641A E3643A E3645A
0 - 35V/0.8A
Range
0 - 60V/0.5A
Range
0 - 35V/1.4A
Range
0 - 60V/0.8A
Range
0 - 35V/2.2A
Range
0 - 60V/1.3A
Range
Voltage Programming
Range
0 V to 36.05V 0 V to 61.8 V 0 V to 36.05V 0 V to 61.8 V 0 V to 36.05V 0 V to 61.8 V
MAX Value 36.05 V 61.8 V 36.05 V 61.8 V 36.05 V 61.8 V
MIN Value 0 V 0 V 0 V
DEFault Value 0 V 0 V 0 V
*RST Value 0 V 0 V 0 V
Current Programming
Range
0 A to 0.824 A 0 A to 0.515 A 0 A to 1.442 A 0 A to 0.824 A 0 A to 2.266 A 0 A to 1.339 A
MAX Value 0.824 A 0.515 A 1.442 A 0.824 A 2.266 A 1.339 A
MIN Value 0 A 0 A 0 A
DEFault Value 0.8 A 0.5 A 1.4 A 0.8 A 2.2 A 1.3 A
*RST Value 0.8 A 1.4 A 2.2 A
