10
User’
s and
Service Guide
E4438C O
ption SP2
T
echnical Specification

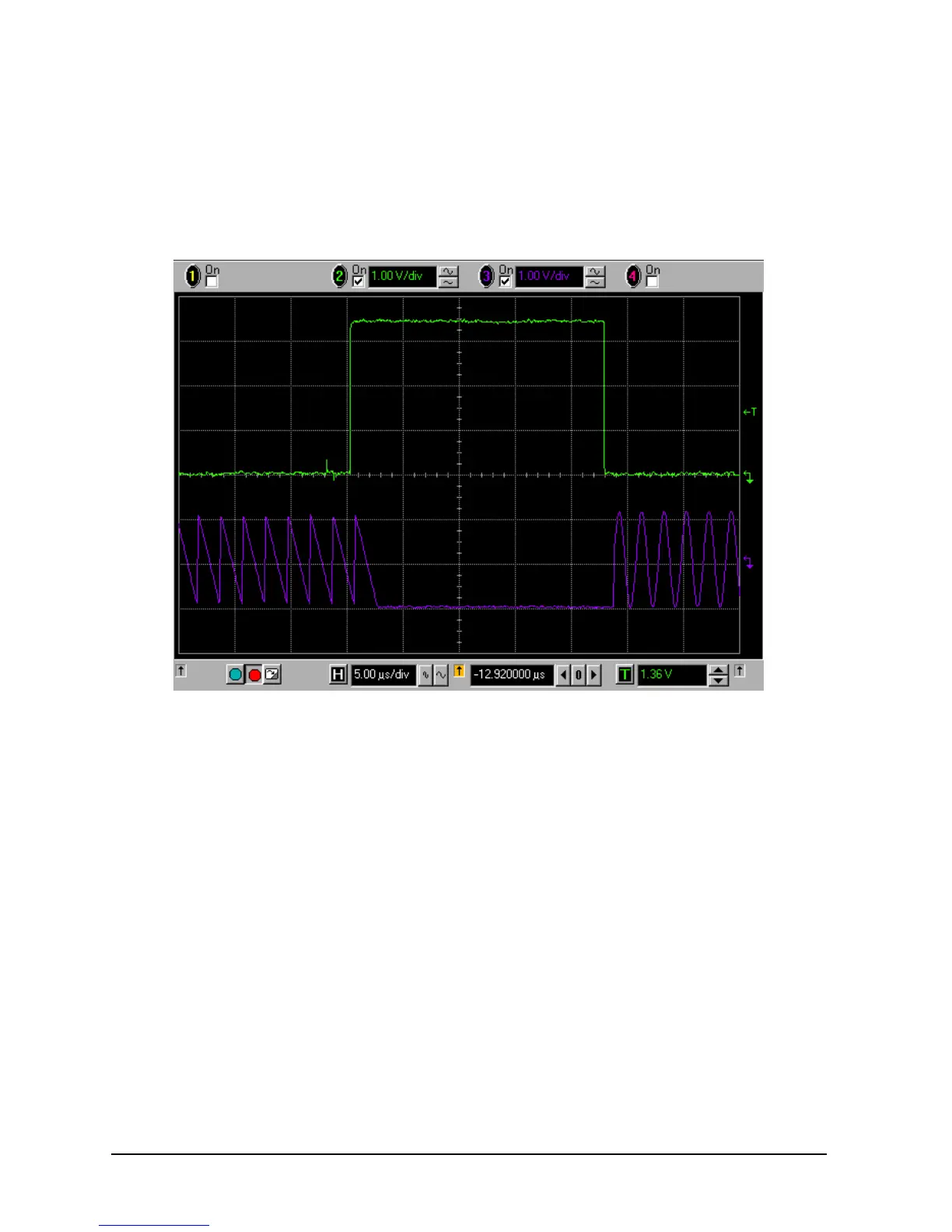

This is what should happen when the Trigger Pulse perio
d is adjusted:
Trigger Pul
se P
eriod = –2
2 µs
Segment Sizes
= 200 Sa (
2 µs)
17
19
Table of Contents
Table of Contents
7
E4438C Option SP2
9
Introduction
10
Linear Segment Switching
10
Dynamic Segment Switching
10
User Interface
11
Typeface Key Conventions
11
Keyboard and Display
11
SCPI Commands
13
Segment Order
13
Trigger Hold-Off
13
Technical Specification
14
Startup
14
External Segment Switch Continuous
14
External Segment Switch Continuous with Delays
15
External Segment Switch Continuous (Switched on Consecutive Segments)
15
AUX I/O Pinout
16
Segment Size Is too Small in Relation to the Trigger Signal
17
Safety and Regulatory Information
19
Introduction
19
Before Applying Power
19
Connector Care and Cleaning
19
Statement of Compliance
19
Declaration of Conformity
19
Shipping Instructions
19
Compliance with Canadian EMC Requirements
20
Compliance with German Noise Requirements
20
Warnings
21
Cautions
22
Instrument Markings
23
Contacting Agilent
24
Other manuals for Agilent Technologies E4438C
User Guide
700 pages
Programming Guide
366 pages
Manual
48 pages
Datasheet
40 pages
Configuration Guide
12 pages
Installation Note
18 pages
